10
english

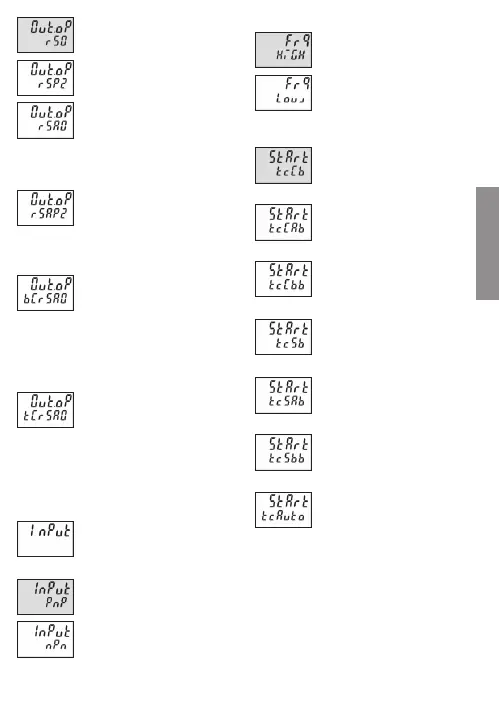

Adding count mode
Reset to zero
Subtracting count mode
Reset to the main preset
Adding count mode with
automatic reset
Automatic reset to zero when
main preset is reached, reset
to zero
Subtracting count mode
with automatic reset
Automatic reset to the main
preset when 0 is reached,
reset to the main preset
Adding count mode with
automatic reset and batch
counter
Automatic reset to zero when
main preset is reached, the
batch counter counts the num-
ber of times the main preset = 0
Adding count mode with
automatic reset and totalizer
Automatic reset to zero when
main preset is reached, the to-
talizer counts all counting
pulses of the main counter
6.8.4.2 Main menu for the signal and
control inputs
Main menu for programming
the signal and control inputs
Input polarity
PnP: switching to Plus
for all inputs in common
nPn: switching to 0 V
for all inputs in common
Filter for the signal inputs InpA and InpB
For electronic control of the sig-
nal inputs
For mechanical control of the
signal inputs (for control with
mechanical contacts)
Time measurement input mode
Start/Stop: pulse duration on
input B, cumulative measure-
ment
Start: edge on Inp A
Stop: edge on Inp B
cumulative measurement
Start: 1
st
edge on Inp B
Stop: 2
nd
edge on Inp B
cumulative measurement
Start/Stop: pulse duration on
input B,
single pulse measurement
Start: edge on Inp A
Stop: edge on Inp B
single pulse measurement
Start: 1
st
edge on Inp B
Stop: 2
nd
edge on Inp
single pulse measurement
The timer is reset by means of
a RESET (to zero when
adding, to preset 2 when sub-
tracting) and then starts count-
ing again. Time counting is
stopped with adding opera-
tions when preset 2 is
reached, with subtracting op-
erations when zero is reached.
A RESET during the timing
process also causes it to stop.
Inp A and Inp B have no func-
tion. (Only for the output oper-
ations adding or subtracting
count.
