5
3.
In order to avoid the risk of short circuit, please cut down
connection with negative (-) of battery, then connect with radio.
4.

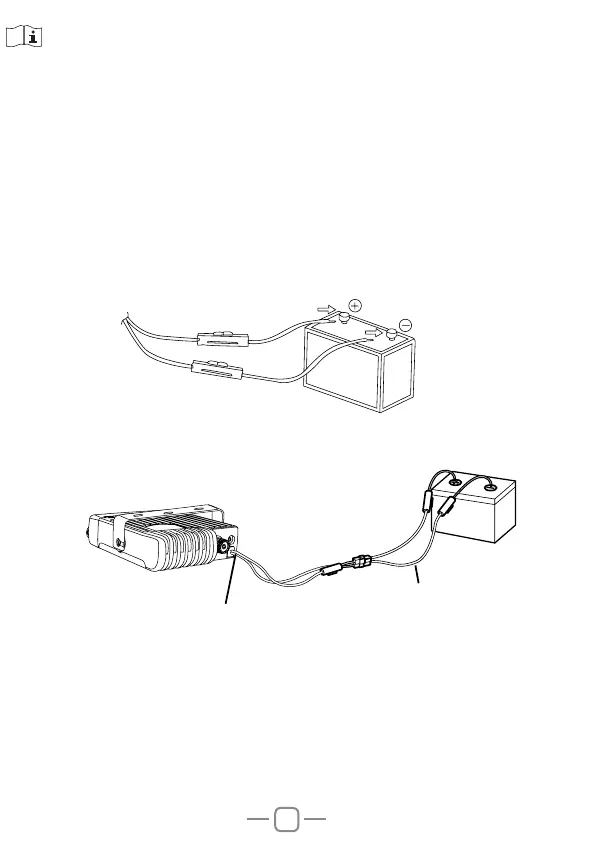

Confirm the correct polarity of the connections, then attach
the power cable to the battery terminals; red connects to the
positive (+) terminal and black connects to the negative (-)
terminal.
• Use the full length of the cable without cutting off excess even if the
cable is longer than required. In particular, never remove the fuse
holders from the cable.
5.
Reconnect any wiring removed from the negative terminal.
Red
Black
Ext. Power jack
DC power cable
E
X
T
S
P
A
N
T
