CRT Space-U - Fixed Station Operation; Connecting to a Regulated Power Supply

6
In order to use this transceiver for fixed station operation, you will
need a separate 13.8V DC power supply (not included), Please contact local dealer
Please contact local dealer to require.
The recommended current capacity of your power supply is 10A.
1.
Connect the DC power cable
and ensure that the polarities are correct. (Red: positive, Black:
negative).
• Do not directly connect the transceiver to an AC outlet.
• Use
the supplied DC power cable to connect the transceiver to a
regulated power supply.
• Do not substitute a cable with smaller gauge wires.

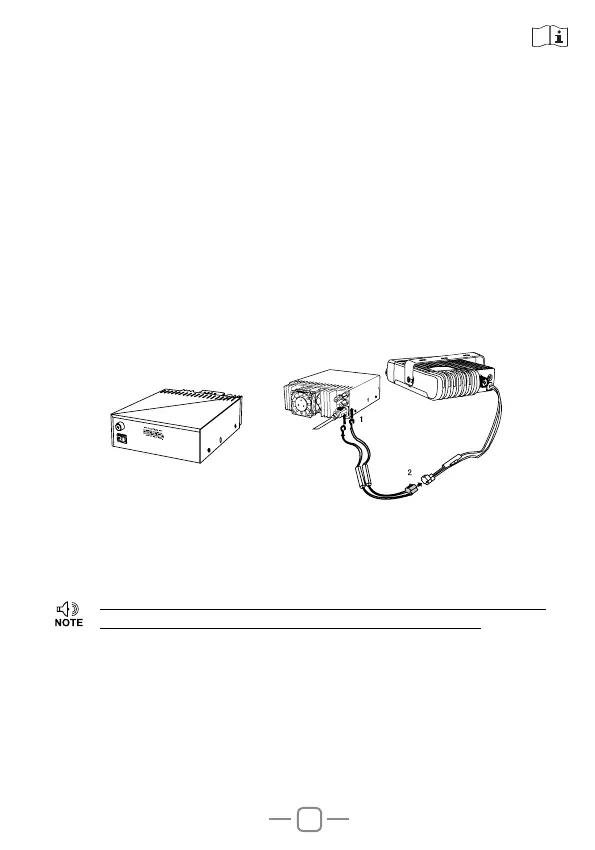

Fixed Station Operation
Regulated power supply
DC
power cable with fuse holder
Regulated
power
supply
(QRP-01)
2.
Connect the transceiver's DC power connector to the connector
on the DC power cable.
»
Press the connectors rmly together until the locking tab clicks.
»
Before connecting the DC power to the transceiver, be sure to
switch the transceiver and the DC power supply OFF.
EX
T
S
P
A
N
T
Black
Red
