2. Install the throttle cable hub into the throttle
cable retaining clip and secure with the cable
clip.
3. Thread the ball joint clevis onto the throttle cable
as far as necessary to line up the ball joint stud
mounted on the TCP throttle arm. The TCP
arm should be on the idle stop by its own return
spring pressure with no additional pressure
supplied by the throttle cable. Tighten the clevis
jam nut when positioned correctly.
CABLE
CLIP
BALL JOINT
LUBRICATION
POINTS

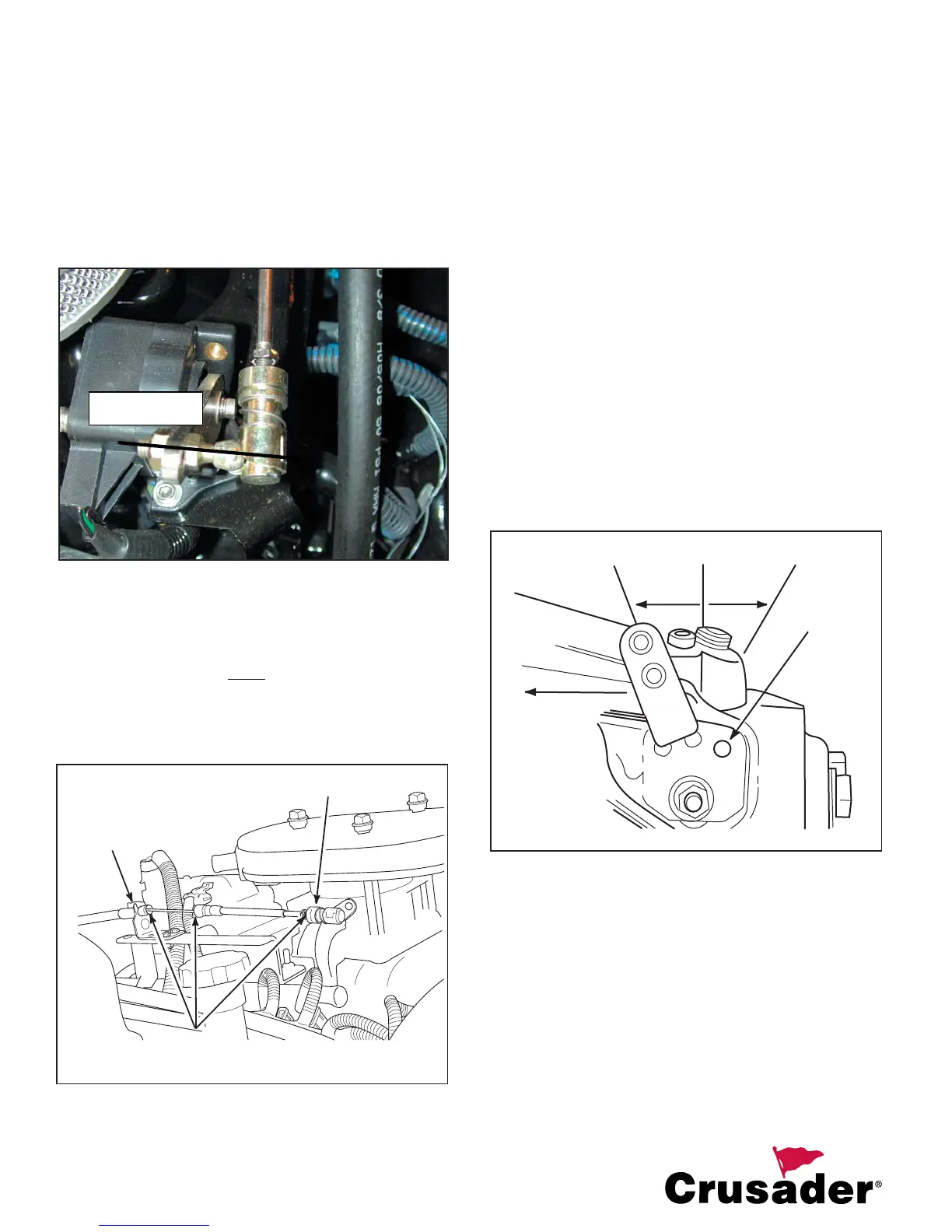

Figure 42 Typical Throttle Cable Installation
Attaching/Adjusting Shift Cable - Velvet Drive
In-Line and V-Drive Models
IMPORTANT: Velvet Drive Transmission Warranty
is jeopardized if the shift lever poppet ball or
spring is permanently removed, if the shift lever
is repositioned or changed in any manner or if
the linkage between the remote control and the
transmission shift lever does not have suffi cient
travel in both directions.
1. Place the remote control shift lever and
transmission shift lever in neutral position.
2. Install the shift cable hub onto the shift cable
retaining bracket and lock the cable clip.
3. Thread the clevis pin onto the shift cable until
the clevis lines up with the stud attached on the
transmission shift lever.
4. Retract the spring lock on the clevis pin and
attach the shift cable to the ball joint stud.
5. Place the remote control lever in the forward
gear position and check the transmission shift
lever position. Lever must be positioned as
shown for full engagement.
Figure 43 Shift Lever Positions - Standard Velvet Drive
TOWARD
FLYWHEEL
FOR
FORWARD
POPPET
BALL
F
N
R
4. Retract the spring lock on the clevis pin and
attach the throttle cable to the ball joint stud.
5. Place the remote control throttle lever in the full
throttle position. The TCP arm should be near
or just touch the WOT stop of the TCP bracket.
IMPORTANT: It is not necessary for the arm to
touch the bracket stop to achieve 100% throttle.
Check the throttle cable and TCP linkage for any
binding. Return the throttle lever to the neutral
or idle position.
Pivot and Clip should be
centered so no tension is
placed on the bracket.
6. Place the remote control lever in the reverse
gear position and check transmission shift lever
position. The lever must be positioned as shown
for full engagement.
7. If the transmission shift lever is positioned
properly in one gear but no the other, recheck
the shift cable adjustment. If the transmission
shift lever is not properly positioned in either
gear, readjust the shift cable and recheck for
correct shift engagement. If correct positioning
is still not achieved, the remote control does
not provide suffi cient shift travel and must be
replaced.
