5. Place the remote control shift lever in the forward
gear position and check the transmission shift
lever position. Lever must be positioned as
shown for full engagement.
6. Place the remote control shift lever in the reverse
gear position and check the transmission shift
lever position. Lever must be positioned as
shown for full engagement.
7. If the transmission shift lever is positioned
properly in one gear, but not the other, recheck
the shift cable adjustment. Readjust the shift
cable and recheck for correct shift engagement.
NOTICE: If correct positioning is still not achieved, the
remote control does not provide suffi cient shift travel and
must be replaced.
8. Shift the remote control lever from forward to
reverse and make sure cable moves freely and
no binding occurs.

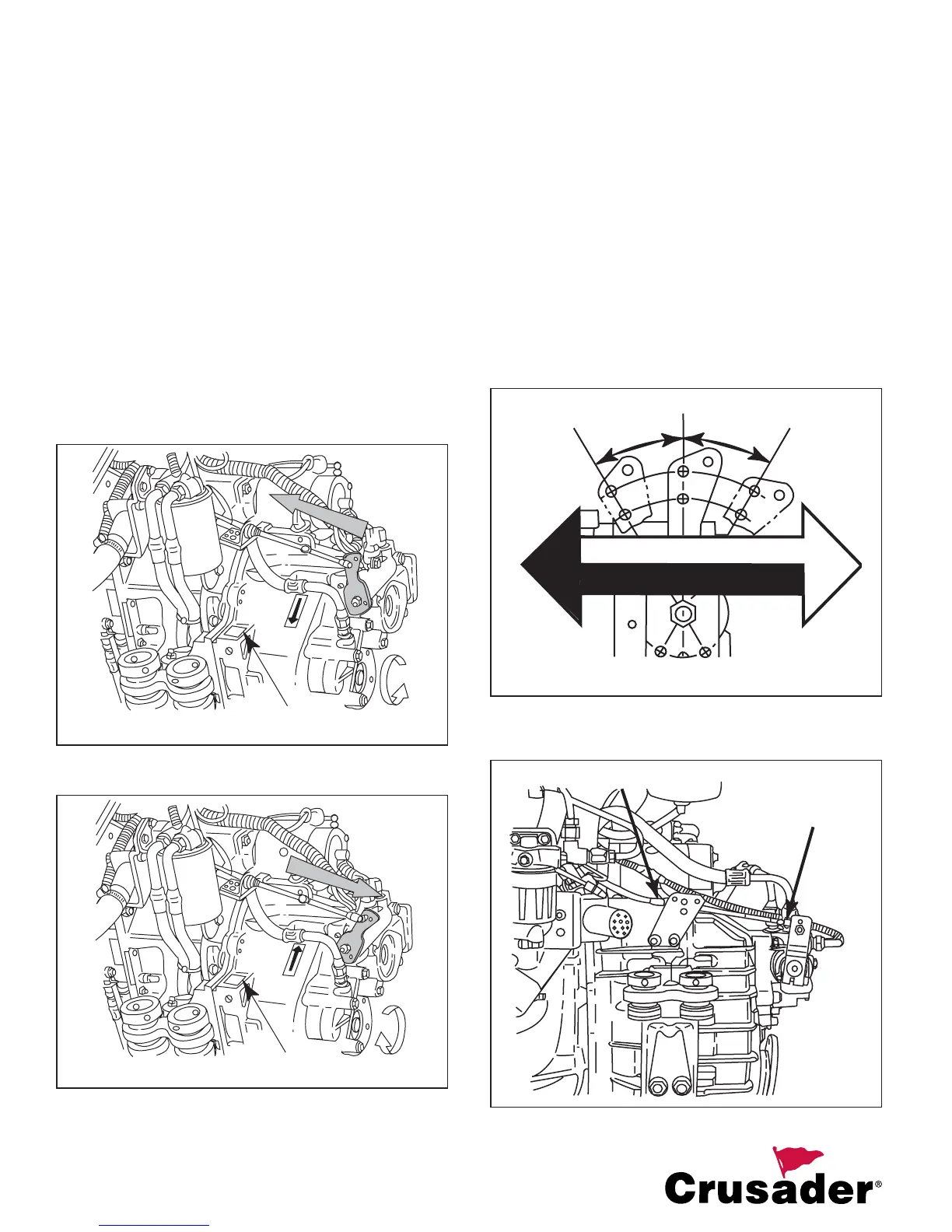

Figure 48 Forward Gear - LH Prop Shaft Rotation -
Velvet Drive 5000
Figure 49 Forward Gear - RH Prop Shaft Rotation -
Velvet Drive 5000
Attaching/Adjusting Shift Cable - Hurth 630
Series Transmissions
These model transmissions are full reversing
transmissions. Rotation of the output fl ange and
propeller shaft is determined by the hookup of the shift
cable at the remote control before starting the installation
and adjustment procedures.
For left-hand (LH) shaft rotation - the transmission shift
lever must move AWAY the engine (fl ywheel) when
the remote control shift handle is placed in the forward
position.
For right-hand (RH) shaft rotation - the transmission shift
lever must move TOWARD from the engine (fl ywheel)
when the remote control shift handle is placed in the
forward position.
Figure 50 Hurth Shift Lever Movement vs. Output
Flange Rotation
Figure 51 Shift Cable Installation - Hurth
LHRH
FORWARD
GEAR
FORWARD
GEAR
RH PROP SHAFT ROTATION
LH PROP SHAFT ROTATION
HURTH
TRANSMISSIONS
CABLE CLIP
BALL
JOINT
IDENTIFICATION
LABEL
IDENTIFICATION
LABEL
