Chapter 4. SNMP

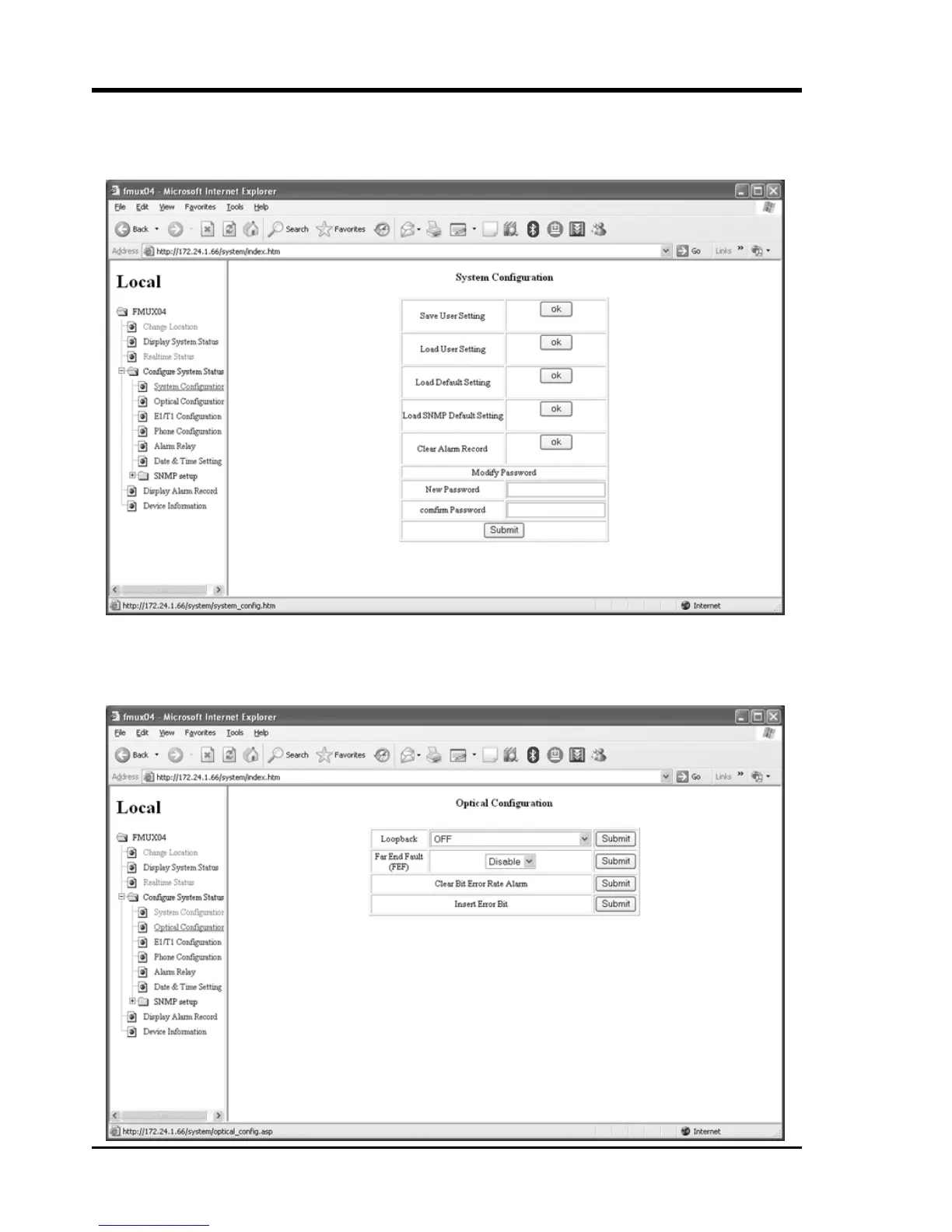

4.8.5 System Configuration
The System Configuration page is used to save
and load user settings, load default settings,
clear the alarm buffer record and change
the login password. (refer to 3.5.2.1)
4.8.6 Optical Configuration
The Optical Configuration page allows enab
ling the FEF function, clearing the BER Alarm
and setting the optical loop backs. (refer to 3.5.2.2)
48
47
49
