Chapter 4. SNMP

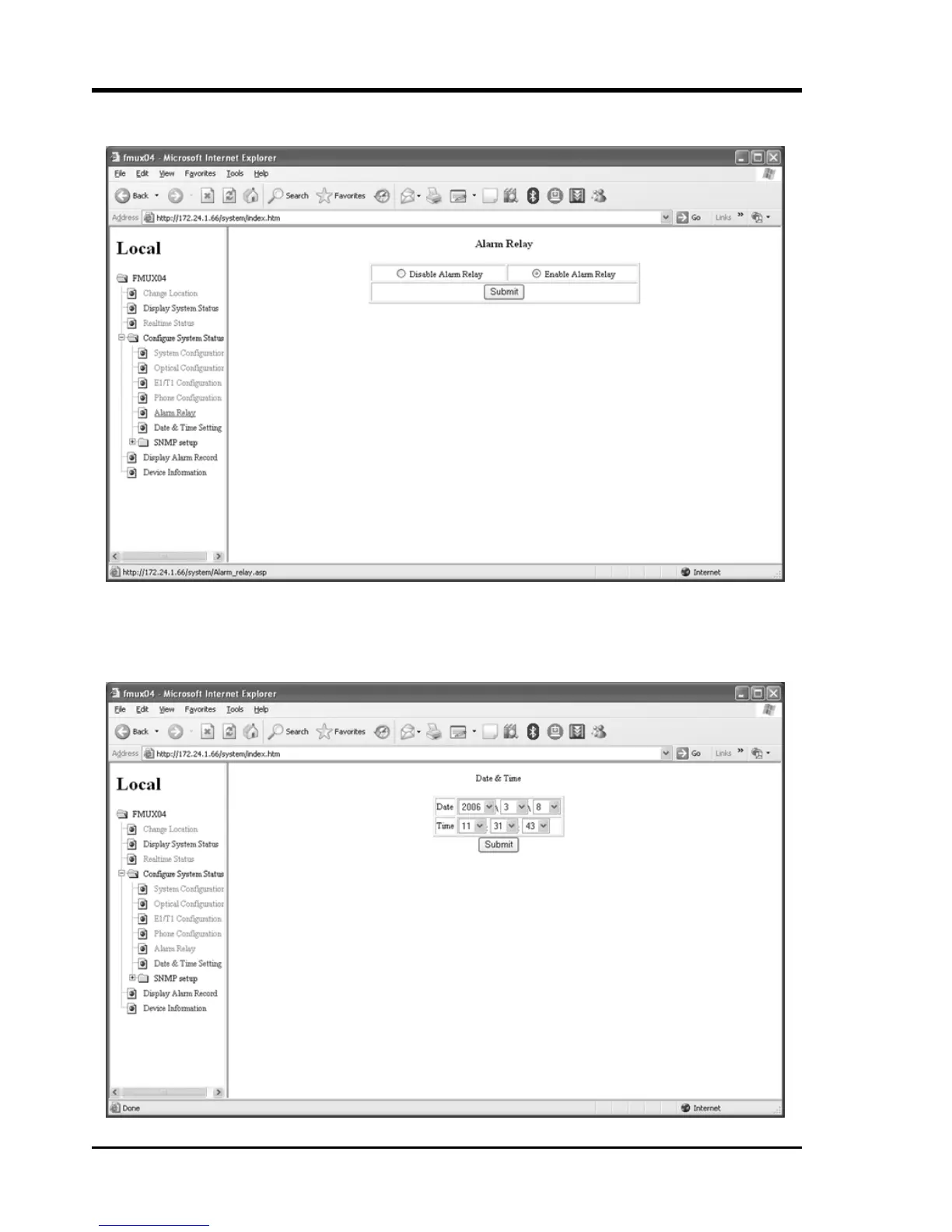

4.8.9 A
larm Configuration
The Alarm Relay page allows enabling or disabli
ng the alarm relay function. (refer to 3.5.2.5)
4.8.10 Date & Time
The Date & Time page allow setting the real tim
e clock. The clock is
used for timestamping
alarm and performance data. (refer to 3.5.2.6)
