Chapter 4. SNMP

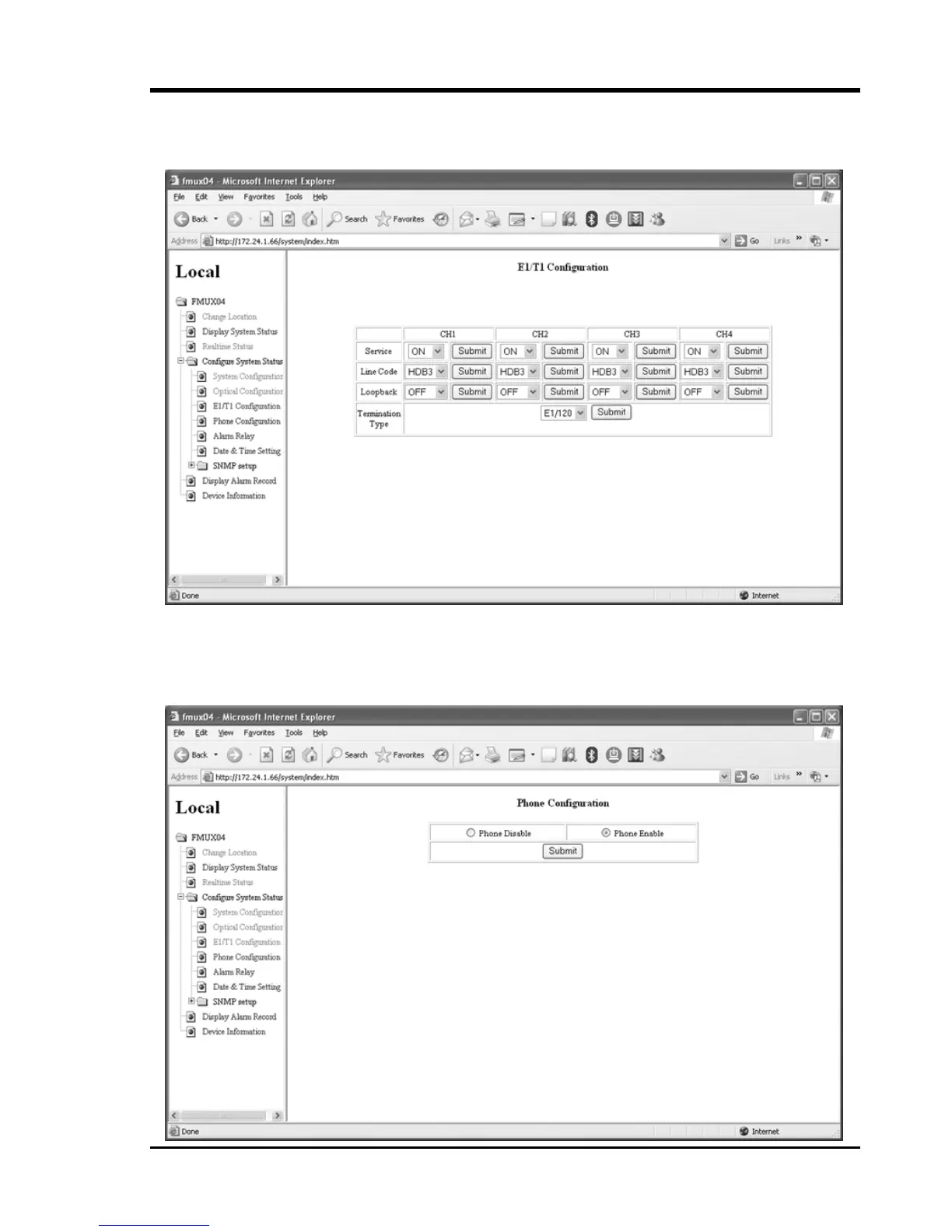

4.8.7 E1/T1 Configuration
The E1/T1 configuration page sets the channel se
rvice, line code and termination type for the
E1/T1. It also sets the loop back types (see 3.5.2.3).
4.8.8 Phone Configuration
The Phone Configuration allows enabling or di
sabling the phone function, if the order wire
phone option is installed. (refer to 3.5.2.4)
