Battery Pack and Charger
119
1b. Disconnect the battery pack’s positive lead from
the contactor assembly using a 7/16” wrench.
See Figure 6.6.
2. Disconnect the seat switch.
3. Remove the two nuts that secure the seat bracket to
the mower using a 1/2” wrench.
See Figure 6.8.
4. Lift the seat and seat bracket off of the mower.

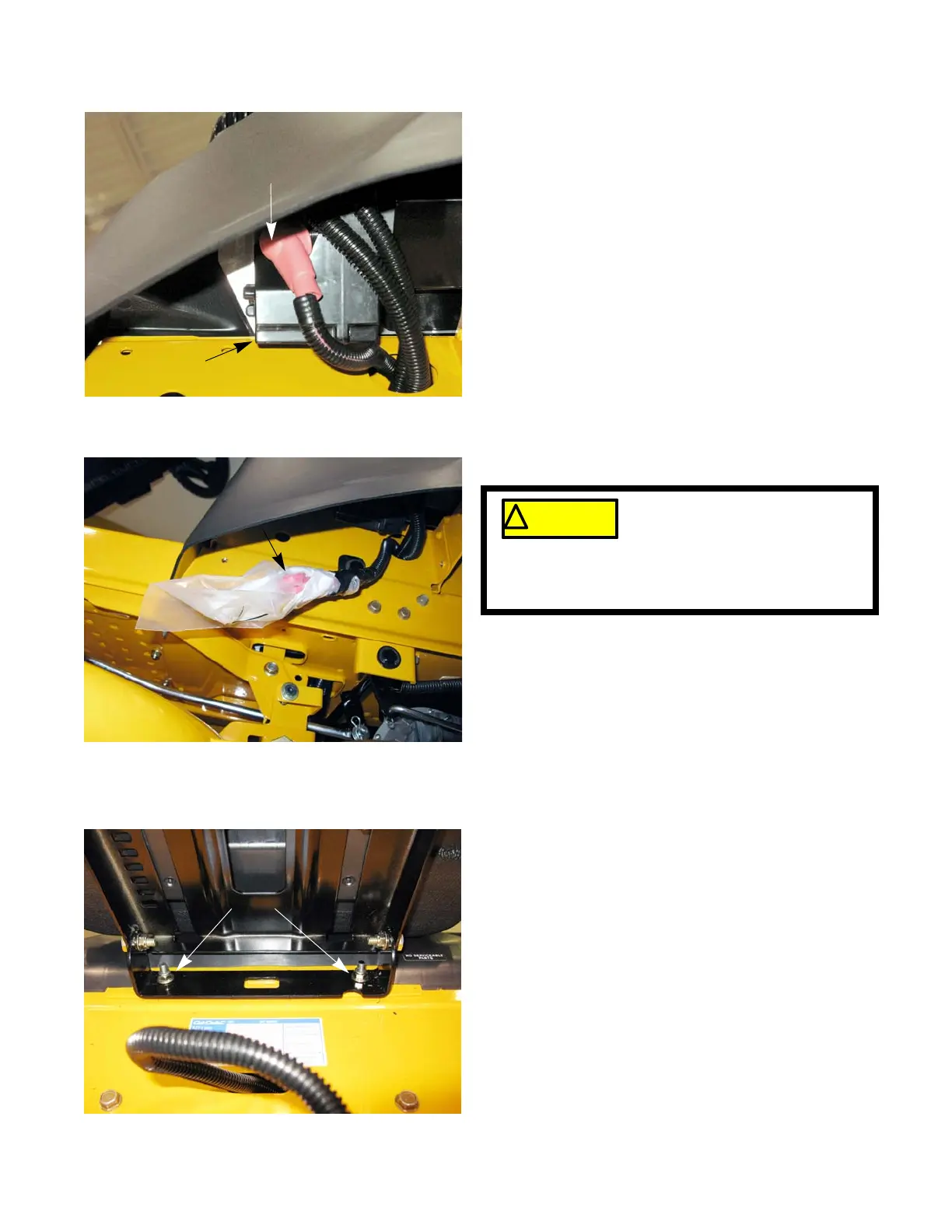

Figure 6.6
Contactor assembly
Positive lead
The battery pack’s positive lead is
still hot. Take measures, such as
taping up the cable lug with electri-
cal tape or a plastic bag, to prevent the cable
end from making contact with any metal sur-
face on the mower. See Figure 6.7.
