RZT-S Zero
126

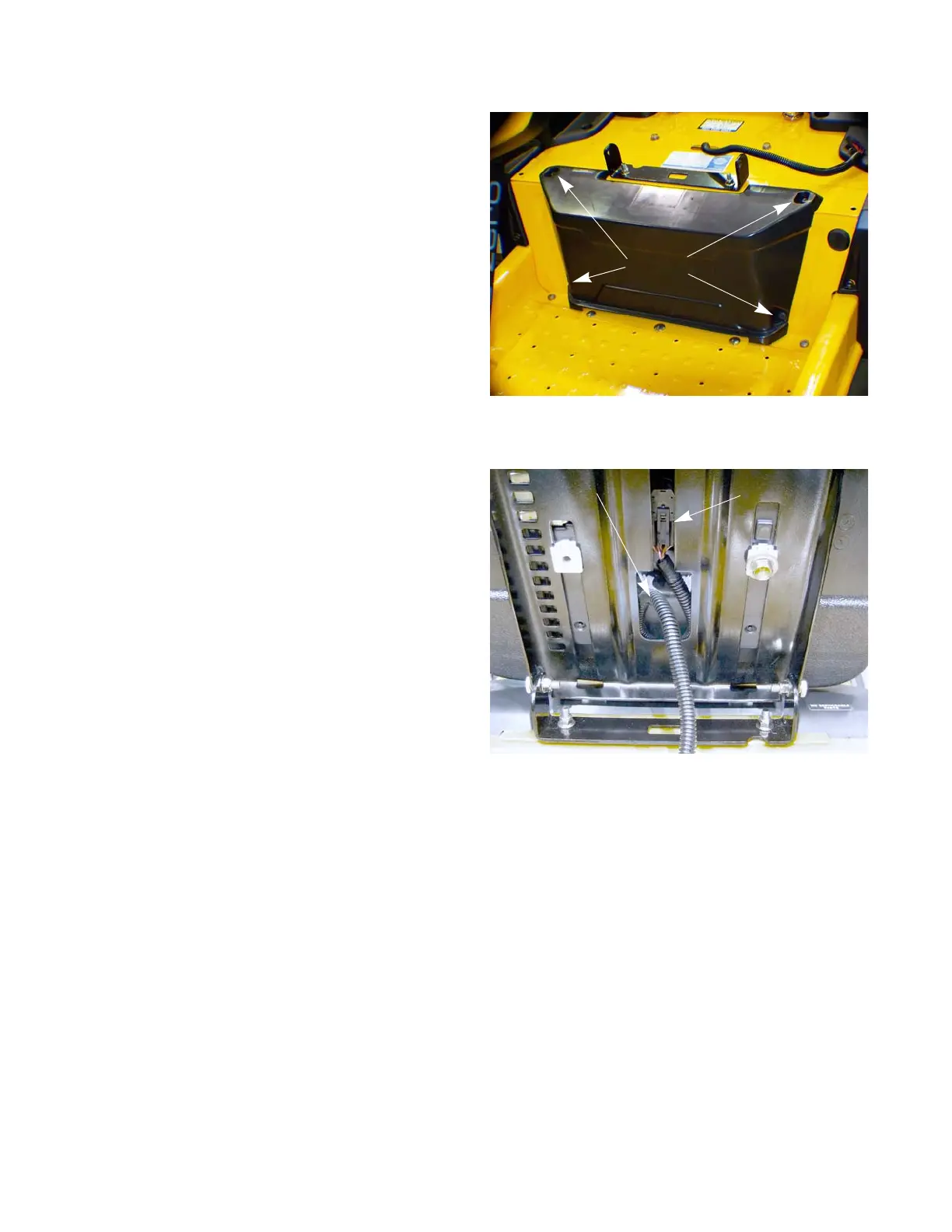

19. Install the front cover using the four black shoulder
screws.
20. Install the seat: See Figure 6.24.
20a. Set the seat and seat bracket over the studs in
the seat box.
20b. Install the two nuts that secure the seat
bracket to the mower using a 1/2” wrench.
20c. Run the seat switch harness through the slot
in the seat bracket.
20d. Plug the seat switch harness into the seat
switch.
NOTE: Push the excess wire from the wire harness
into the seat box hole.
21. Charge the batteries.
22. Test drive the mower after the batteries have been
fully charged.
NOTE: Check all safety and control features. Do not
put an unsafe mower in to service.
Figure 6.24
Seat switch harness
Seat switch
