Battery Pack and Charger
125

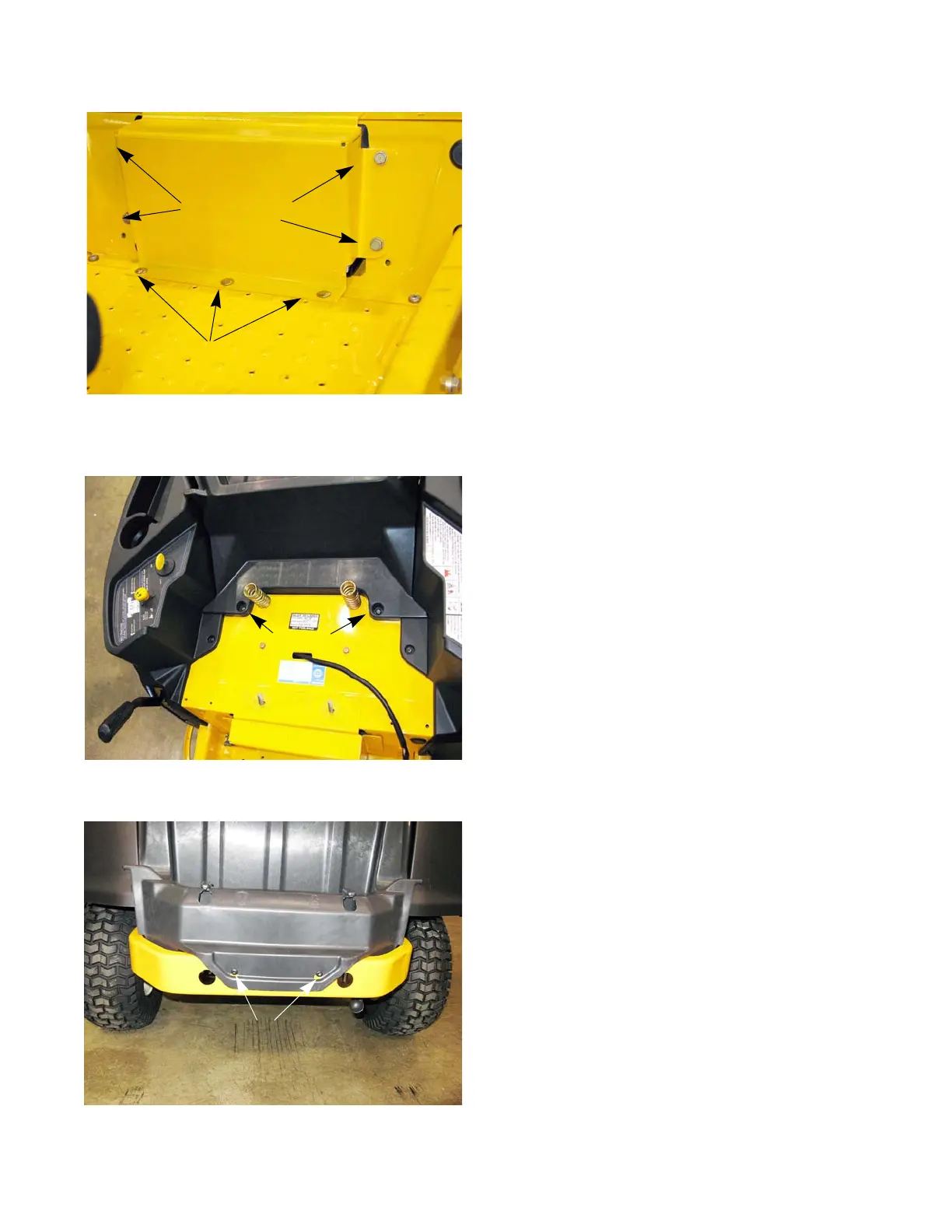

17. Install the front bracket: See Figure 6.24.
17a. Lower the mowing deck to its lowest setting.
17b. Slide the front bracket over the two studs for the
seat bracket.
17c. Install the four self tapping screws using a 1/2”
wrench.
17d. Install the three carriage bolts.
17e. Install the lock nuts onto the carriage bolts from
the underside of the mower.
18. Install the rear battery cover:
18a. Install the two screws at the front of the rear
battery cover using T-30 torx driver.
See Figure 6.25.
18b. Install the two nuts and screws that hold the
rear of the battery cover in place using a T-30
torx driver and a 7/16” wrench.
See Figure 6.26.
Figure 6.24
Carriage bolts
Self tapping
screws
To Next Page
