Cub Cadet RZT-S Zero Shop Manual

RZT-S Zero
124
9. Insert the battery terminals cover into the slot in the
battery tray.
NOTE: There is a notch in the cover to allow the
battery cables to pass through it. This notch
should be at the bottom, on the right hand
side.
See Figure 6.21.
10. Attach top tray using the two long J-bolts.
11. Install the hex flange lock nuts on the J-bolts.
Tighten them to a torque of 160 - 200 in lbs (18 - 22
Nm).
12. Place the 4
th
battery on its side, with the terminals
facing up, on the floor board in front of the seat box
assembly.
See Figure 6.22.
13. Connect the wire with the blue tape (from the 3
rd
battery) to the positive terminal 4
th
battery.
NOTE: In order for the battery to fit properly, the
leads must be oriented towards the center of
the battery when attached to the battery.
See Figure 6.22.
14. Connect the black wire from under left pod to the
negative terminal on 4
th
battery.
15. Verify the battery cable connections:
See Figure 6.23.
• Set a DMM to read DC volts.
• Touch the positive probe to the positive termi-
nal of battery number 1.
• Touch the negative probe to the negative termi-
nal of battery number 4.
• The DMM should read 48 volts or more.
NOTE: If the reading is lower than 48 volt, check the
battery connections.
16. Slide the battery into place.
NOTE: Do not allow the battery cables to get
pinched or hooked on the deck lift links.

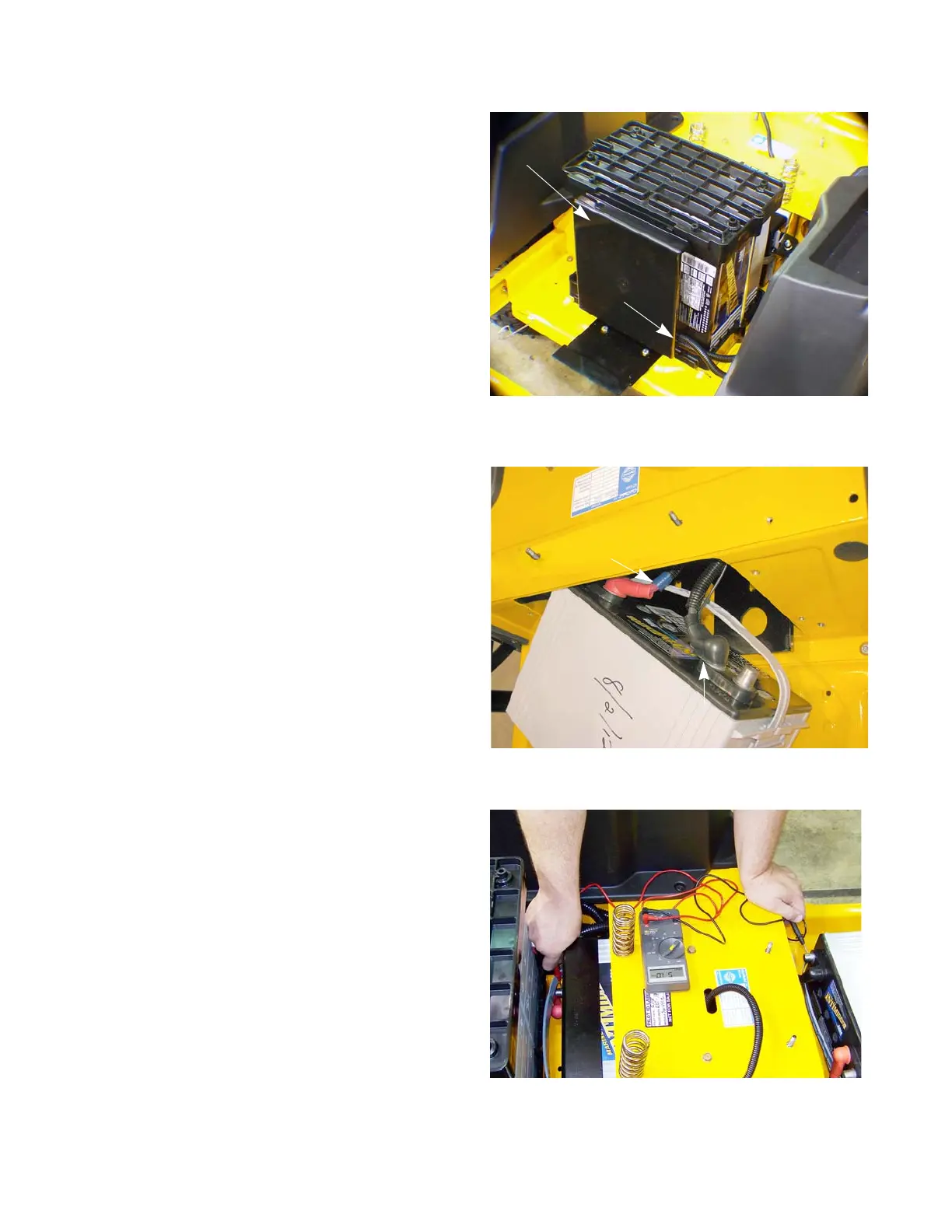

Figure 6.21
Battery terminals
cover
Notch
Figure 6.22
Blue
Black
4
Figure 6.23
