RZT-S Zero
A6
21a. Insert 1
st
battery under seat box so that the
terminals are down and facing the rear of trac
-
tor. See Figure 14.
21b. Connect the red wire with the fuse attached to
it, from under left pod, to the positive terminal
of 1
st
battery. See Figure 15.
21c. Tighten the terminal nut to a torque of 120 -
180 in lbs (14 - 20 Nm).
NOTE: Lightly coating the battery cable lugs with
petroleum jelly will help prevent corrosion of
the battery connections.
NOTE: Wipe any petroleum jelly off of the terminal
studs before installing the nut.
21d. Attach bracket that holds 1
st
battery in place:
• Remove the metal battery bracket from the
cardboard box.
• Remove the two short J-bolts from the card-
board box.
• Hook the J-bolts into the holes in the frame.
• Slide the bracket onto the battery and the J-
bolts.
• Install the hex flange lock nuts on the J-bolts.
Tighten them to a torque of 160 - 200 in lbs (18
- 22 Nm). See Figure 16.

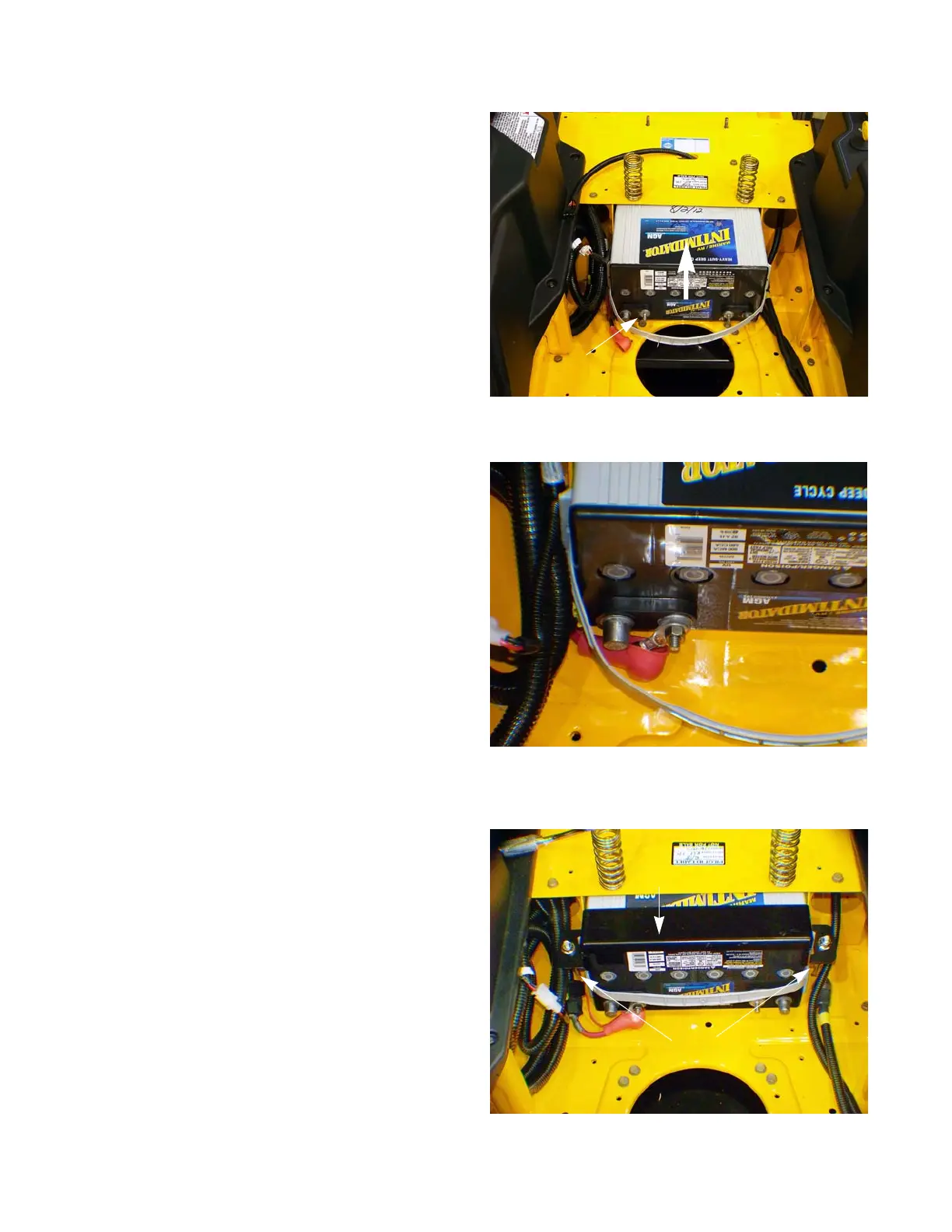

Figure 14
Positive
terminal
Figure 15
Positive terminal
Figure 16
Battery bracket
J-bolts
