Cub Cadet RZT-S Zero Shop Manual

RZT-S Zero
62
• PTO switch
: There is a standard PTO switch
mounted in the right pod. The switch is used to
send a signal to the VCM to turn the deck on or
off. See Figure 5.13.
NOTE: A red wire with a white trace splits and car-
ries 5 volts to the “B” and “C” terminals of the
PTO switch. A black wire with a white trace
and a white wire with a black trace carry the
input signals back to the VCM.
• Battery pack: The battery pack will be covered
in Chapter 6: Batteries.

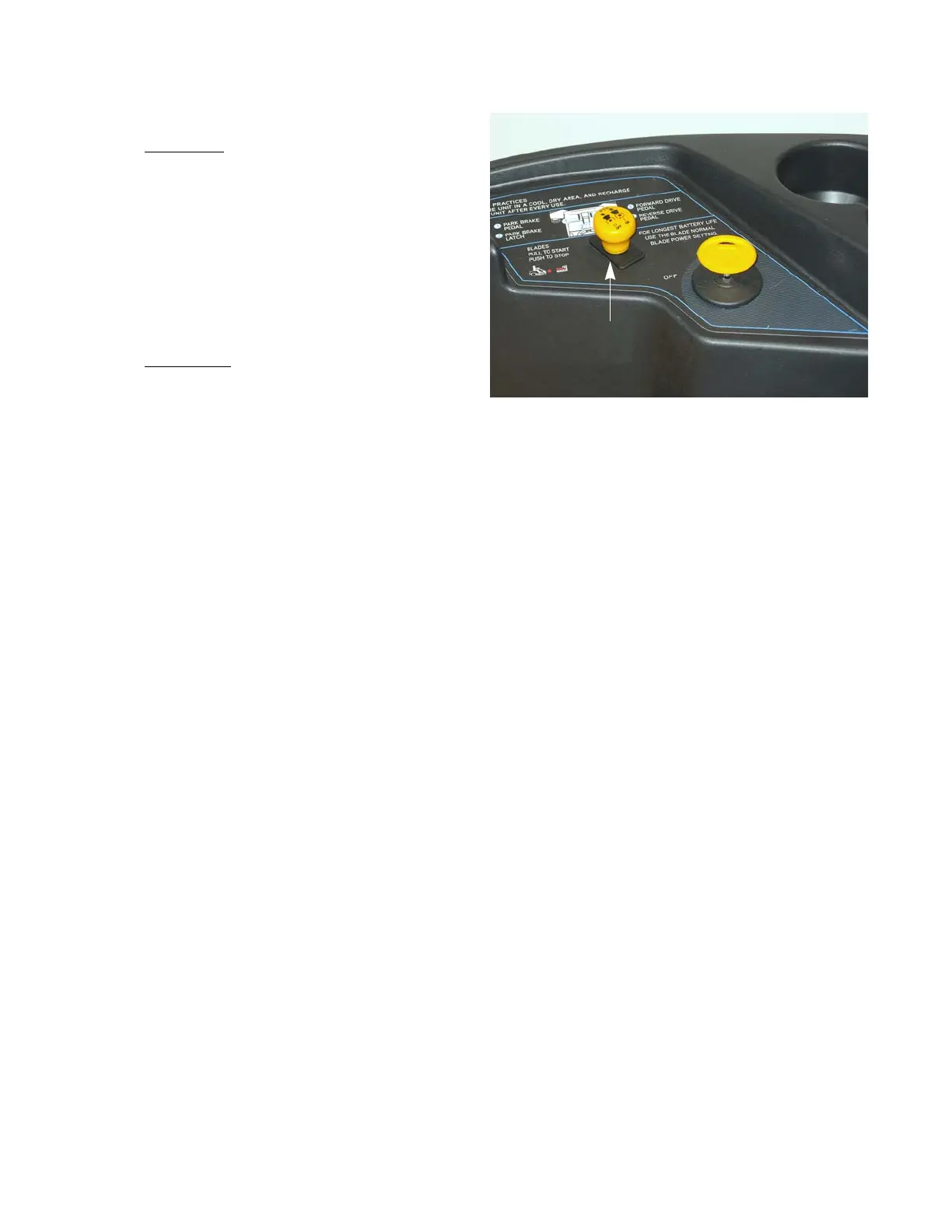

Figure 5.13
PTO switch
