10. Remove the four screws (two on each side), securing
the seat box to the cross member using a 1/2”
wrench. See Figure 3.17.
11. Remove the four screws (two on each side), that hold
the seat box to the frame using a 1/2” wrench.
See Figure 3.18.
12. Remove the two screws (one on each side), that hold
the cross member to the frame
NOTE: The cross member can be left in place.
13. Remove the three pan head screws indicated by the
arrows in Figure 3.19, that hold the front of the seat
box to the frame using a T-30 torx driver.
14. Fish the wiring harness out of the seat box.
15. Lift the seat box assembly off of the mower.
16. Install the seat box by reversing the previous steps.
17. Test drive the mower in a safe area before returning
it to service.
NOTE: Confirm that all safety and control features work
correctly. Do Not return an unsafe mower to ser-
vice.

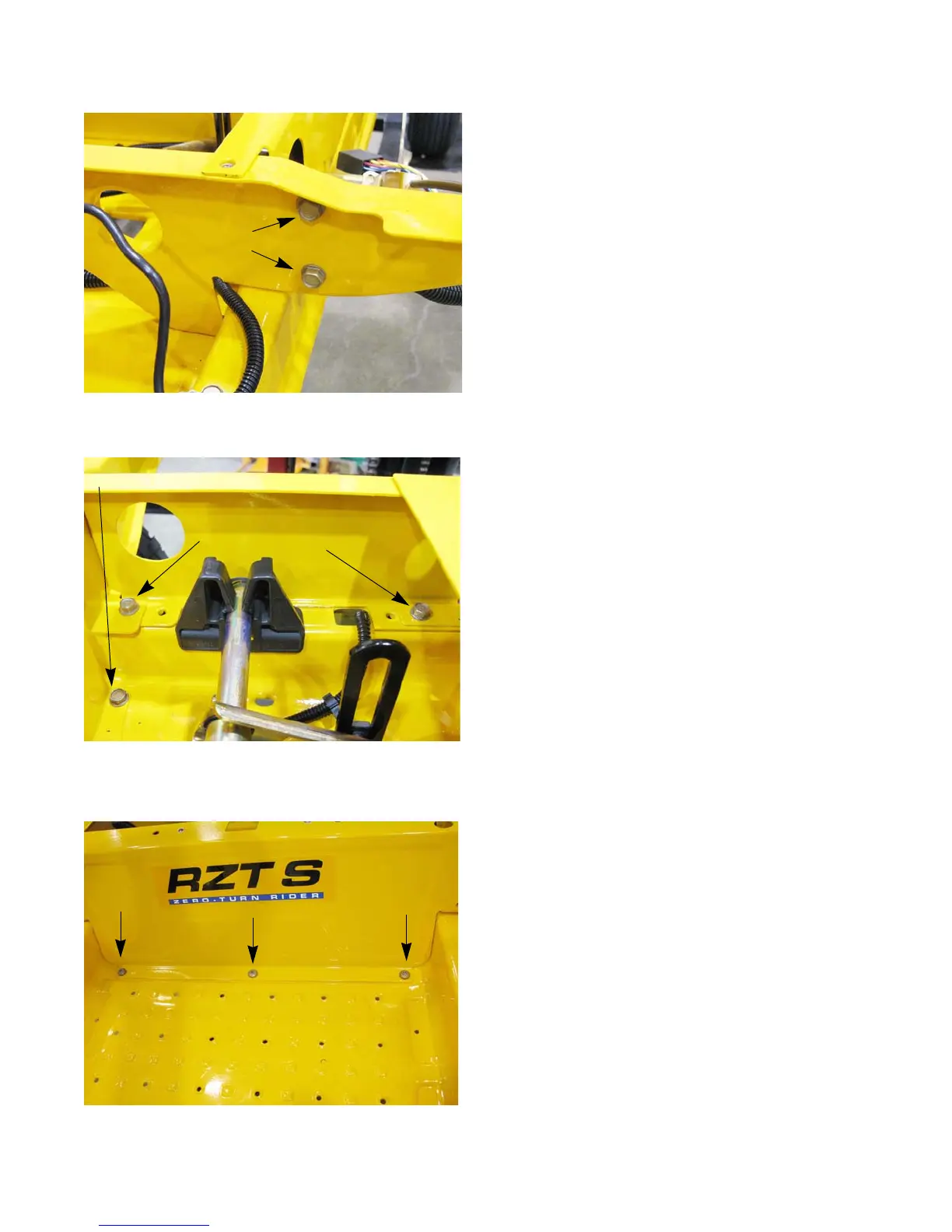

Figure 3.17
Screws
Figure 3.18
Seat box screws
Cross member screw
Figure 3.19
