8. Remove the nut and bolt that holds the front of the
transmission to the mounting bracket using a pair of
1/2” wrenches. See Figure 4.27.
9. Remove the nut, T-bolt and spacer that connect the
transmissions to each other using a 1/2” wrench
and an 11/16” wrench. See Figure 4.28.
10. Remove the bolt holding the rear of the transmis-
sion to the rear transmission mounting bracket
using a 5/8” wrench and an 11/16” wrench.
See Figure 4.29.

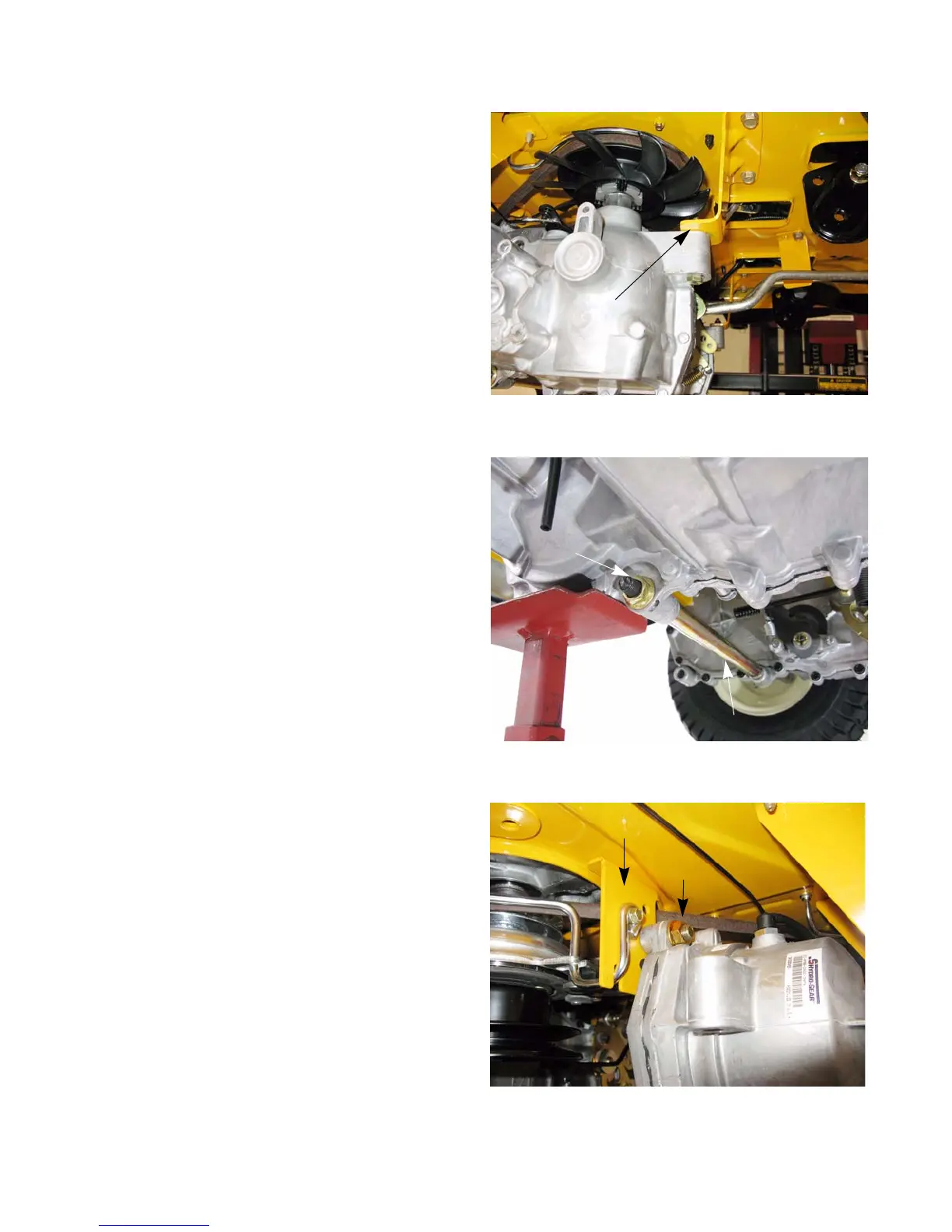

Figure 4.27
Mounting bracket
Figure 4.28
Nut
Spacer
Figure 4.29
Mounting bracket
Bolt
