Brakes and Drive System
37
11. Remove the bowtie clip that secures the bypass rod
to the by-pass arm. See Figure 4.30.
12. Slide the bypass rod off of the bypass arm.
13. Support the transmission to prevent it from falling
while the mounting bolts are removed.
14. Remove the two bolts that fasten the transmission to
the frame. See Figure 4.31.
15. Lower the transmission enough to slip the belt off of
the transmission pulley. See Figure 4.32.
16. Remove the transmission from the mower.
17. Install the transmission by following the previous
steps in reverse order.
NOTE: Before lowering the mower to the ground purge the
transmission.
18. Perform a neutral adjustment and wheel alignment by
following the steps described in 5: Steering.
19. Test drive the mower before returning it to service.

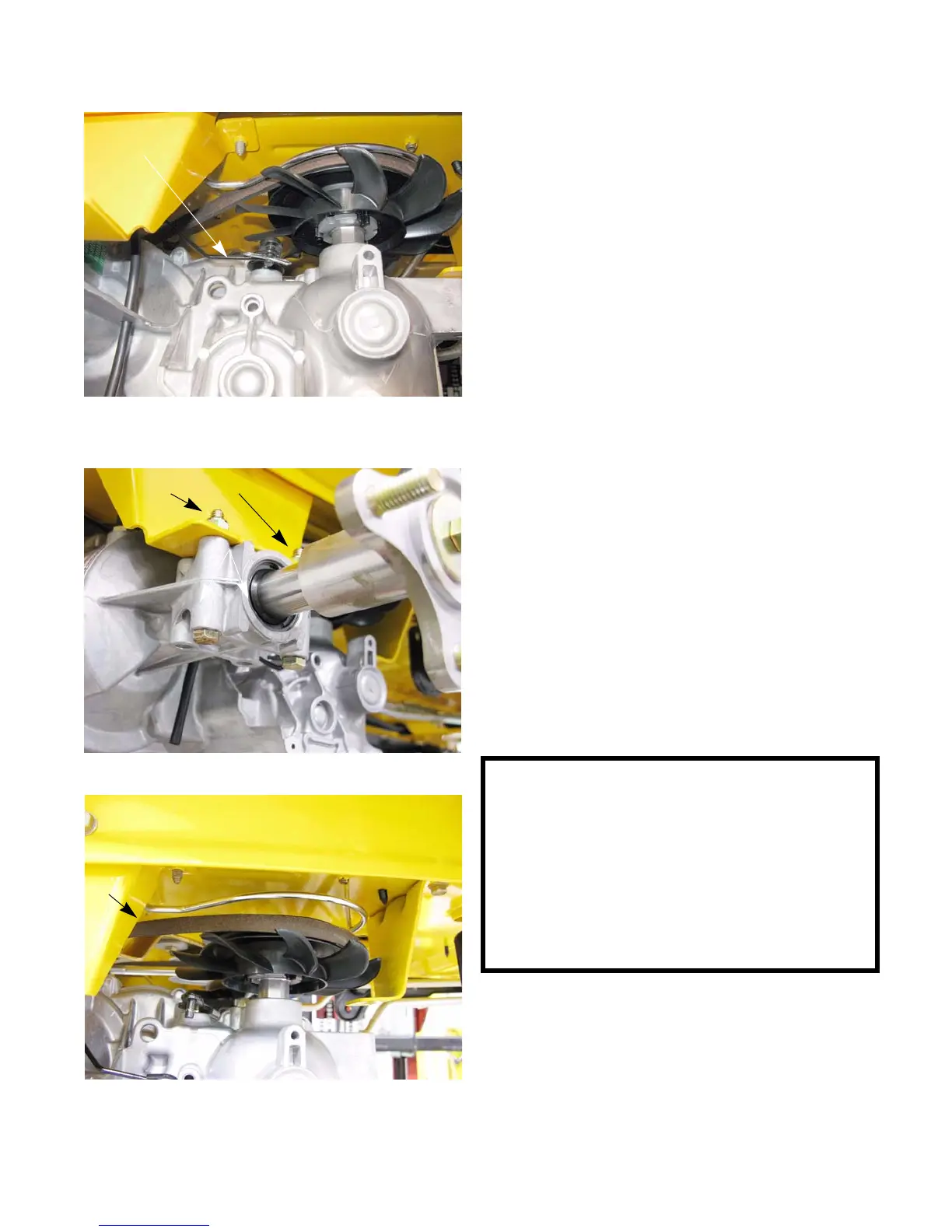

Figure 4.30
Bypass rod
Figure 4.31
Transmission bolts
Figure 4.32
Belt
Purge procedure
• Move the bypass rod to the by-pass position.
• Start the engine.
• Cycle the drive pedal from full forward to full
reverse six times.
• Move the bypass rod to the drive position.
• Cycle the drive pedal from full forward to full
reverse six times.
