Cub Cadet RZT-S Professional Shop Manual

RZT-S
42
8. Remove the two nuts and bolts that hold the front of
the steering column assembly to the mower using a
pair of 1/2” wrenches. See Figure 4.40.
9. Remove the two screws that hold the rear of the
steering column assembly to the mower using a 1/2”
wrench. See Figure 4.41.
10. Lift the steering column assembly off of the mower.
11. Remove the nut, bolt and shoulder spacers that
attach the speed brackets to the control pedal shaft
using a pair of 7/16” wrenches. See Figure 4.42.

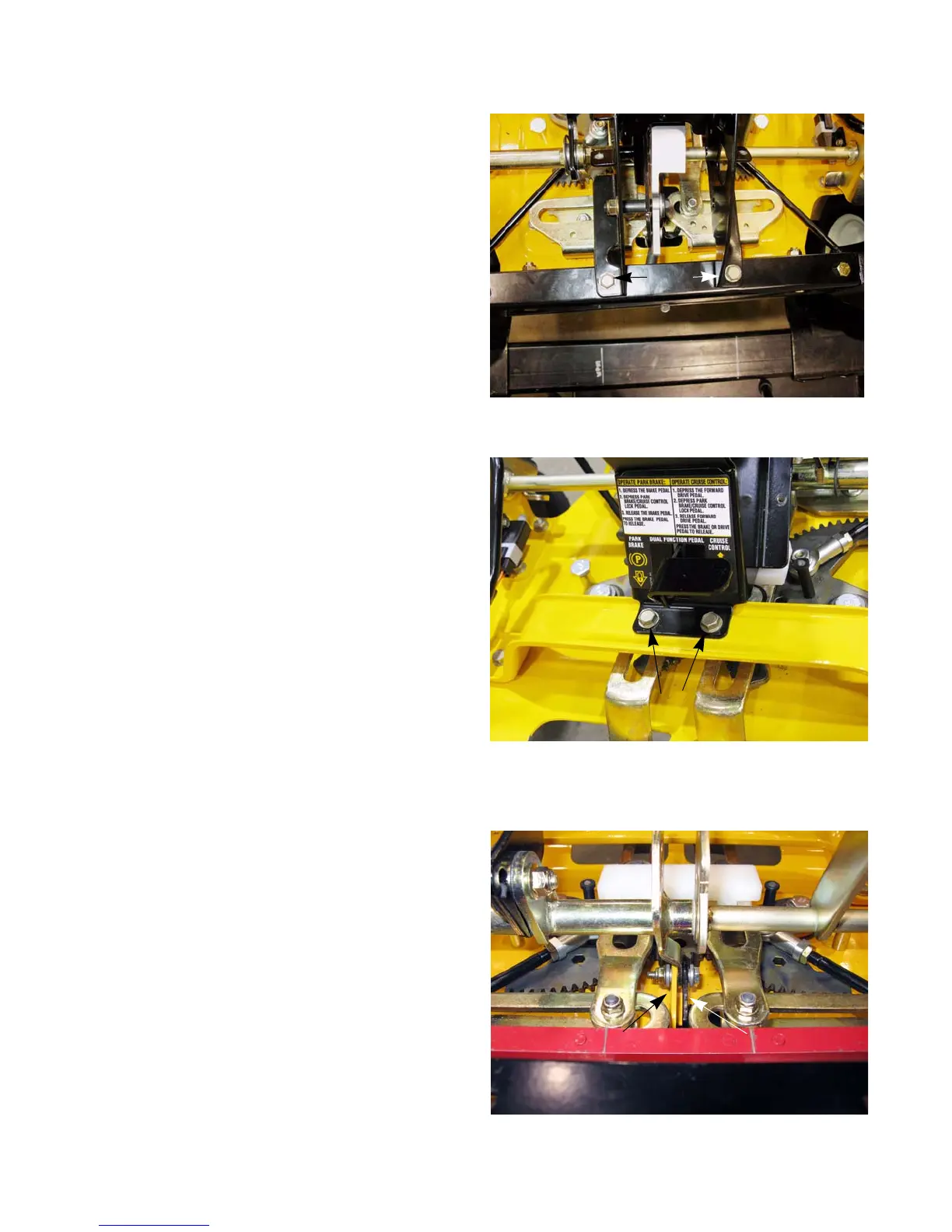

Figure 4.40
Bolts
Figure 4.41
Screws
Figure 4.42
Speed brackets
