CURTIS 1311 HANDHELD PROGRAMMER
The Curtis 1311 handheld programmer provides programming, diagnostic,
and test capabilities for the 1243GEN2 controller. The power for operating the
programmer is supplied by the host controller via a 4-pin Molex connector.
The programmer includes a 7-line alphanumeric LCD display, rocker-
type keys for navigating through the display and for modifying parameters (+/
-), and three keys that can be used as bookmarks.
The 1311 programmer is easy to use, with self-explanatory functions.
After plugging in the programmer, wait a few seconds for it to boot up and
gather information from the controller.
For experimenting with settings, the programmer can be left plugged in
while the vehicle is driven.
APPENDIX B: 1311 PROGRAMMER
Parameter
Modification Key
(to increase and
decrease values)
LCD Display
(seven lines,
alphanumeric)
Bookmark Keys
(for jumping easily back
and forth between fields)
Navigation Key
(to move around through
the programmer menus)

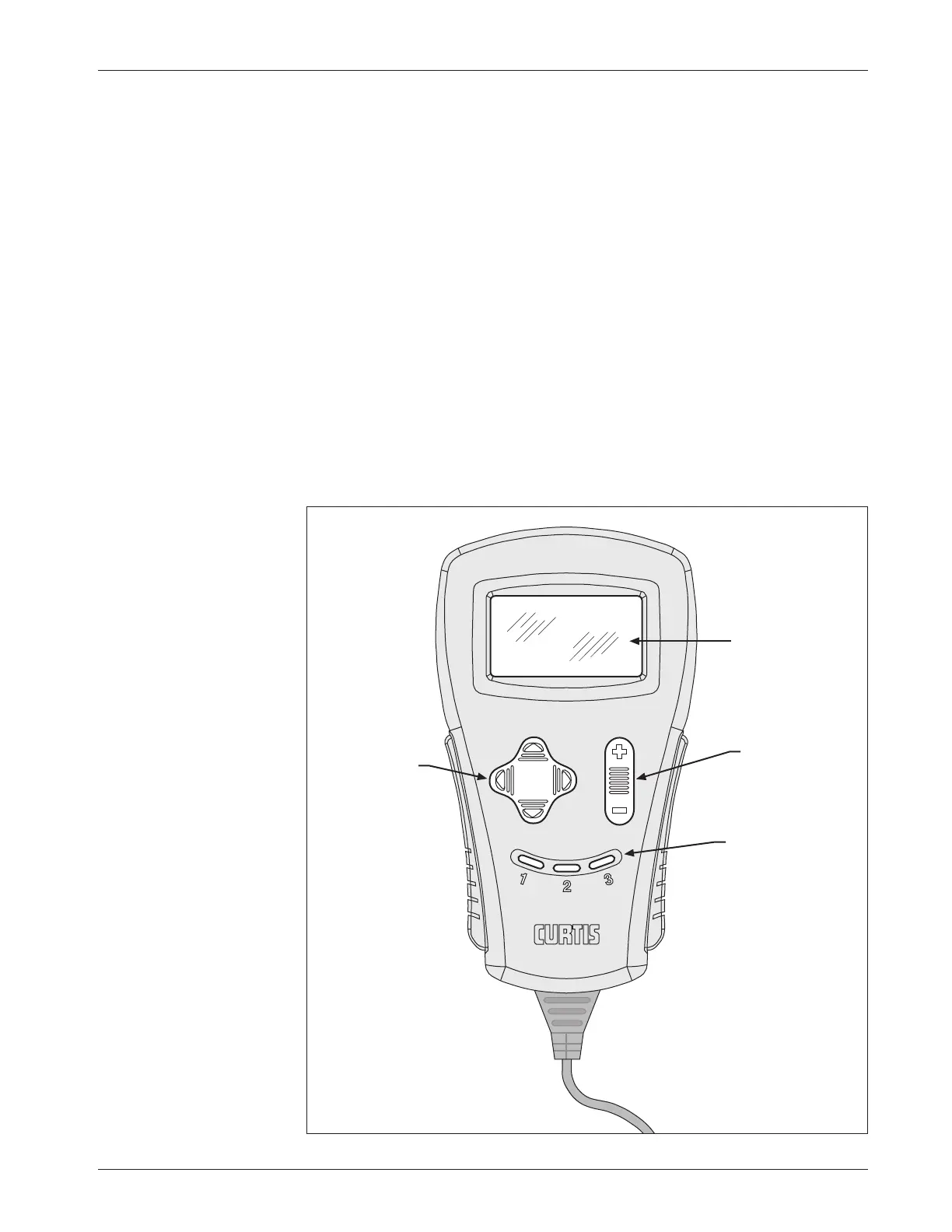

Fig. B-1 Curtis 1311
handheld programmer.
