Curtis 1220 User Manual

Curtis 1220 Manual, Rev. C
11
3 — PROGRAMMABLE PARAMETERS: Command Device Parameters
COMMAND DEVICE
ALLOWABLE
PARAMETER RANGE DESCRIPTION
Redundant Input Off / On This parameter determines whether there will be a redundant steer
command input.
Off = Single input, to Command Analog 1 (pin J1-6)
On = Redundant inputs to Command Analog 1&2 (pins J1-6, J1-13).
It is best practice to wire the primary and redundant input signals in an “X”
conguration (0–5V and 5V–0).
When the Redundant Input is programmed Off, only a single steer
command device (the Command Input Device) is used and steer command
redundancy is disabled.

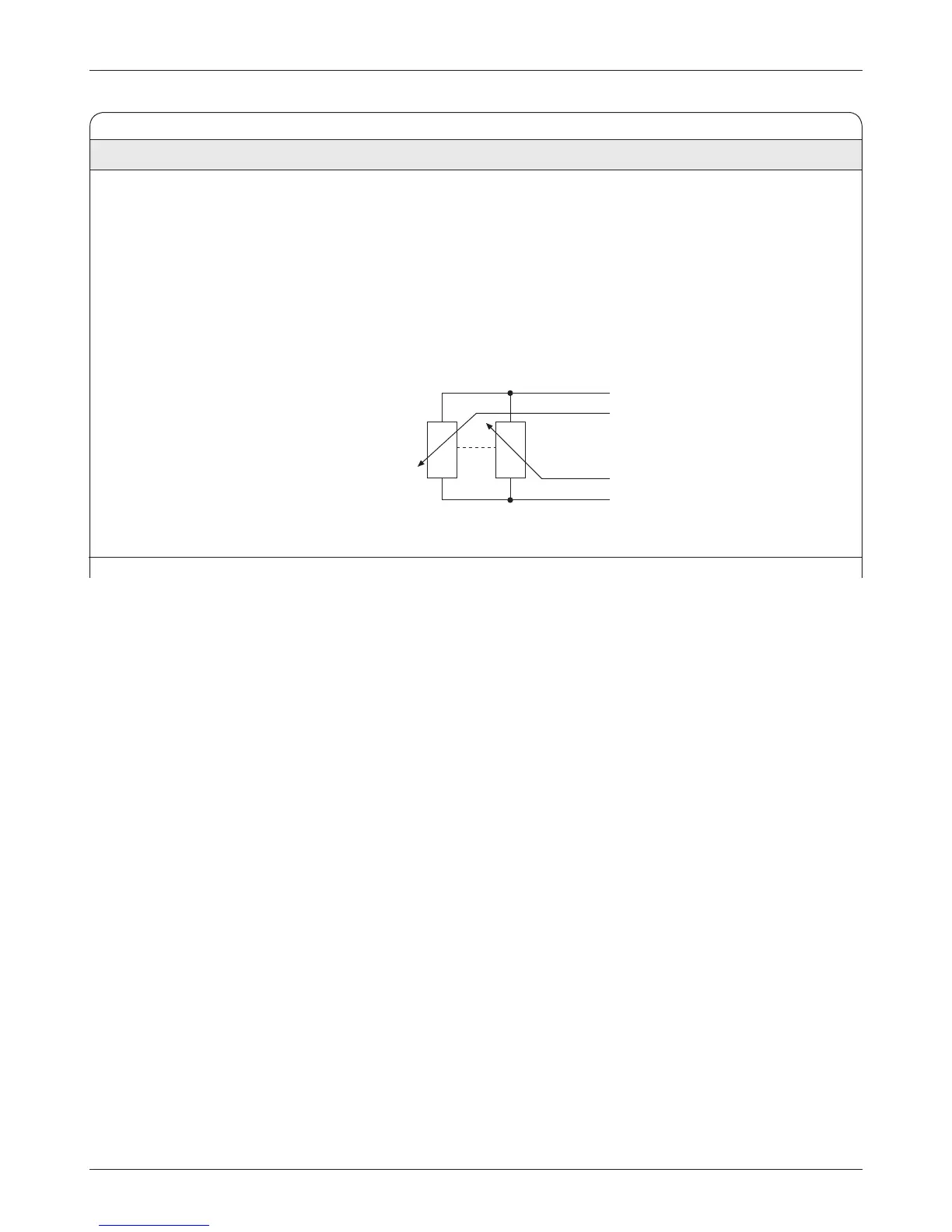

Command Analog 1 (primary)
Command Analog 2 (redundant)
Command Pot Low
+5V
Command Analog Input
