Curtis 1239E User Manual

4 — PROGRAMMABLE PARAMETERS
Curtis 1239E-1269E Manual, os 37.0 RevA – May 2021
Return to TOC
pg. 48
REGEN LIMITING MAP MENU
PARAMETER ALLOWABLE RANGE DESCRIPTION
Nominal
PL_Regen_Nominal
0x3065 0x00
0 – 100%
0 – 32767
These parameters dene the percentage of regen current limit or
braking current limit that will be applied at the speeds dened by the
nominal speed and delta speed parameters.
The curve can be shaped to limit the available torque at various
speeds. One possible use is to compensate for the torque-speed
characteristic of the motor.
Figure 16 illustrates two typical usages of these parameters.
Plus Delta
PL_Regen_Nominal_Plus_Delta
0x3066 0x00
0 – 100%
0 – 32767
Plus 2xDelta
PL_Regen_Nominal_Plus_2xDelta
0x3067 0x00
0 – 100%
0 – 32767
Plus 4xDelta
PL_Regen_Nominal_Plus_4xDelta
0x3068 0x00
0 – 100%
0 – 32767
Plus 8xDelta
PL_Regen_Nominal_Plus_8xDelta
0x3069 0x00
0 – 100%
0 – 32767
NOMINAL
NOMINAL
0
20
40
60
80
100
POWER LIMIT (percent current limit)
VEHICLE SPEED (rpm)
NOMINAL SPEED
NOMINAL + Δ
NOMINAL + 2Δ
NOMINAL + 4Δ
NOMINAL + 8Δ

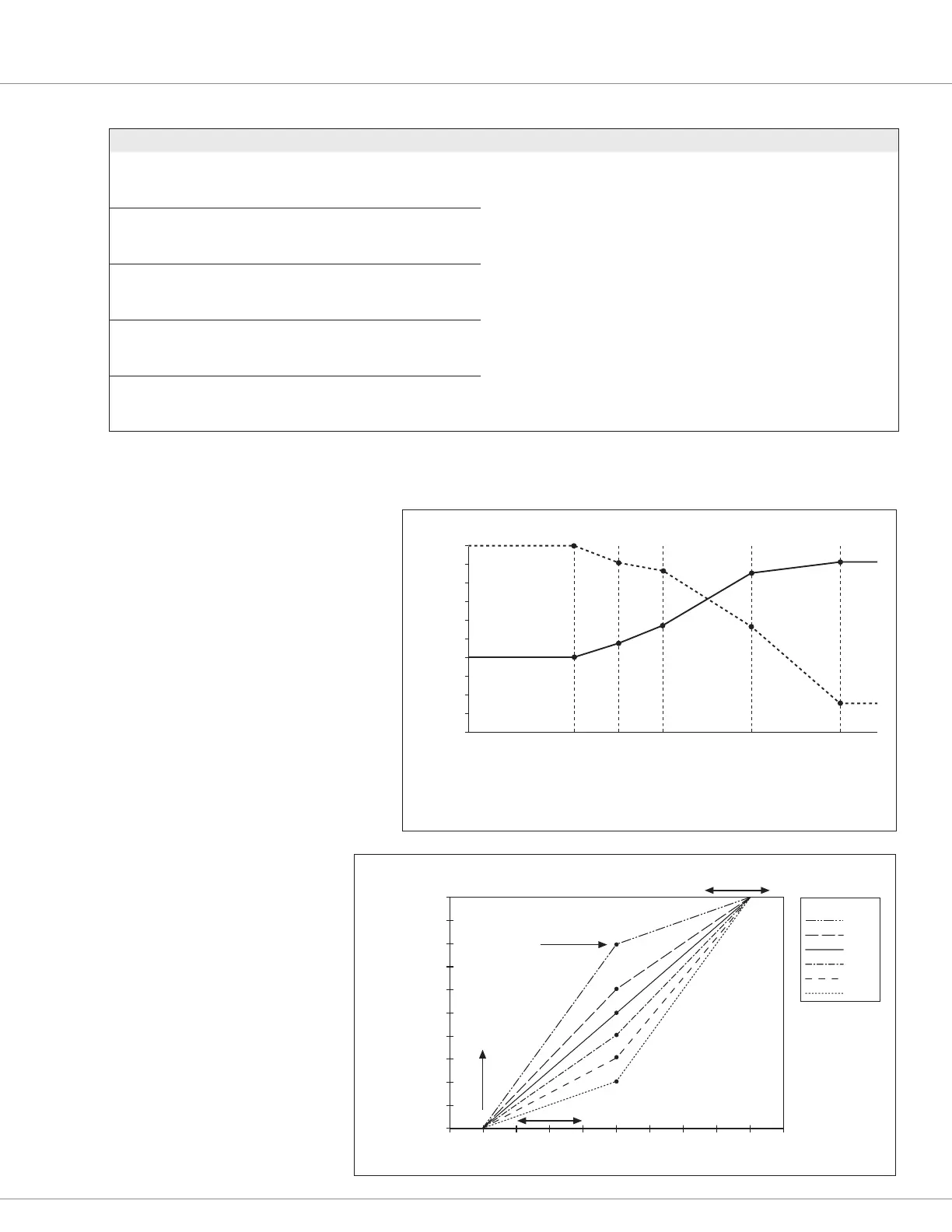

Figure 16
Regen current limiting map
(two examples).
Max parameter
adjusts this endpoint.
80%
60%
50%
40%
30%
20%
MAP
THROTTLE INPUT VOLTAGE (volts)
CONTROLLER OUTPUT (percent)
Map determines the “knee”
in the output; this knee is
at an 80% map setting.
Offset
parameter
raises this
endpoint.
Deadband parameter
adjusts this endpoint.
5.04.03.02.01.0 0
100
90
80
70
60
50
40
30
20
10
0
Figure 17
Eect of throttle adjustment
parameters. Together these
four generic parameters
determine the controller’s
response to throttle demand
(in forward or reverse) and
to brake demand.
In the examples shown in
this gure,
Deadband = 0.5 V
Max = 4.5 V
Oset = 0.
