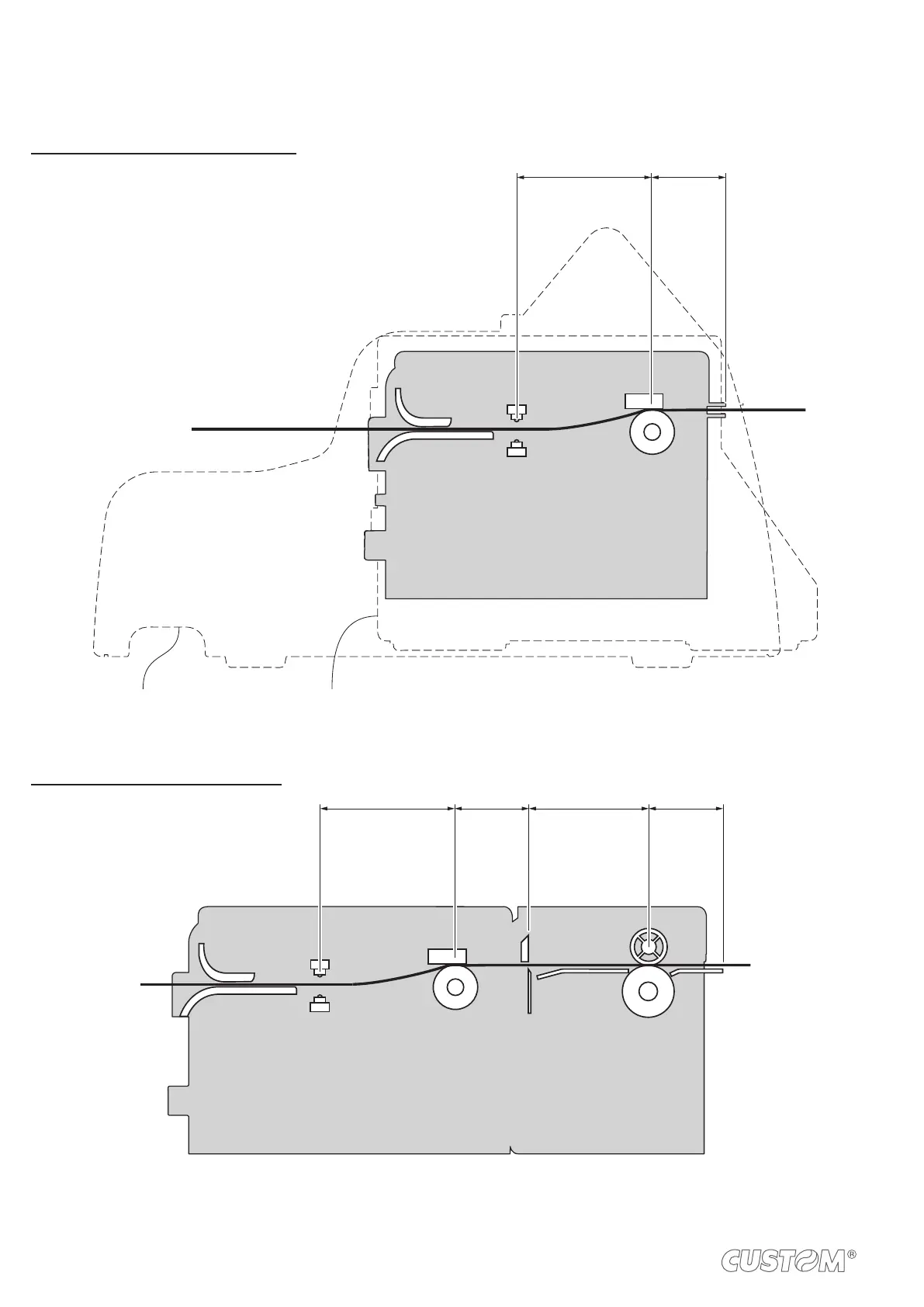

between the alignment sensor, the print head, cutter (for models with presenter) and paper out mouth.
KPM180H (standard models), TK180
38
distance between
printing line and
notch sensor
20
distance between
printing line and
paper out
TK180 (metallic models)TK180 (plastic models)
KPM180H (standard models)
KPM180H (models with presenter)
38
distance between
printing line and
notch sensor
20
distance between
printing line and
cutting line
32
distance between
cutting line and
nip rollers
16
distance between
nip rollers
and paper out
