7.3 Alignment parameters

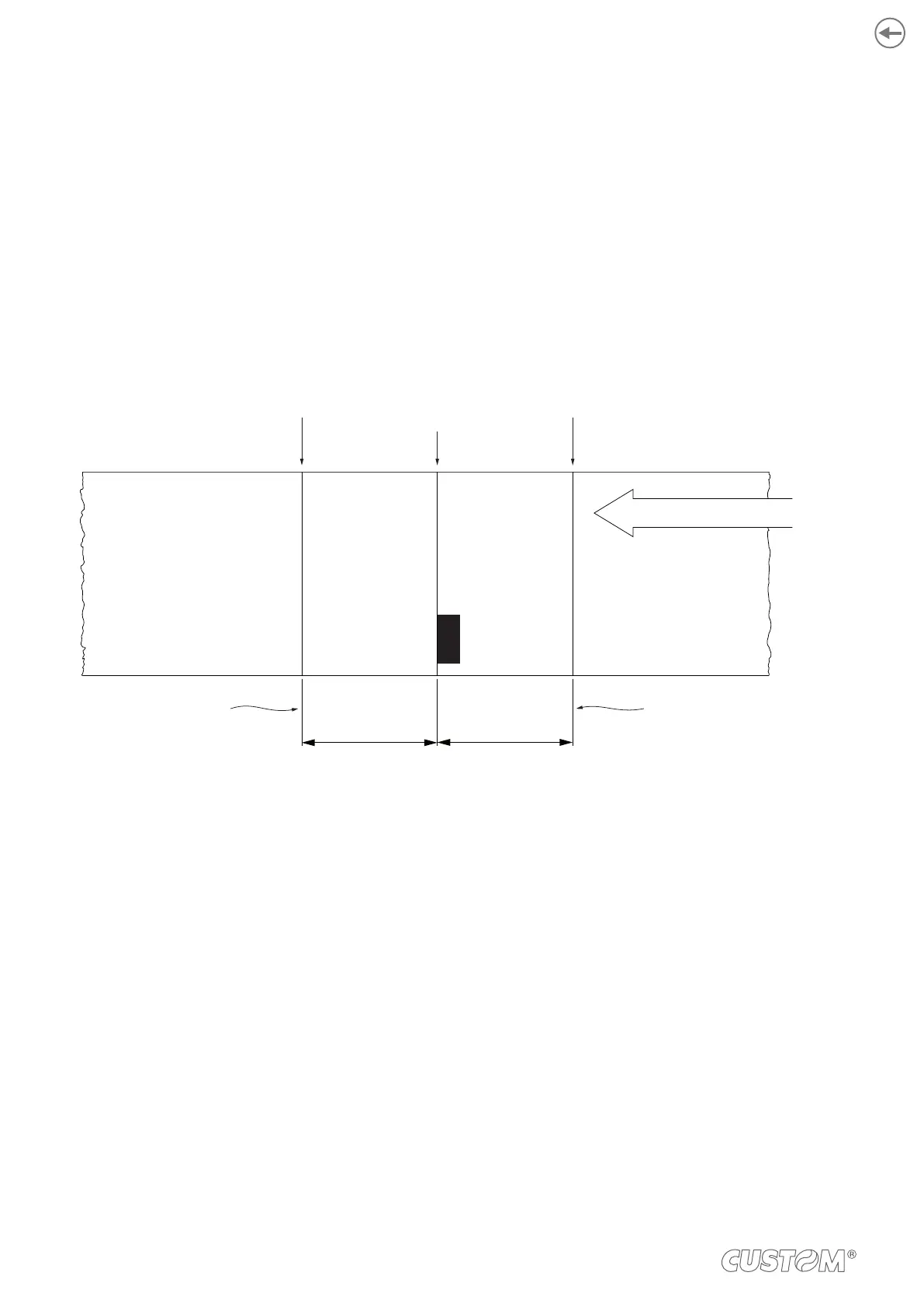

Referring to the front of the black mark, the value of “Black Mark Distance” varies according to emulation set:
- VKP80III emulation: “Black Mark Distance” value varies from -5 mm minimum and 99.9 mm maximum
- VKP80II emulation: “Black Mark Distance” value varies from 0 mm minimum and 32 mm maximum.
If the “Black Mark Distance” value is set to 0, the alignment point is set at the beginning of the black mark.
Alignment
point:
notch front
Alignment
point
0
-
PRINTING DIRECTION
negative values of
“Black Mark Distance”
positive values of
“Black Mark Distance”
+
Alignment
point
84
