7.4 Printing area

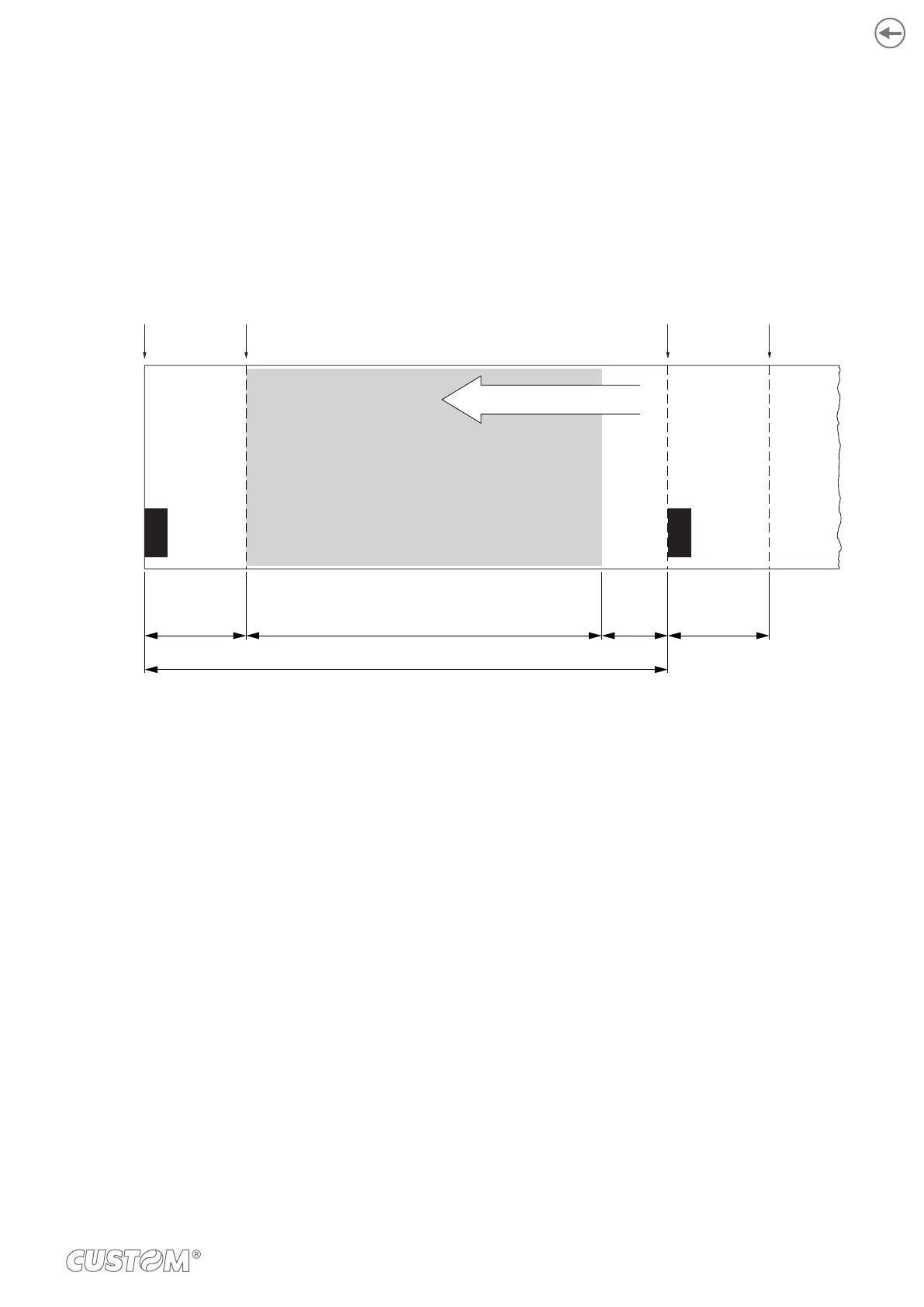

In order to print ticket containing only one black mark and to not overlay printing to a black mark (that will make it useless
for the next alignment), it is important to well calibrate:
•
• the value for the paper recovery after a cut (if present)
Cutting
line
Printing
line
Cutting
line
Printing
line
A A
L
DH
PRINTING
AREA
PRINTING DIRECTION
A “Non-printable area” generated from:
“Distance between cutter/printing head” - “Value for the paper recovery after a cut”
where:
“Value for the paper recovery after a cut” in VKP80II emulation= 0 mm,
“Value for the paper recovery after a cut” in VKP80III emulation = variable from 0 mm (default value) to 11.9 mm
according to the settings of 0x1C 0xC1 command (see commands manual)
L Distance between an edge of the black mark and the next one, called “Inter-black mark distance”.
D Automatic feed for alignment at the next black mark.
To use all the black marks on the paper, you must comply with the following equation:
The height of the printing area H can be increased to make no progress on alignment D but no further.
87
