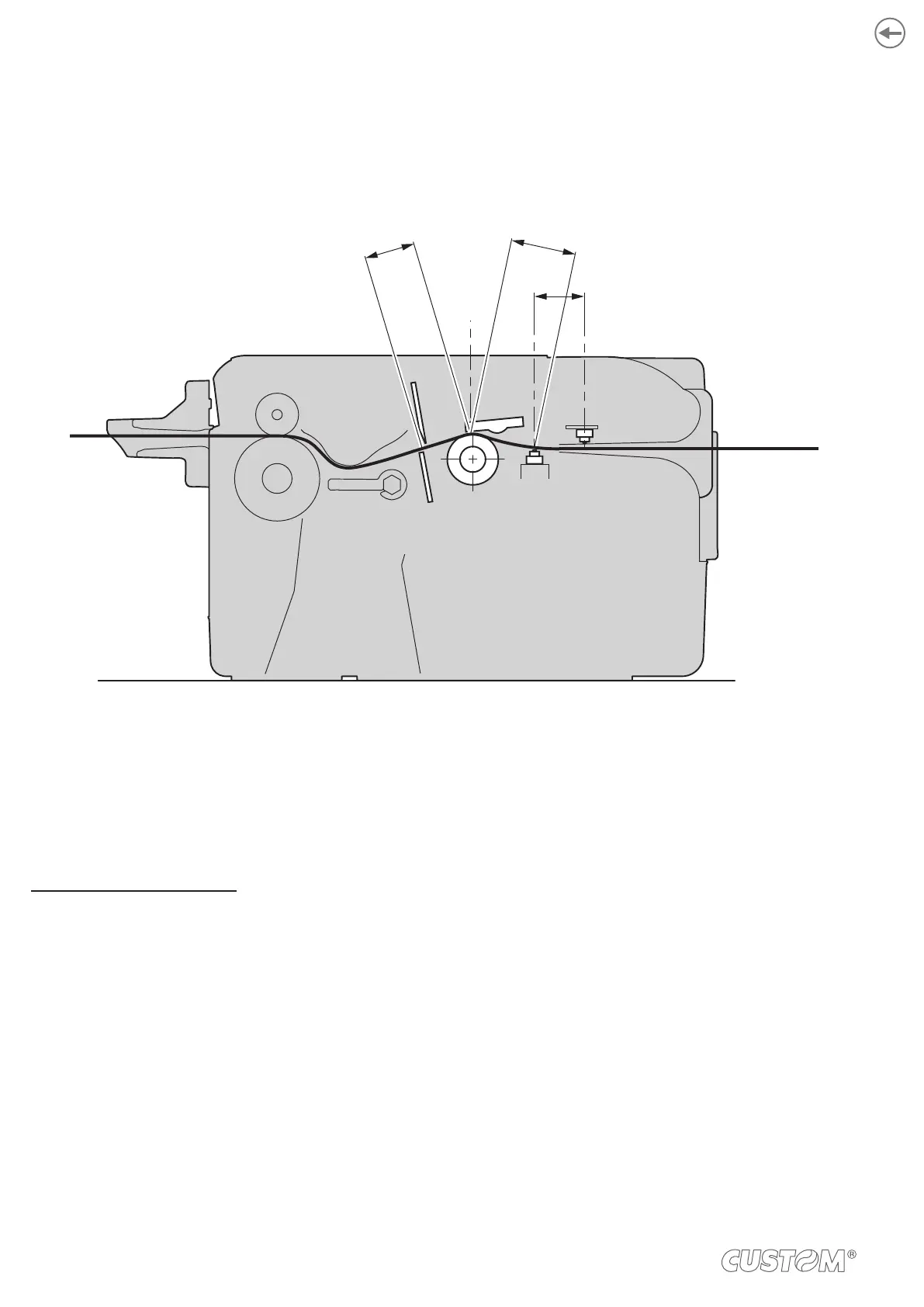

the printing head and the autocutter (cutting line), where:
A = 11.9 mm = distance between the cutting line and the printing line on paper.
B = 15.3 mm = distance between the the printing line and the mobile alignment sensors (bottom).
C = 11.8 mm = distance between the mobile alignment sensor (bottom) and the upper alignment sensor (optional).
A
B
C
VKP80II, VKP80III emulation
Distance” parameter (see paragraph 6.8).
For example, to set a black mark distance of 15 mm between the black mark and the alignment point, the parameters must
be set on the following values:
Black Mark Distance Sign : +
Black Mark Distance [mm x 10] : 1
Black Mark Distance [mm x 1] : 5
Black Mark Distance [mm x 0.1] : 0
• during the setup procedure of the device (see chapter 6).
• by using the 0x1D 0xE7 command (for more details, refer to the commands manual).
• by driver.
