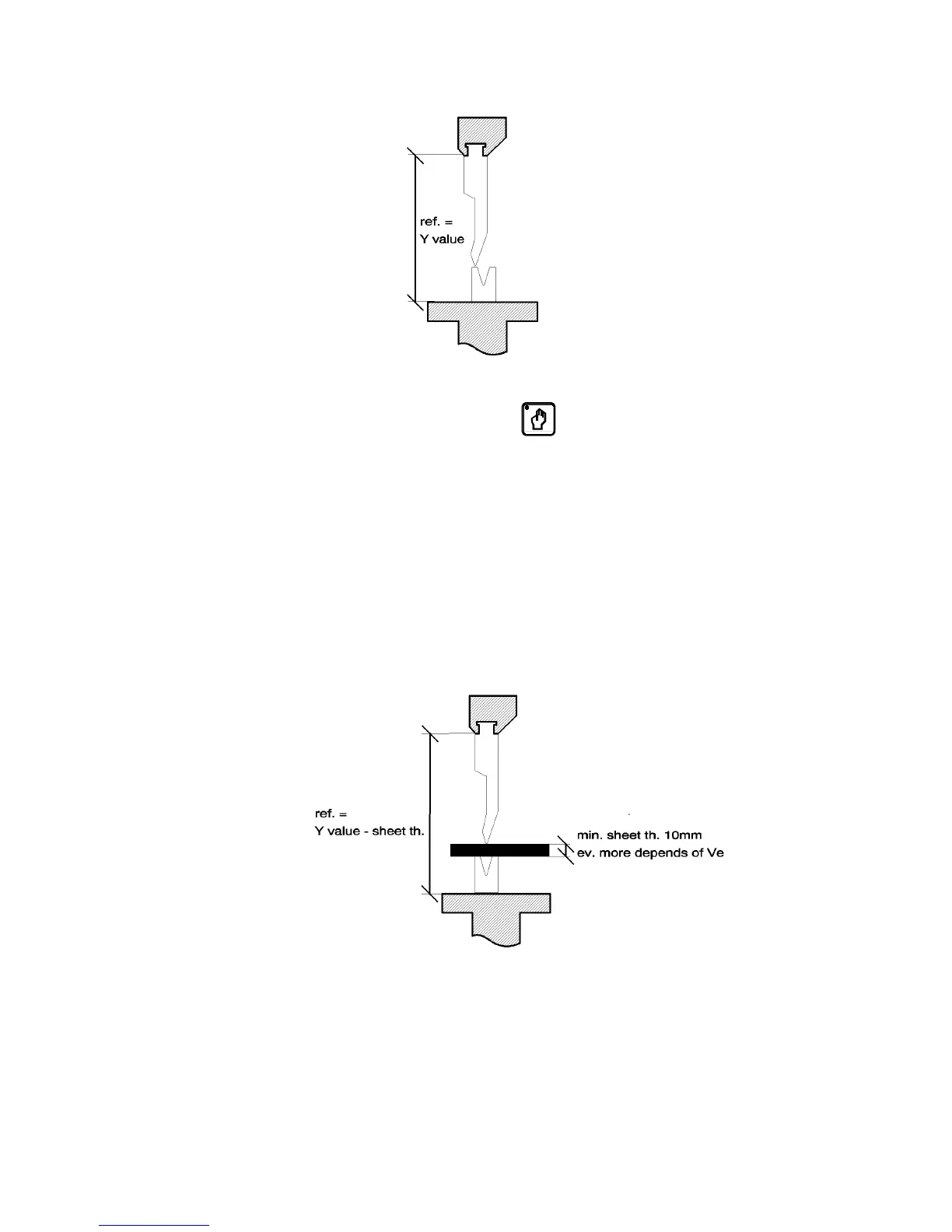

To control the reference, simply, in
mode, place the point of the punch
This value must be identical, for both counters and also correspond to the
REF Y reference value displayed on the PUNCH / DIE PROGRAMMING
page.
above, it is
possible using a die with a small opening, to place on the die a thick sheet
n
st
on the flat of the die (be careful with the pressure of the active sequence) and
read the value indicated by the POS Y1 and Y2 counters.
If it is not possible to move the die to obtain a situation as shown
(which will not bend under the weight of the beam) or blocks of a know
precise thickness, (see figure below).
The value of the material introduced between the punch and the die mu
then be subtracted to obtain the reference value REF Y.
PAGE 58 USER GUIDE DNC 600S
