IDEAL CURVE
The ideal curve functionality (also called step bending or big radius) allows
to m
Ideal
Ideal curve i 4 to 98 (programming 0, 2 or 3
will give an error).
Note: For the result to be coherent, the number of bends to realize the
angle must be such that the length of each segment is greater
than half the length of the V opening of the die.
If this is not the case a message informs the operator and the
result will be an angle too open.

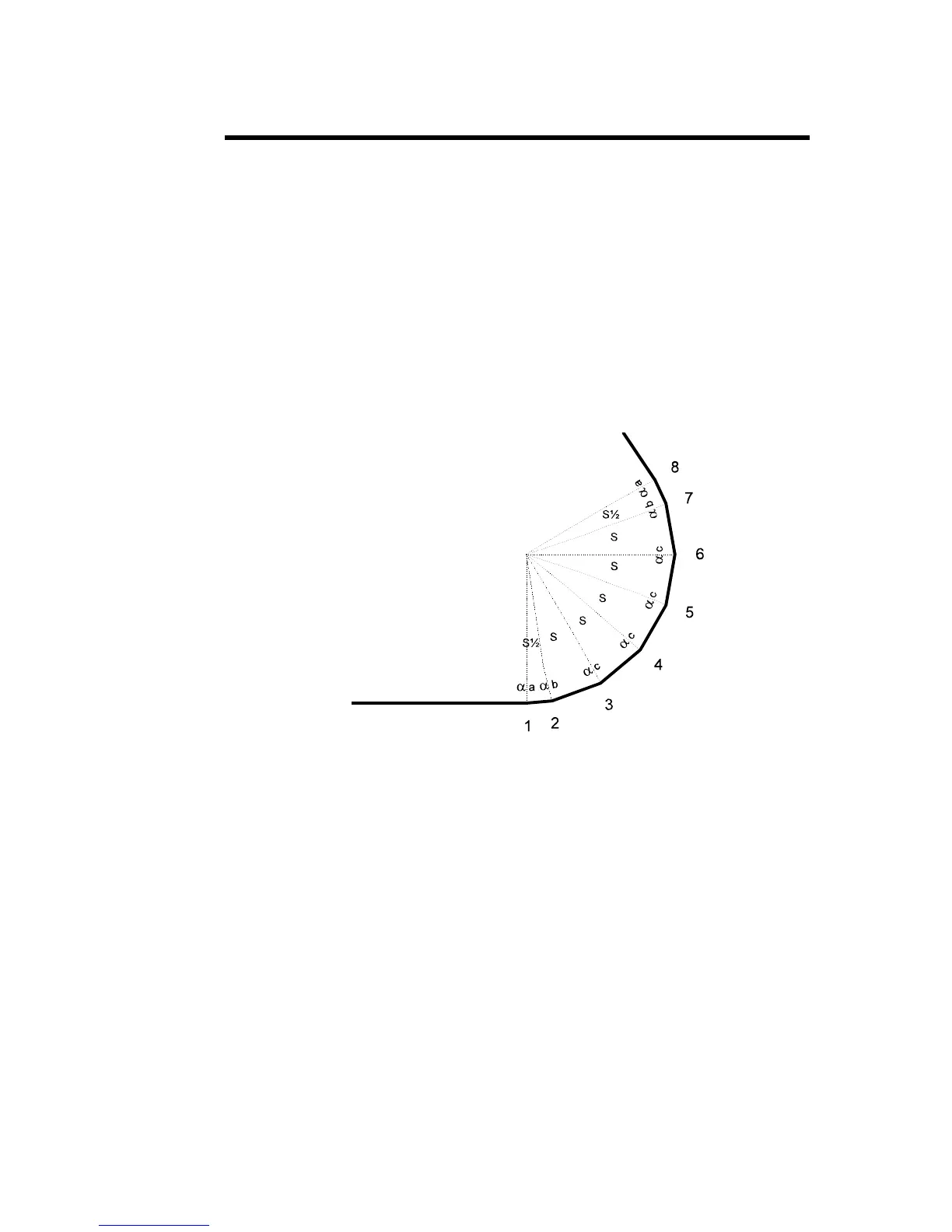

In ideal curve mode, the software calculates different bends for the first,
second, second last and last bend according to the drawing below.
ake a bend with a large internal radius.
curve can be programmed on one or the other of these pages.
s defined by programming from
APPENDIX G: MISCELLANEAOUS PAGE 67
