PROGRAMMING WITH THE SEQUENCE PAGE
In this guide, it is considered that the DNC is configured so as to be
operational (i.e. machine and tool parameters programmed).
The operator has 2 methods available for programming.
The fastest
Direct programming (or programming in the sequence page)
Direct programming is the faster method for an experienced operator,
because all the programming of the product is done on the same page. This
makes it possible to programme the positions of the axes directly, and it
calculates the depth of bending according to the angle entered.
With calculation of the flat pattern
The L-Alpha method.
The L-alpha method makes it possible to enter a profile to bend with the
external dimensions and angle of each face. The DNC will calculate the
developed length:
After having programmed the sequence of bends, the DNC will calculate the
position of the gauges.
Explanation of this method in
Appendix F: Programming with L-Alpha on
page 38.
DIRECT PROGRAMMING
Programming Example

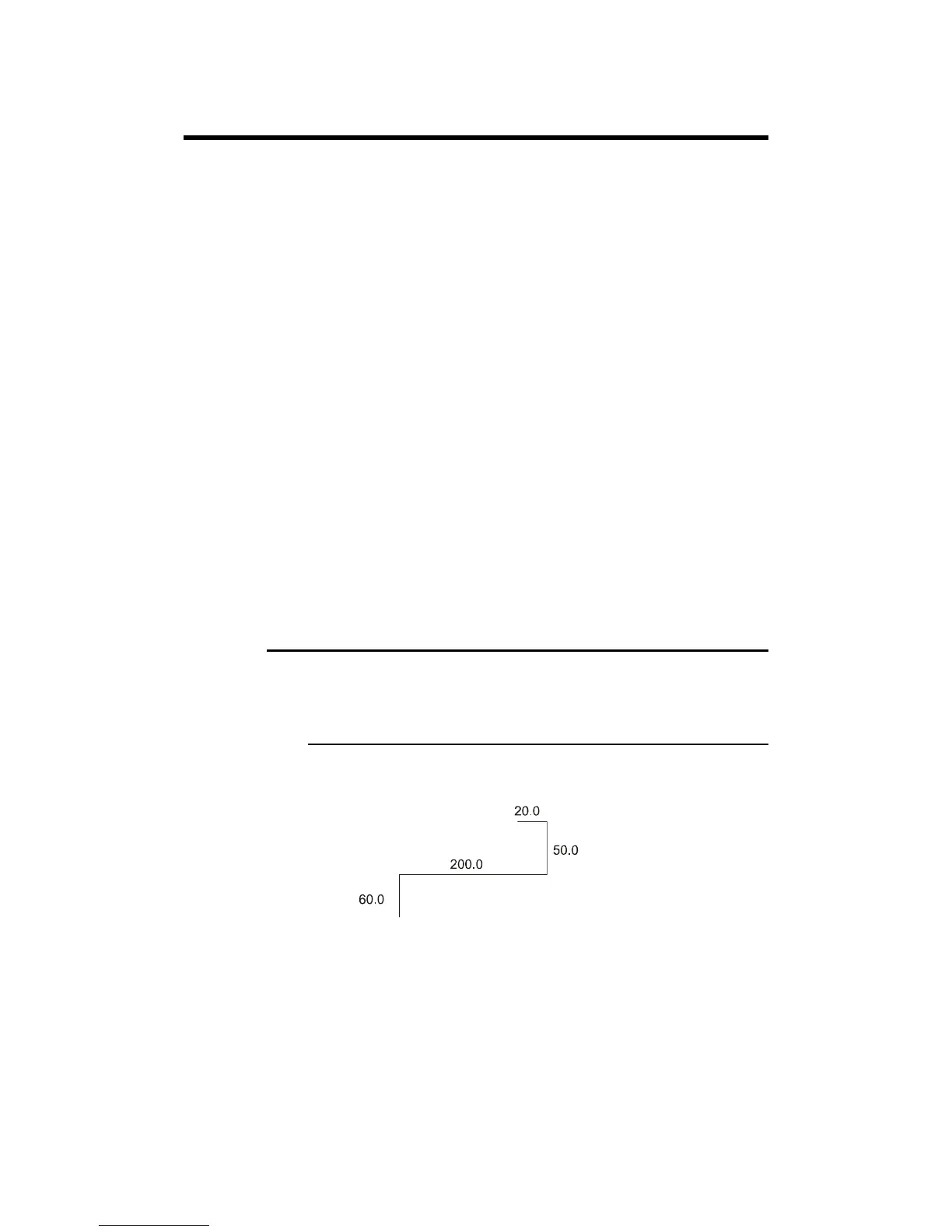

The following product is to be realized:
Th: 2.0 mm
Lmat: 1000 mm
The bending order is the following:
