CYBEX 515T

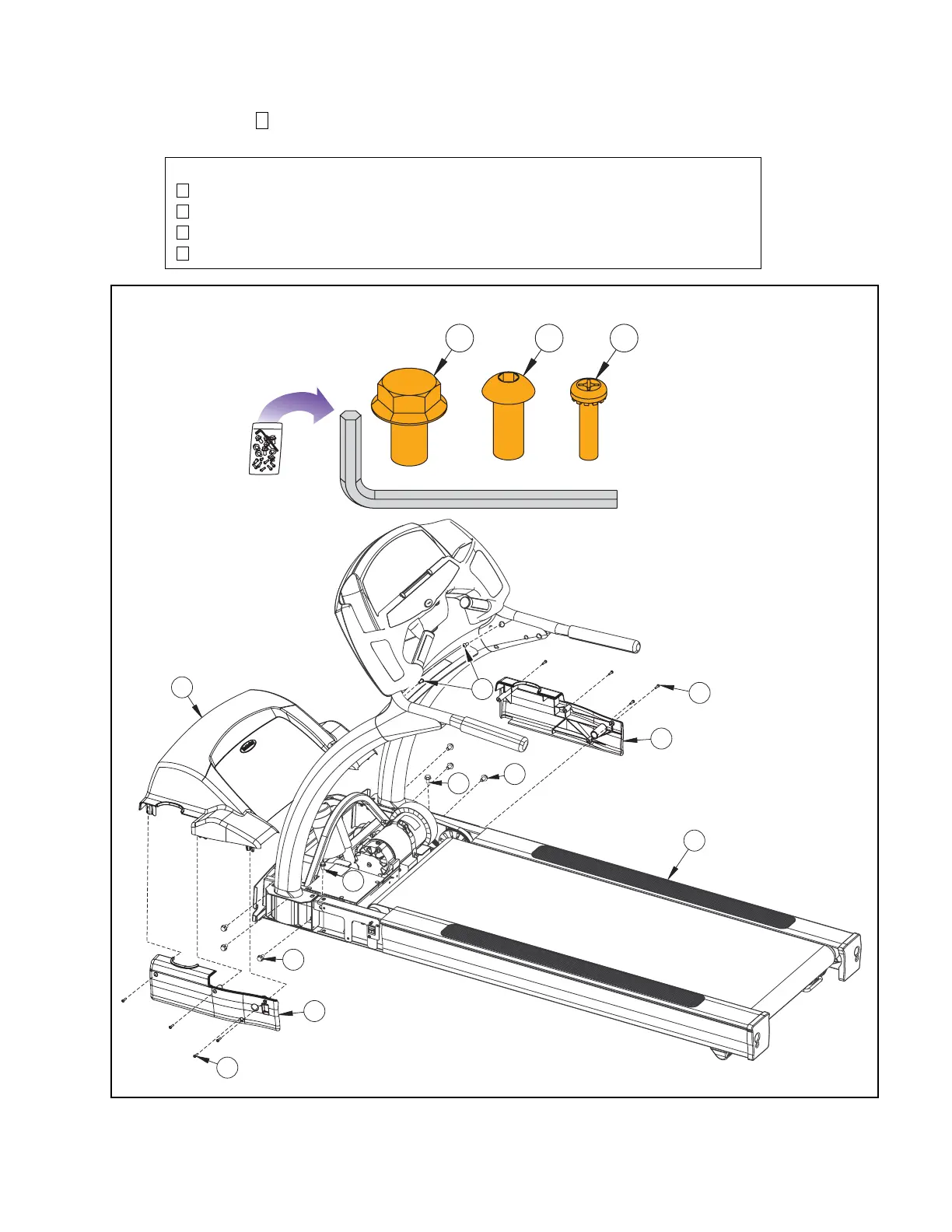

C. Check off ( ) each item in the hardware pack as you find it. See Figure 2.
Cybex Sport+ Treadmill Owner’s and Service Manual
432
8x
1x
2x 8x
5
4
2
6
2
3
7
1
2
4
2
Figure 2
Hardware - Actual Size
Item Qty Part Number Description
2 8 HS-16929 Screw, hex head whiz-lock 3-8-16 x 5-8
3 2 HS-16950 Screw, button head 5-16-18 x 7-8
4 8 HS-16939 Screw, Phillips head sems 10-32 x .75
8 1 HX-00438 Hex key, 3/16”
Setup
and
Assembly
Page 5-4
