7. Loosen the deck.
A. Using a 7/16” open-end or socket wrench, remove the ten screws and ten washers
that hold the deck in place. See Figure 7. NOTE: Leave the deck in place until step 9B.
Front Roller
8. Loosen the front roller.
A. Using a 1/2” socket wrench, loosen but do not
remove the two screws on the motor saddle. See
Figure 8.
B. Place a 9/16” socket wrench with a 3” extension in
the right front roller access hole. Loosen but do not
remove the right front roller screw. See Figure 9.
NOTE: The right screw will stay on the front roller.
You do not need to remove it for this procedure.
C. Place a 9/16” socket wrench with a 3” extension in
the left front roller access hole. Remove the left front
roller screw. See Figure 9. NOTE: Leave the front roller
in place until
step 9C.
9. Remove the running deck and running belt.
A. If rotating or flipping the deck, make a note on the
deck so you know which way it was positioned.
Cybex Sport+ Treadmill Owner’s and Service Manual
Figure 8
Motor Saddle Screws
Flywheel
Pulley
Drive
Belt
Service
Page 7-12

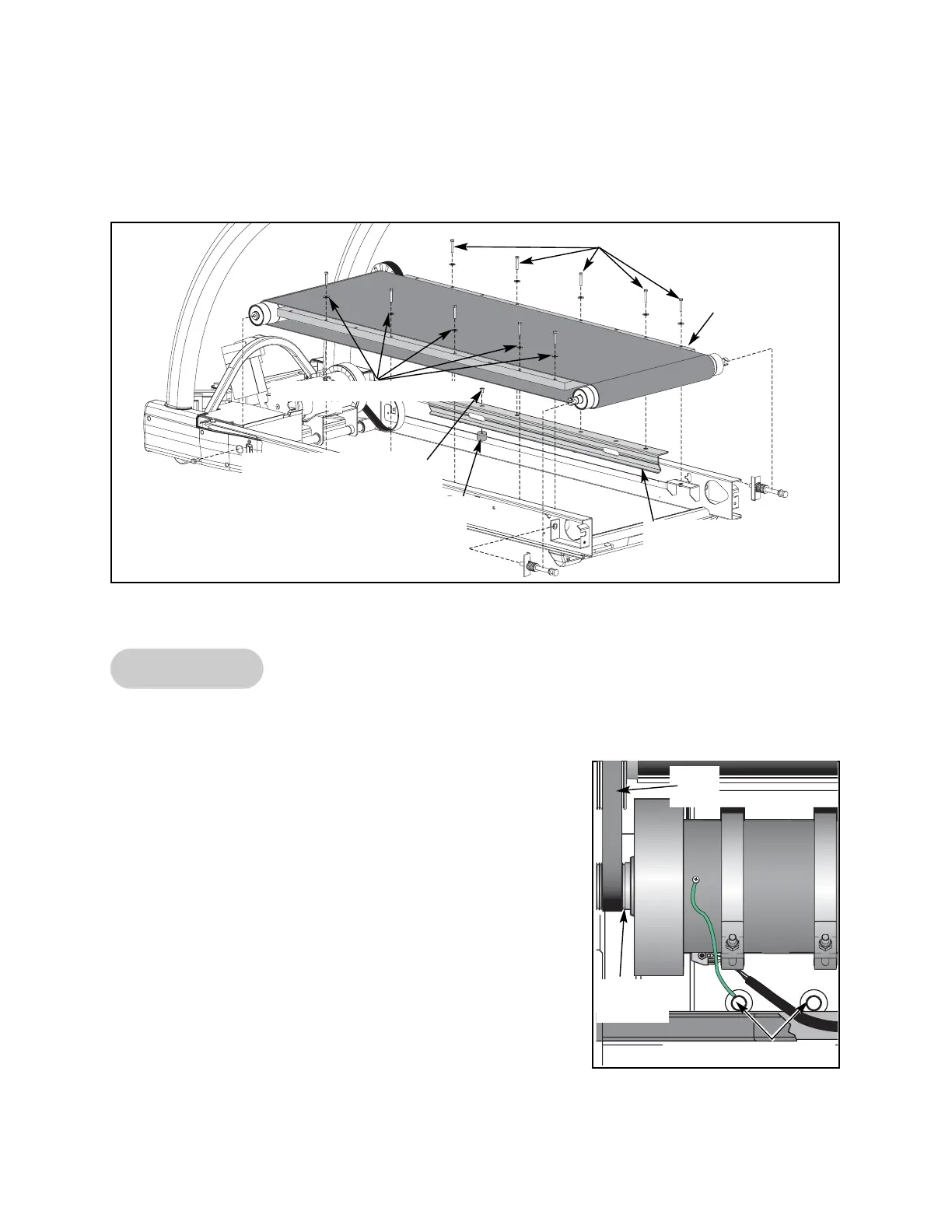

Figure 7
Screws (5 on Each Side)
Washers (5 on Each Side)
Deck
Screw Securing Deck
Stiffener (1 on Each Side)
Deck Stiffener
(1 on Each Side)
Rubber Mount
(1 on Each Side)
