B. Lift one side of the deck and slide it out of the
running belt.
C. Tilt up the left side of the front roller and slip
the running belt off.
10. Inspect the rubber mounts.
A. Using a Phillips head screwdriver, remove the
screw securing each deck stiffener. See
Figure 7.
B. Inspect the rubber mounts under the deck
stiffeners for cracks or wear. NOTE: Unscrew
and replace the rubber mounts if the rubber is
cracked or worn.
C. Using a Phillips head screwdriver, secure each
deck stiffener with screws removed from step 10A.
Drive Belt
NOTE: If you are replacing the drive belt follow steps 11 through 14. If not, skip steps 11, 12
and 14 but follow step 13. See the Drive Motor procedure for an alternative way to
change the drive belt.
11. Release the drive belt tension.
A. Using a 1/2” socket wrench, loosen but do not remove the two screws on the motor
saddle. See Figure 8.
12. Remove the drive belt.
A. If you are changing the drive belt, slip the drive belt around the flywheel pulley and off
the motor. See Figure 8.
B. Slide the new drive belt around the flywheel pulley. NOTE: There will be some slack in
the drive belt until step 14 is complete.
13. Secure the front roller.
A. Slide the front roller into the running belt. NOTE: It doesn’t matter which way the
running belt goes.
B. Be sure the drive belt is around the flywheel pulley and the front roller before attaching
the front roller.
C. Using a 9/16” socket wrench with a 3” extension, attach the two screws that fasten the
front roller to the frame. NOTE: Tighten each of the two screws evenly, making sure
not to tighten one screw too many turns before moving to the other screw.
Cybex Sport+ Treadmill Owner’s and Service Manual

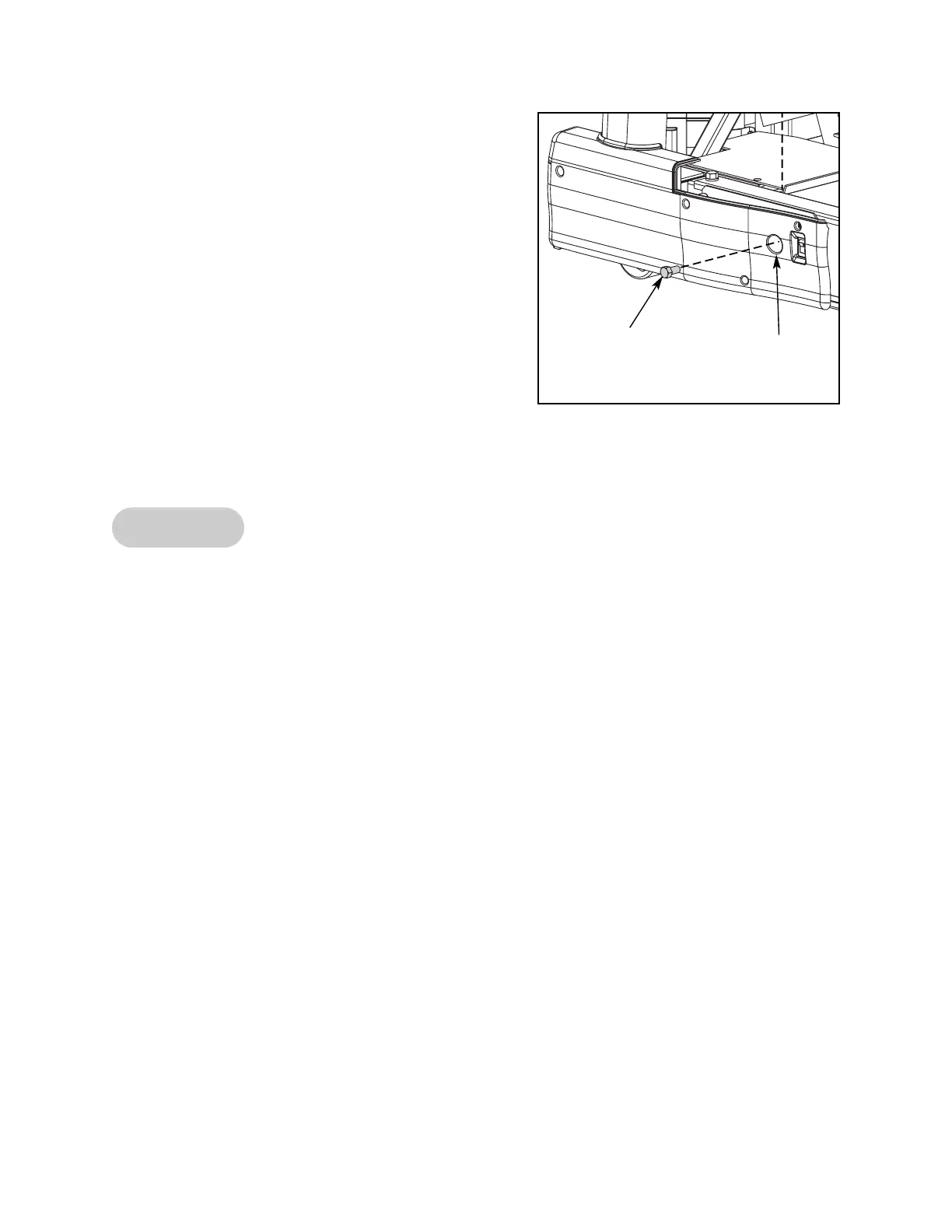

Figure 9
Screw
Front Roller
Access Hole
Service
Page 7-13
