E. Refer to the lower board shield
to confirm the locations for
the connectors and check to
see that all of the cables are
connected firmly. See Figure 19.
F. Place the lower board shield in
position and push the clips
down. NOTE: The clips will
snap in. See Figure 19.
20. Secure the motor cover.
A. Lower the motor cover center
into position. See Figure 2.
B. Using a Phillips head
screwdriver, tighten the three
screws on each side. NOTE: Be
sure the screws are catching
the center motor cover's holes.
21. Perform the appropriate
procedures (as noted below).
A. Follow the Speed Calibration procedure located in this chapter (required).
B. If you replaced the motor follow the IR Compensation procedure located in this
chapter.
C. If you loosened the tension on the running belt (step 8A) follow the Tension and Center
the Belt procedure located in the Preventive Maintenance chapter.
Cybex Sport+ Treadmill Owner’s and Service Manual
Service
Page 7-21

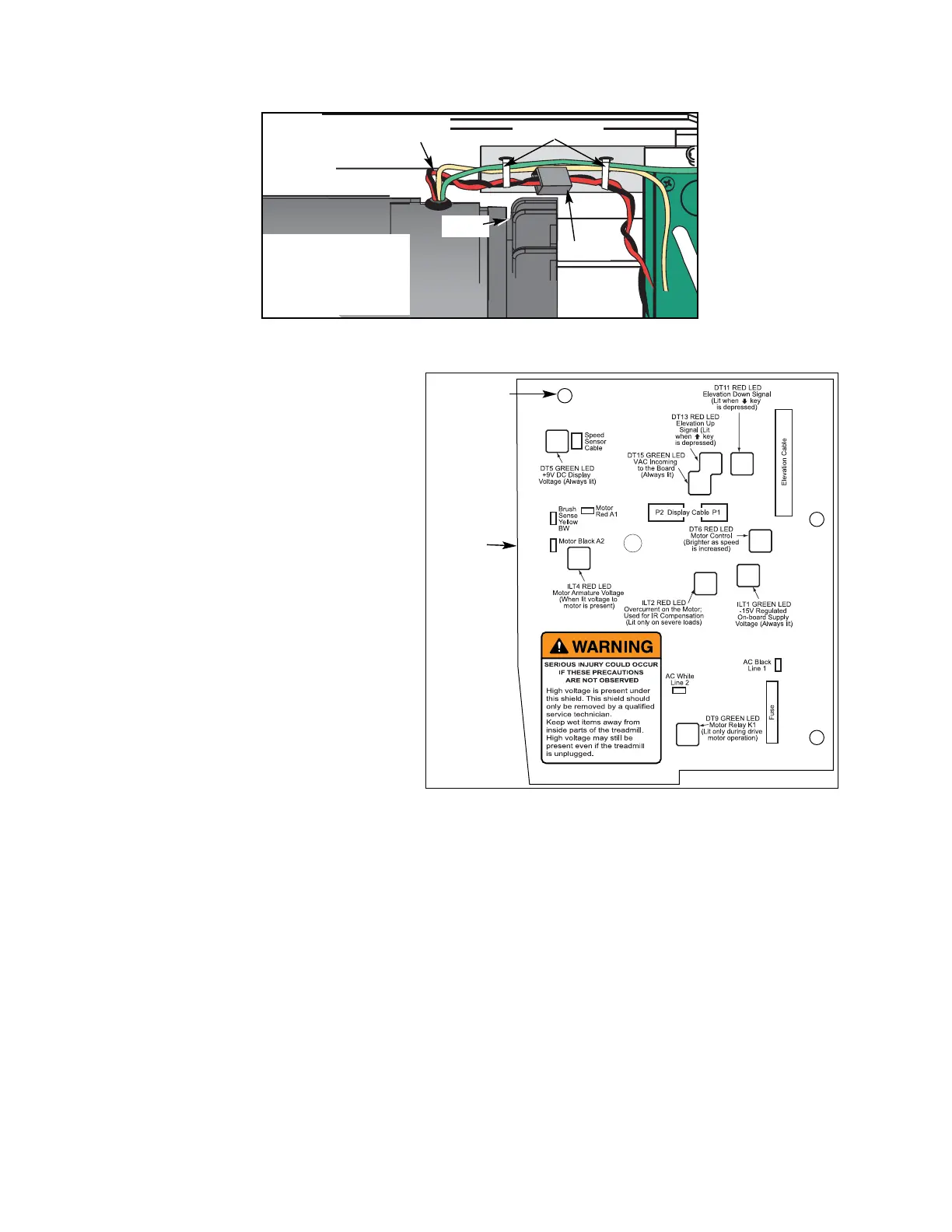

Figure 19
