CYBEX 750T Owner's Manual

Cybex 750T Treadmill Owner’s Manual
Exploded
Views
Page D-1

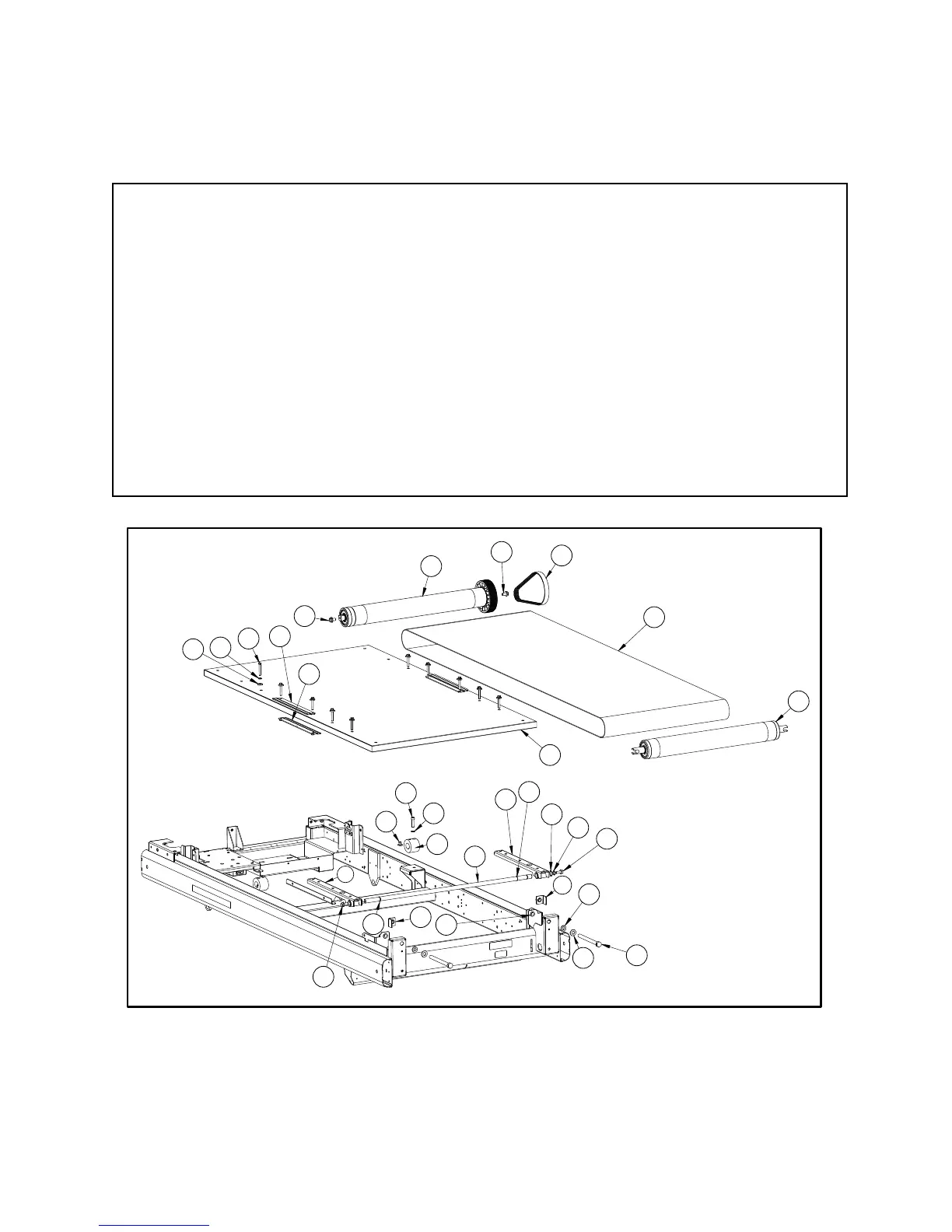

Appendix D – Exploded Views
ITEM QTY. PART NO. DESCRIPTION
1 2 AF-19988 NUT, ROLLER, REAR
3 2 AF-20206 CLAMP, LOWER, TOP STEP
4 1 AL-19740 ROLLER ASSY, FRONT
5 1 AL-19741 ROLLER ASSY, REAR
6 2 AX-20035 ASSY, DECK PIVOT BRACKET
11 1 BD-19889 BELT, RUNNING, 21.88 X 61.75”
12 1 BD-20049 BELT, DRIVE
21 1 DK-20024 DECK, RUNNING, 29.00 X 53.5”
25 1 FM-20099 MOUNTING SHAFT, ELEVATION
MOTOR
27 2 FS-20031 PLATE, RETAINER, UPPER, TOP
STEP
31 2 HB-16367 BUSHING .50 ID X .62 OD X .31”
36 2 HN-20041 NUT, 1/4 - 20 PROPELLER
40 12 HS-12295 BOLT, 1/4 - 20 X 1.75”, HXHD, G5
41 2 HS-15480 BOLT TAP, 1/2 - 13 X 6, HXHD
44 8 HS-16929 BOLT WHIZ LOCK, 3/8 - 16 X
.625”, HXHD
ITEM QTY. PART NO. DESCRIPTION
47 1 HS-17937 BOLT, 3/8 - 24 X 2.75”,
HXHD CAP
48 2 HS-18358 BOLT, 5/16 - 18 X .1.25”,
SCHD CAP
49 8 HS-19108 SCREW 5/16 - 18 X 3/4”, HXHD
51 12 HW-00180 WASHER, SPLIT LOCK 1/4”
52 2 HW-00590 BUSHING, NYLON, 1/2”
53 2 HW-10028 WASHER, 1/2”
54 14 HW-18123 WASHER, .344 ID X .75 OD X
.125”
55 2 HW-20044 WASHER, BELLEVILLE, 15 X
8.2 X 1.0 mm
56 2 HW-20089 WASHER, WAVE, .650 ID X .855”
58 7 HX-13771 RING, RETAINING, 5/8” 0.579 ID
60 2 HX-19991 BUMPER, SPRING DECK, 2.10
X 2.34 X 1”
1
44
12
4
44
27
40
51
54
3
49
1
58
52
6
48
55
36
60
25
6
58
21
31
58
49
56
53
41
11
5
751T Belt, Deck and Rollers

CYBEX 750T Specifications

General

Motor	3.0 HP
Incline Range	0% - 15%
Max User Weight	400 lbs
Heart Rate Monitoring	Wireless Receiver
Weight	350 lbs
