CYBEX 750T Owner's Manual

Cybex 750T Treadmill Owner’s Manual
Assembly
and
Setup
Page 2-5
CAUTION: A minimum of two people are required to lift, move and assemble this treadmill.
Always use proper lifting methods when moving heavy items.
4. Lift and move the treadmill.
At least two people should lift and move the treadmill to a level location where you intend to leave A.
it. Use proper lifting methods.
5. Verify the model and voltage.
Verify that you have the correct model and voltage by looking at the serial number label located A.
at the rear of the unit.
6. Install the uprights.
Locate the left upright (#3) and fi ve bolts, 3/8-16 x .625” (#20).A.
Carefully place the left upright (#3) on the base assembly (#1) as shown. See Figure 3.B.
Using a 9/16” Socket wrench, C.
partially tighten each of the fi ve
bolts, 3/8-16 x .625” (#20). See
Figure 3.
Repeat steps 6A to 6C for the D.
right upright (#4).
7. Install the console assembly to
the uprights.
Locate the console assembly A.
(#2), bolt 5/16-18 x 2.25” HXHD
(#22), washer (#25) and two
nuts (#24). See Figure 4.
NOTE: Do not pinch or damage display
cable when installing console
assembly.
B. Place the console assembly
(#2) in position on the left upright
(#3). See Figure 4.
C. Using a 1/2” box end wrench, partially
tighten the bolt 5/16-18 x 2.25”,
HXHD (#22), washer (#25) and two
nuts (#24). See Figure 4.

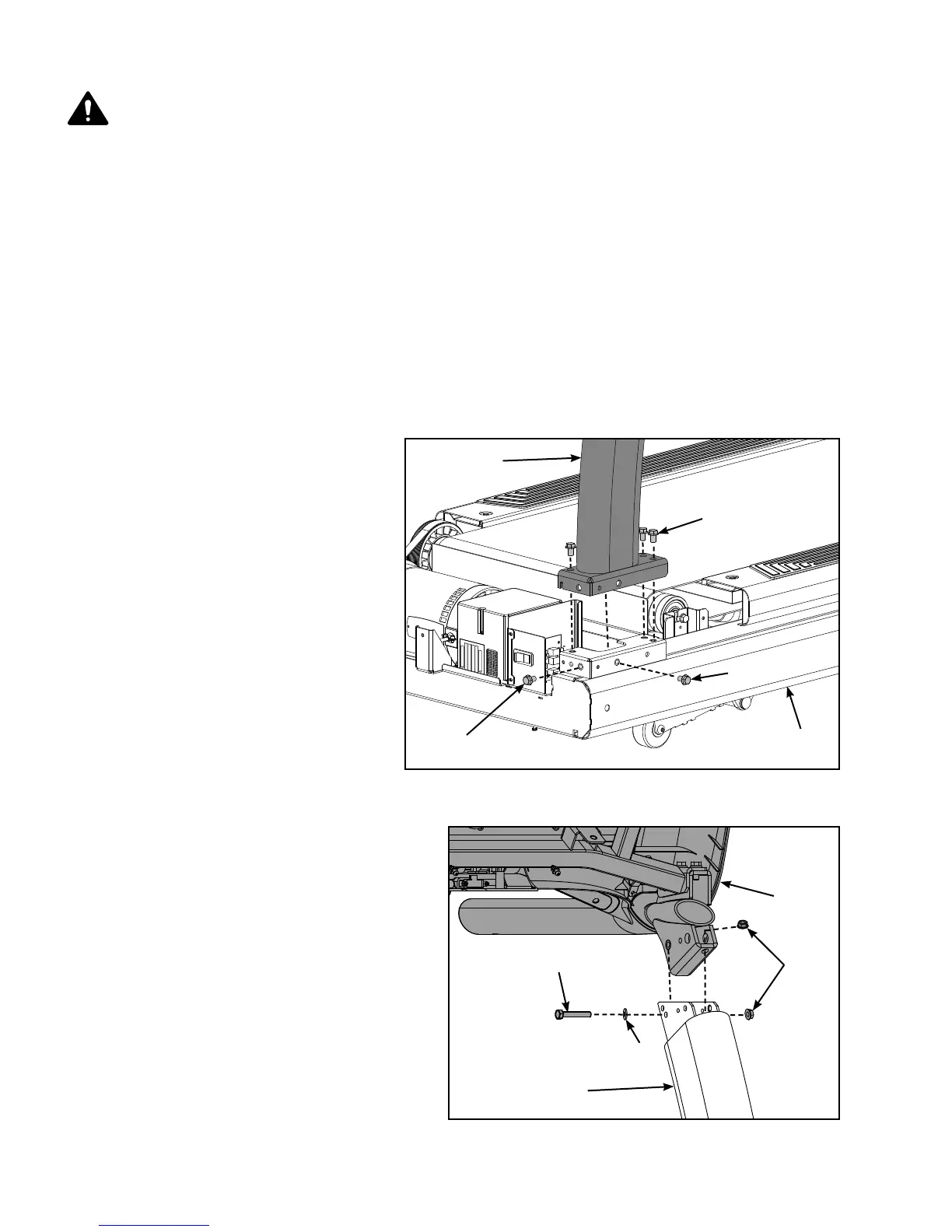

Figure 3
#3
#1
#20
#20
#20
#22
#3
Figure 4
#2
#24
#25

CYBEX 750T Specifications

General

Motor	3.0 HP
Incline Range	0% - 15%
Max User Weight	400 lbs
Heart Rate Monitoring	Wireless Receiver
Weight	350 lbs
