Cybex 750T Treadmill Owner’s Manual
Assembly
and
Setup
Page 2-4
Hardware
Item Qty Part Number Description
19 9 HS-16939 Screw, SEMS, 10-32 x .75”, PNHD, BLK
20 10 HS-16929 Bolt, Whiz Lock, 3/8-16 x .625”, HXHD
21 9 HS-15706 Screw, 8/16 x .50”, PNHD, STL, BLK
22 2 HS-41050 Bolt, 5/16-18 x 2.25”, HXHD
23 2 HS-20361 Screw, SLFTP, 8/16 x 2.5”, Plastite, BLK ZN
24 4 HN-42063 Nut, 5/16-18, Flanged, SS
25 2 HW-00189 Washer, Flat 5/16”

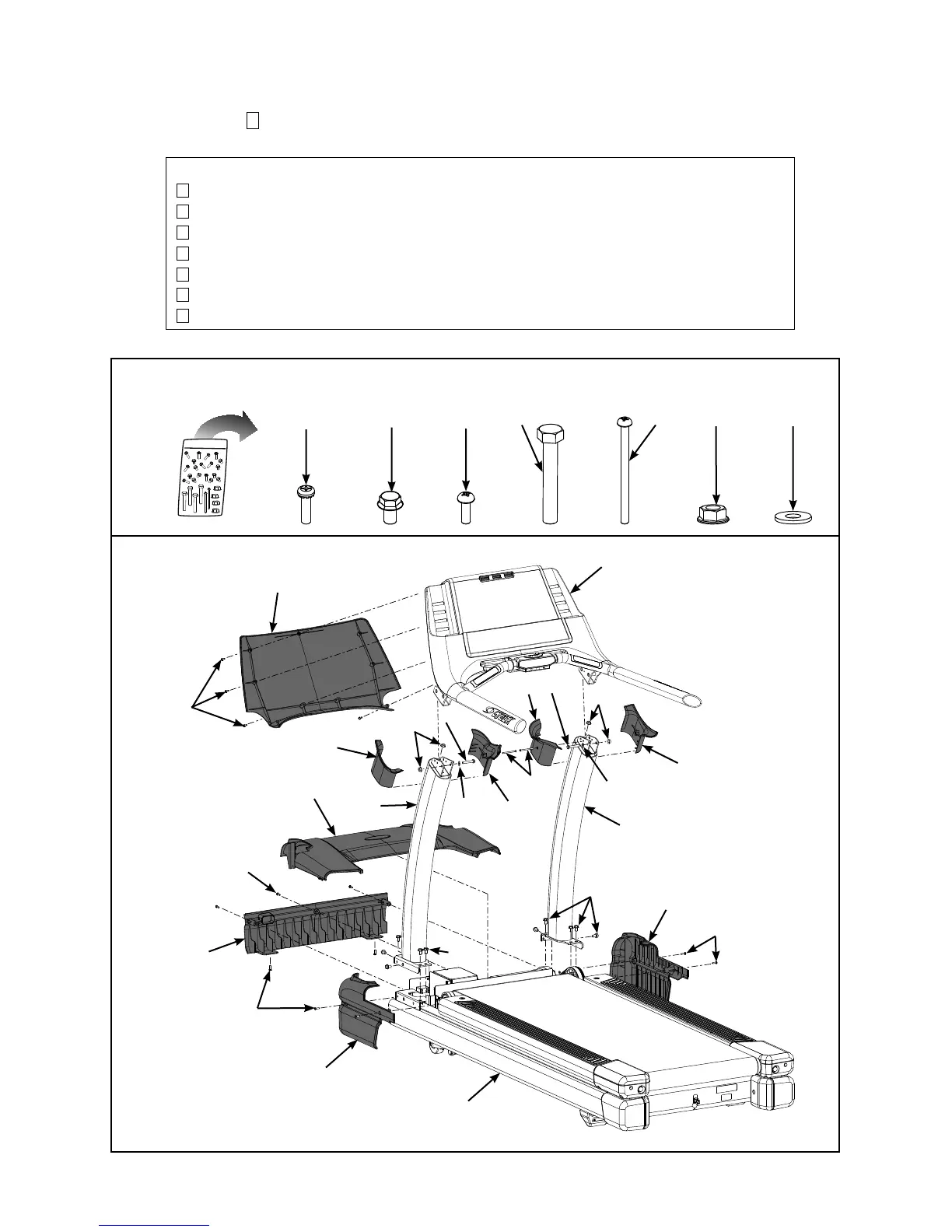

C. Check off () each item in the hardware pack as you fi nd it. See Figure 2.
#1
#19
#19
#19
#20
#20
#6
#12
#10
#9
#22
#19
#20
#22
#23
#2
#5
#22
#23
#11
#7
#8
#4
#3
#13
#21
Figure 2
#21
#24
#24
#24
#25
#25
#25
