Cybex 750T Treadmill Owner’s Manual
Assembly
and
Setup
Page 2-3
Item Qty Part Number Description
1 1 Varies Base assembly
2 1 Varies Console assembly
3 1 AF-19921 Upright, Left
4 1 AF-19922 Upright, Right
5 1 AX-20383 Motor cover, Top
6 1 PL-20264 Motor cover, Front
7 1 PL-20262 Motor cover, Left (in box)
8 1 PL-20263 Motor cover, Right (in box)
9 1 PL-20355 Upright cover, Outer, Left (in box)
10 1 PL-20211 Upright cover, Inner, Left (in box)
11 1 PL-20356 Upright cover, Inner, Right (in box)
12 1 PL-20357 Upright cover, Outer, Right (in box)
13 1 PL-20210 Console cover, Back
14 1 AX-20454 Hardware pack (in box)
15 1 LT-20406-4 Owner’s Manual (in box)
16 1 LT-20404 Assembly poster
17 1 LT-20405 Warranty sheet
18 1 AX-20552 Assembly, E-stop lanyard

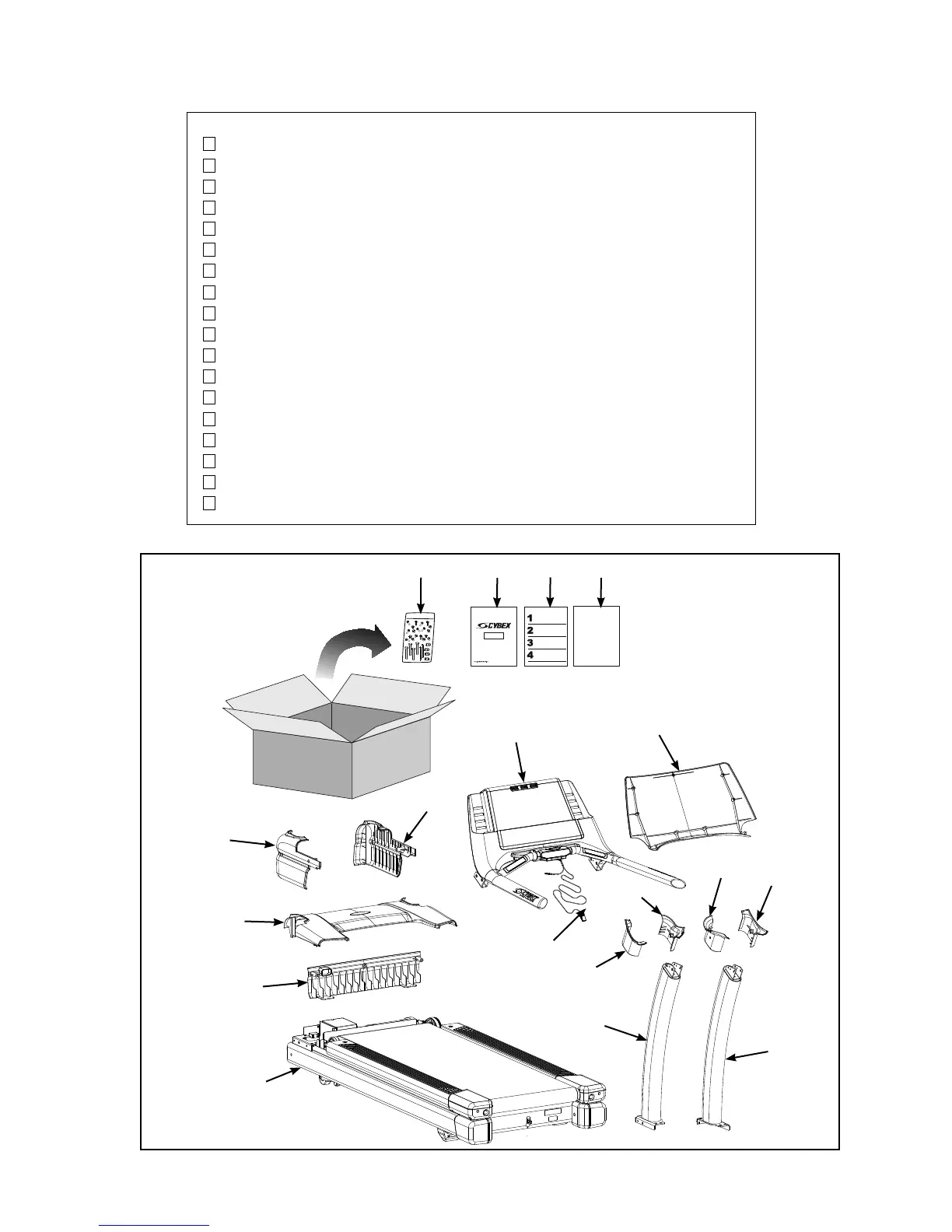

Figure 1
#1
#8
#7
#6
#5
#4
#2
#14
#15
#16
#17
#18
#3
#9
#10
#11
#12
#13
