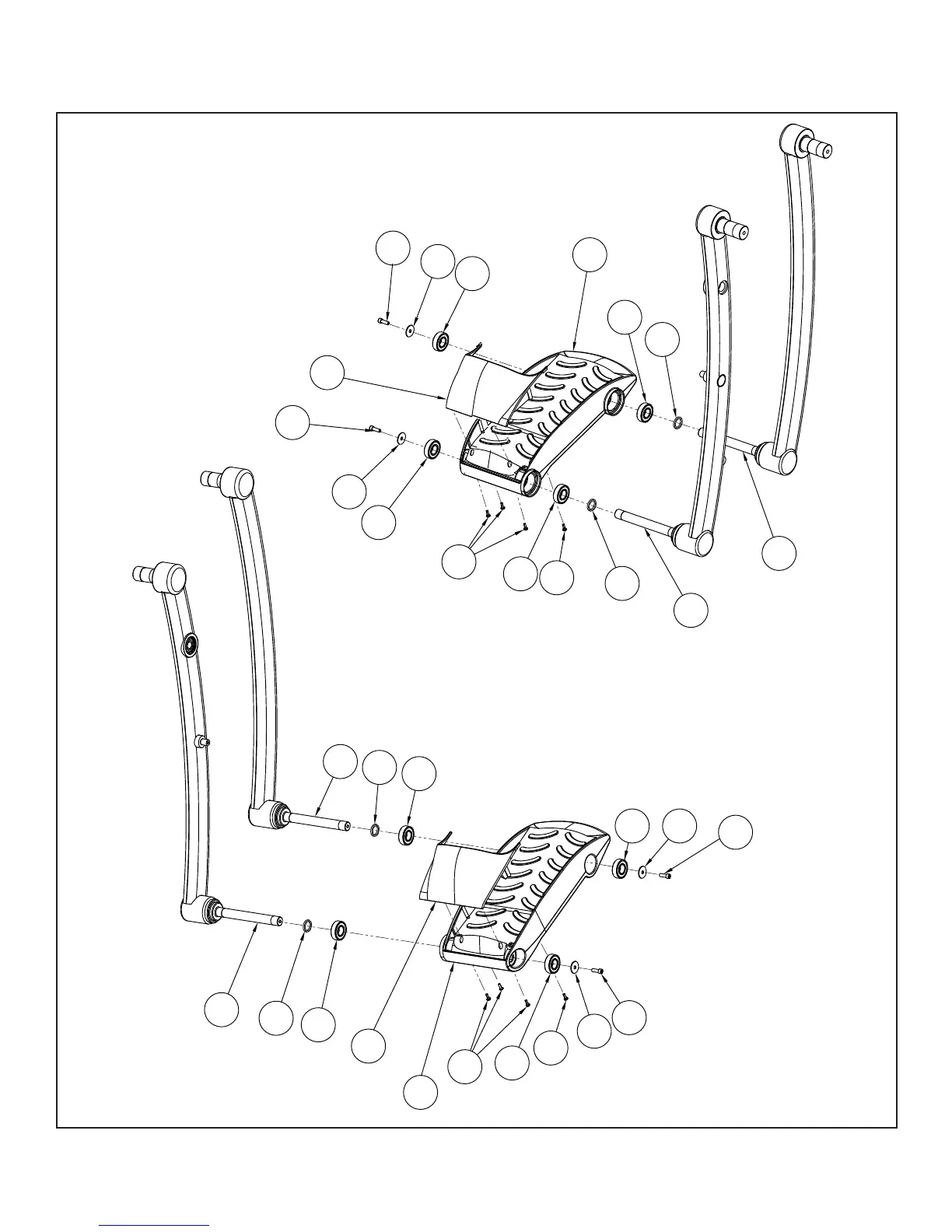

Cybex 750A/750AT Arc Trainer Owner’s Manual
Exploded Views
Page D–11
A30
A21
A80
A80
A65
A51
A51
A71
A71
A51
A75
A75
A51
A65
A71
A51
A75
A75
A65
A80
A80
A51
A31
A22
A51
A65
A71
A51
A90
A89
A90
A89
750A/750A
T FOOT PLA
TE
ASSEMBL
Y
86
88
Table of Contents
Default Chapter
5
Table of Contents
5
About this Manual
7
FCC Compliance Information
7
1 Safety
9
Grounding and Voltage Information
9
Important Safety Instructions
10
Warning and Caution Decals
12
CSAFE Ports
15
2 - Assembly and Set up
17
Warning and Caution
17
Choosing and Preparing a Site
17
Electrical Power Requirements
17
Unit Assembly
18
Trainer Parts & Overview
20
Testing Operation
31
Setup Screen
32
3 Operation
35
Intended Use
35
Terms Used
35
Mount and Dismount
36
Emergency Dismount
36
Range of Motion
37
Console Keys
38
Audio Visual (AV) Key Pad - Optional
40
Audio Visual (AV) Key Pad - Optional .. 3-6 Appendix C-Parts Lists
41
Program Selection
41
Programs P1 - P9 Setup
42
Manual and Quick Start Program Setup
42
Advanced Programs A1 - A2 Setup
42
Appendix E-Schematics
43
Custom Programs
43
Data Readouts
44
Fan Control
45
Heart Rate Indicator
45
Alarm Set
46
Battery Sentry
46
4 Preventive Maintenance
47
Warnings
47
Cleaning Unit
47
Preventive Maintenance Activities
48
Remove Access Cover
48
Attach Access Cover
48
Drive Belts
49
Recommended Service Schedule
49
Statistics
50
Error Codes
51
Rechargeable Battery
52
Environment
52
5 Customer Service
53
Contacting Service
53
Serial Number
53
Ordering Parts
54
Servicing Double-Insulated Products
54
Damaged Parts
55
Return Material Authorization (RMA)
55
Appendix A-Technical Specifications
57
Appendix B-Program Overviews
60
Appendix D-Exploded Views
78
Exploded Views
80
Other manuals for CYBEX Arc Trainer 750A
Owners Manual And Service Manual
78 pages
Service Manual
86 pages
4.5
Based on 2 ratings
