Rack Mounting Guidelines
AlterPath BladeManager Manual 2-7

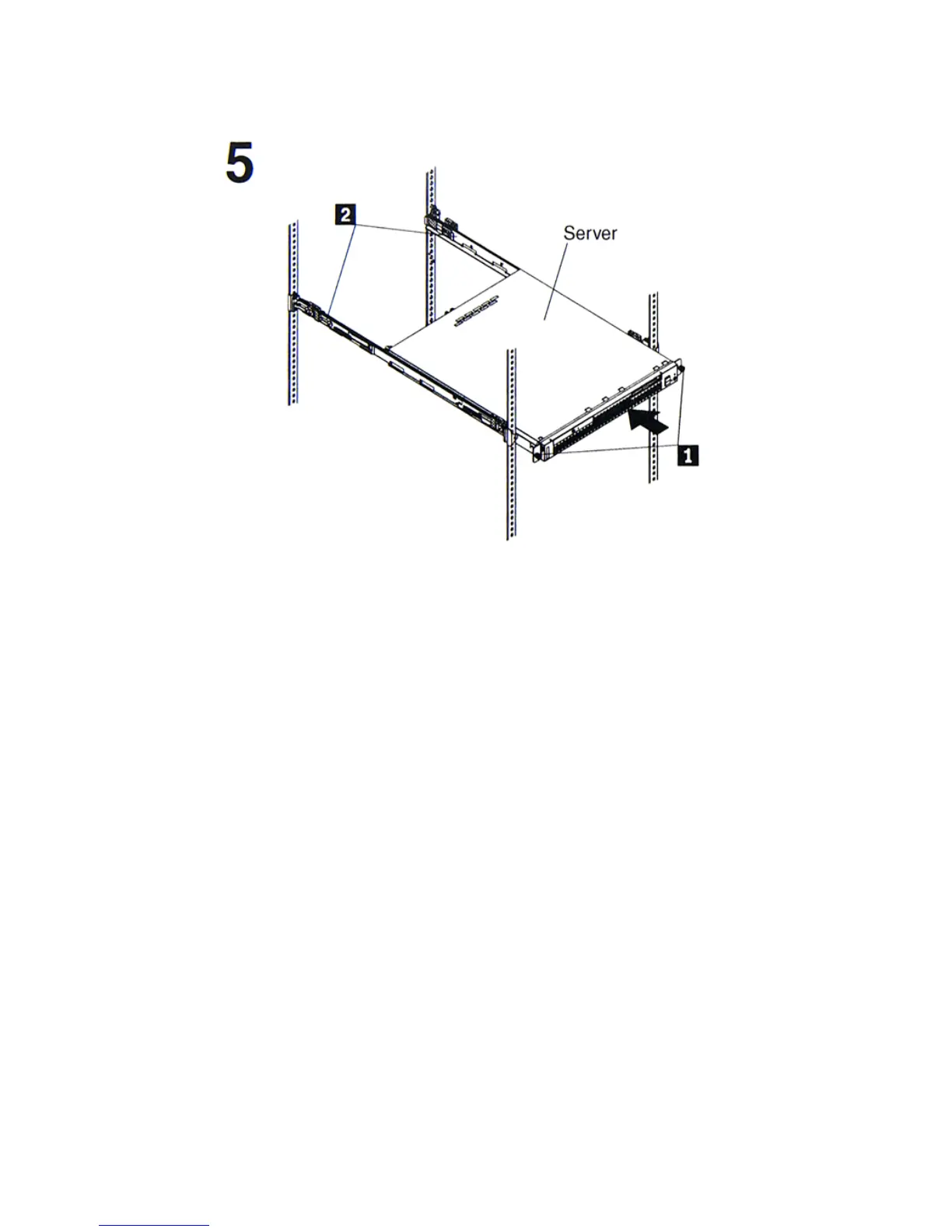

a. Align the server on the slide rails and push the server fully into the
rack cabinet. Secure the server to the front mounting flanges with the
captive thumbscrews (1).
Note: You must leave the shipping brackets (2) attached to the slide rails
unless the shipping brackets impede the server from sliding fully in the
rack cabinet. If you need to remove the shipping brackets, continue
with the next step.
