Major Components of the BladeManager
AlterPath BladeManager Manual 2-11

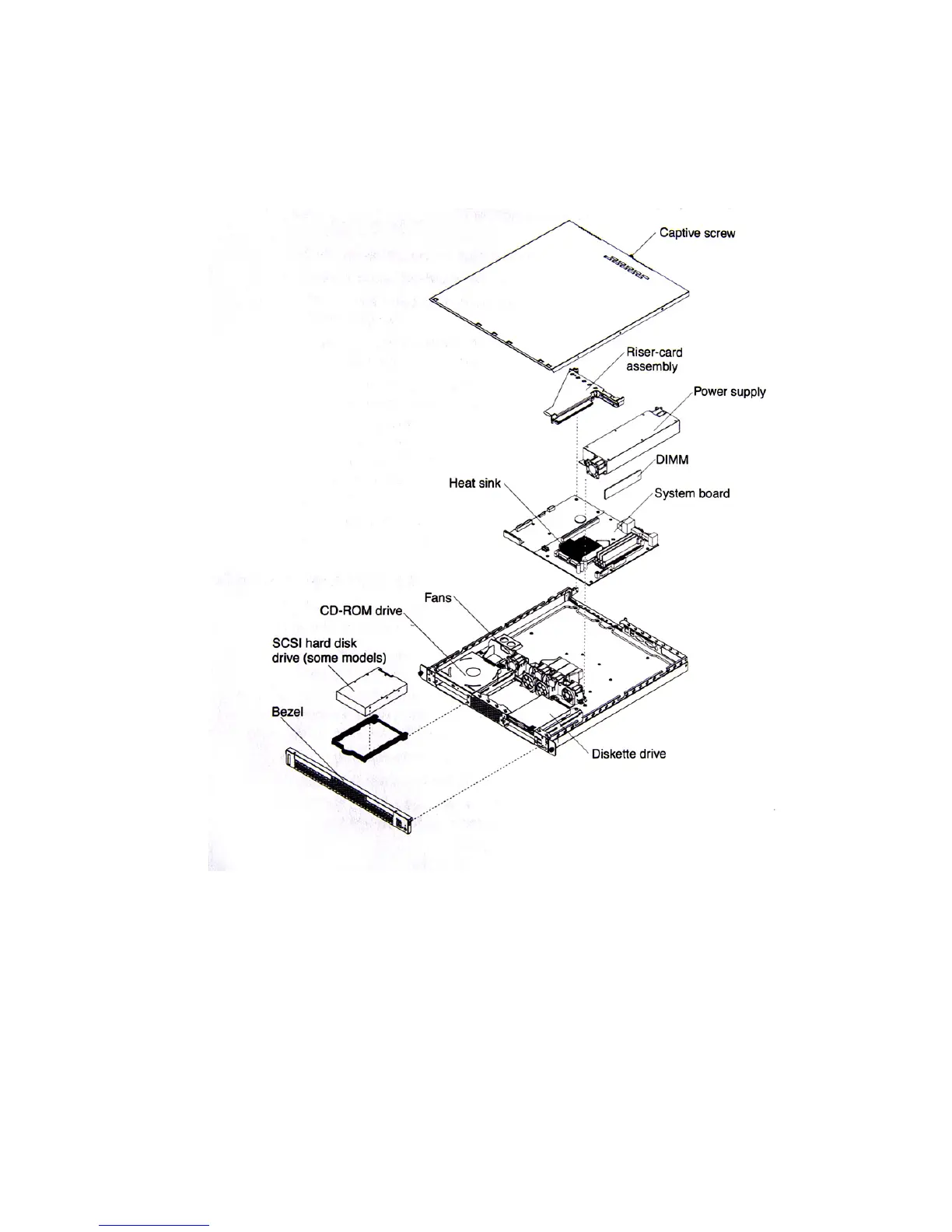

Major Components of the BladeManager
The BladeManager hardware platform is based on the IBM eServer 306. It’s
basic components are as follows:
• Blue on a component indicates touch points where you can hold the
component such as when you remove it from or install it in the server.
• Orange on or near a component indicates that you can hot-swap the
component (that is, you can remove or install the component while the
BladeManager is running).
• Orange can also indicate touch points on hot-swappable components.
