Cygnus 4 User Manual

M5-CYG4-M-01_Iss6.doc
Cygnus 4 Operating Manual
13

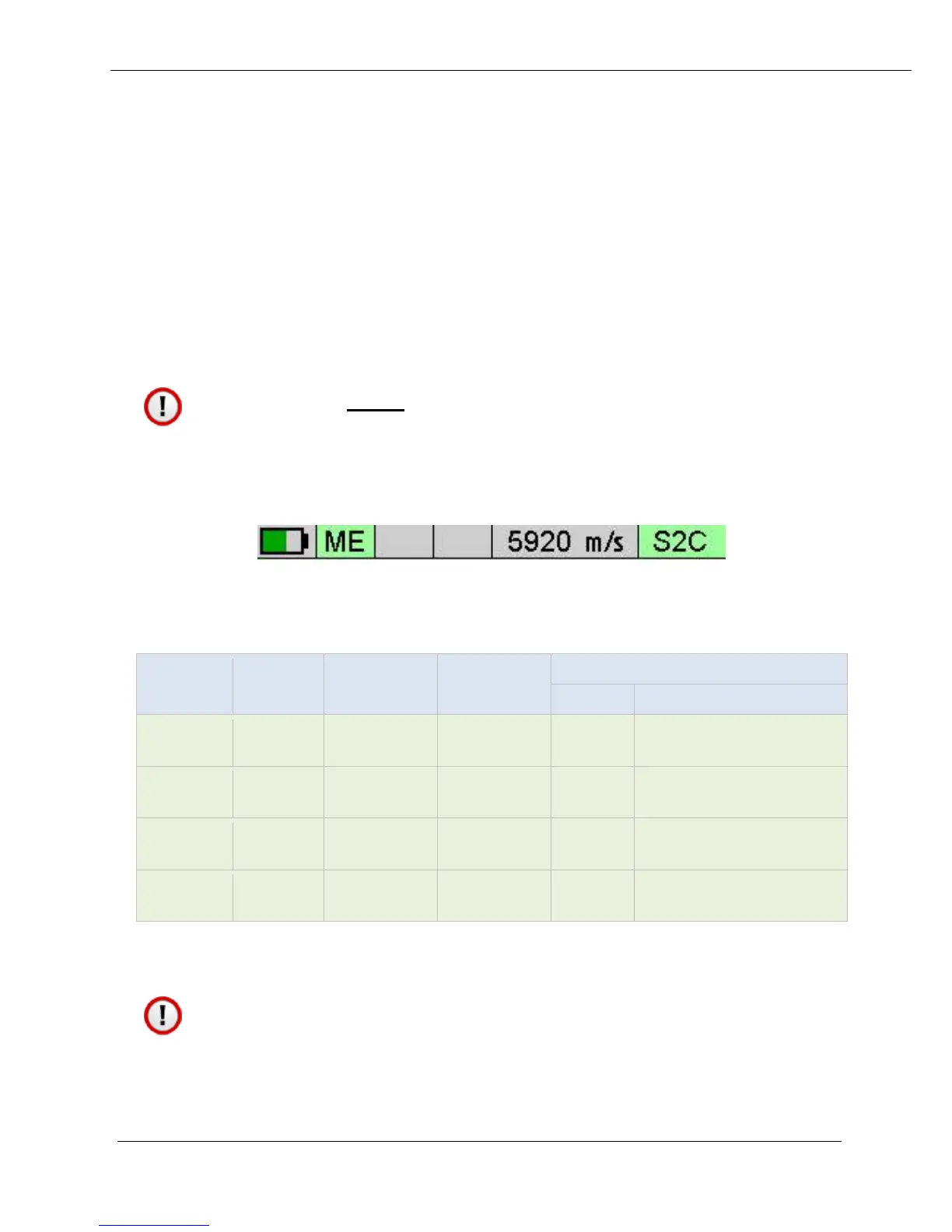

4. Selecting the Right Probe
The performance of any thickness gauge, and its ability to get a
reliable measurement depends on selecting the right ultrasonic
probe for the application and conditions. Cygnus gauges are
therefore offered with a selection of probes suitable for most
thickness gauging applications.
The following section helps you select the right probe for the
application.
The gauge must be set for the probe connected to it.
The probe type is displayed at the top of the measurement screen
in the status area.
Probe Type set to S2C.
Measuring Metals
Material Coating Corrosion Thickness
Recommended..
Probe
Measurement Mode
Steels
Any
Non to
Moderate
1 mm+
S5A
Multiple Echo
Steels
Any
Non to
Moderate
2 mm+
S3C
Multiple Echo
Steels
Any
Non to
Moderate
3 mm+
S2C
Multiple Echo
Steels
Any
Non to
Moderate
3 mm+
(0.12”+)
S2D
Multiple Echo
The S2C probe is suitable for most applications.
When measuring in Multiple Echo mode the coating will be
ignored and just the metal thickness measured.
