4 Operating Manu
al
M5
-
CYG4
-M-
01_Is
s6.doc
32
7.

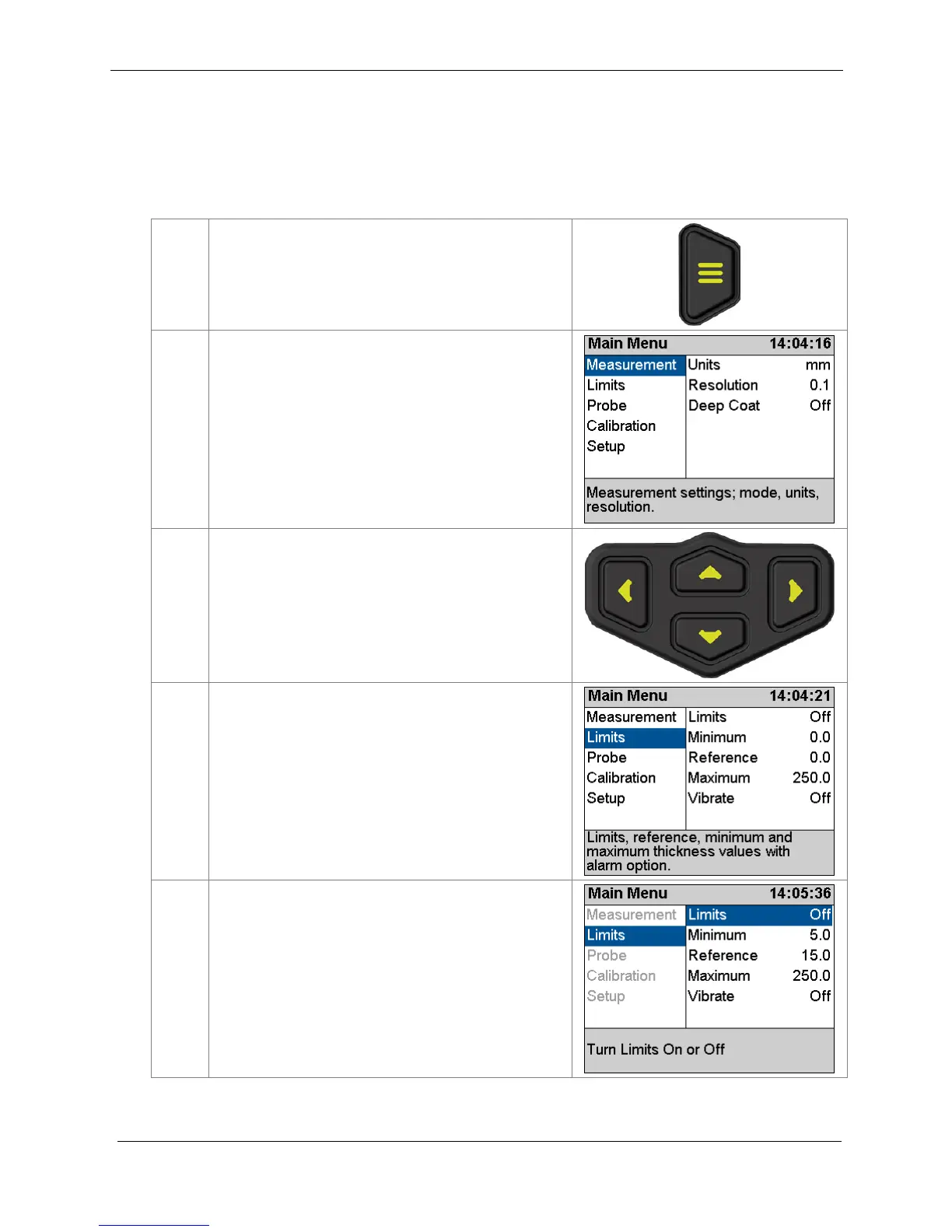

Gauge Setu
p
Menu
Op
erati
on
1.
Press the Menu k
ey
,
2.
the Main Menu is di
sp
layed
3.
Use t
he
four
Navigation
key
s
to
s
croll around the
Main Menu
4.
Use the Up and
Down keys to
select a group in the left
column..
5.
Press the Right k
ey to mov
e to
the items in that group i
n the
right column.
Then use the
Up and Down keys
to select from t
he
rig
ht col
um
n
31
33
Table of Contents
Default Chapter
1
Operating Manual
1
Table of Contents
3
1 Important Notice
6
2 Introduction
7
Cygnus 4 Thickness Gauge
7
Cygnus Instruments
8
Regional Offices
8
Gauge Kit Contents
9
3 Gauge Preparation
10
Fitting the Batteries
10
Connecting the Probe
11
Fitting the Neck Strap
11
4 Selecting the Right Probe
13
Measuring Metals
13
Measurement Modes Explained and Compared
14
Multiple Echo Mode (Mode 3)
14
Measuring Non-Steels
14
Measuring Non-Metals
14
Single Element Probes and Protective Membranes
15
Summary of Cygnus Probes
18
Single Element Probes
18
The 'Probe Type' Code
19
5 Gauge Operation
20
Gauge Controls
20
Turning the Gauge on
21
Turning the Gauge off
21
Automatic Power off
21
Status Information
22
Taking Thickness Measurements
22
Taking the Thickness Measurement
23
Echo Indicators in Multiple Echo Mode
23
Display Hold Function
24
Battery Life
25
Battery Level
25
Low Battery Indication
26
6 Calibration
27
Why Should I Calibrate My Thickness Gauge
27
Calibration Options
28
Calibrating to a Known Thickness (Single or 1 Point)
28
Setting the Velocity of Sound
30
7 Gauge Setup
32
Menu Operation
32
Settings Are Saved with the Probe Type
33
Changing Numeric Values Using the Navigation Keys
34
Selecting the Probe Type
35
Automatic Probe Detection
36
Measurement Units
37
Resolution Setting
37
Limit Functions
38
Deep Coat Function
41
8 Setup Menu
44
Vibrate Feature
44
Brightness Setting
44
Power off Setting
45
Set Time and Set Date
45
9 General Points on Thickness Gauging
47
10 Troubleshooting
48
The Gauge will Not Switch on
48
Difficulty Obtaining a Reading
48
If Readings Are Erratic or Unstable
48
Tips for Optimising Battery Life
48
11 Updating Your Gauge
50
Update Software
50
Gauge Firmware Files
50
12 Care and Servicing
51
Cleaning the Gauge
51
Batteries
51
Environmental
51
Repairs
51
Returning the Gauge for Servicing
52
13 Information
53
Technical Specifications
53
Table of Sound Velocities
56
Reading Conversions
57
14 EU Declaration of Conformity
58
15 Recycling and Disposal (EC Countries)
59
16 Warranty Information
60
