Cygnus 4 - Display Hold Function

Cygnus 4 Operating Manual
M5-CYG4-M-01_Iss6.doc
24
2.

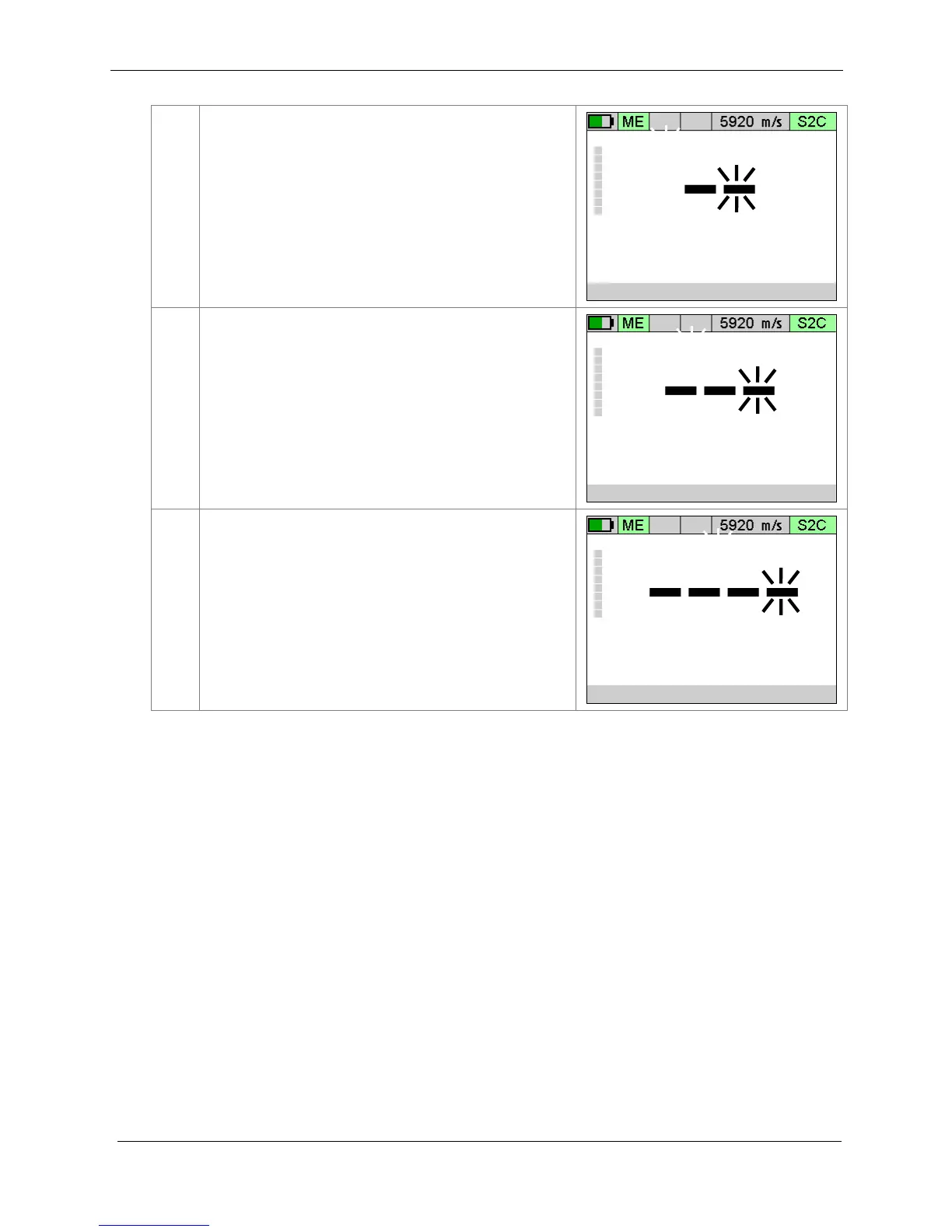

1 steady + 1 Bar Flashing:
Only 1 echo detected
3.
2 steady + 1 Bar Flashing:
Only 2 echoes detected
4.
3 steady + 1 Bar Flashing:
3 echoes detected but they are
not matched
To help obtain a multiple echo reading the operator should
continue to move the probe around to locate a suitable reflector,
using a slight rocking motion.
Display Hold Function
The thickness measurement can be ‘Held’ or frozen by simply
pressing the X/Cancel key while in the measurement screen.
