The Web Manager allows packets received by the Switch, arranged in six groups and classed by size,
to be viewed as either a line graph or a table. Two windows are offered.

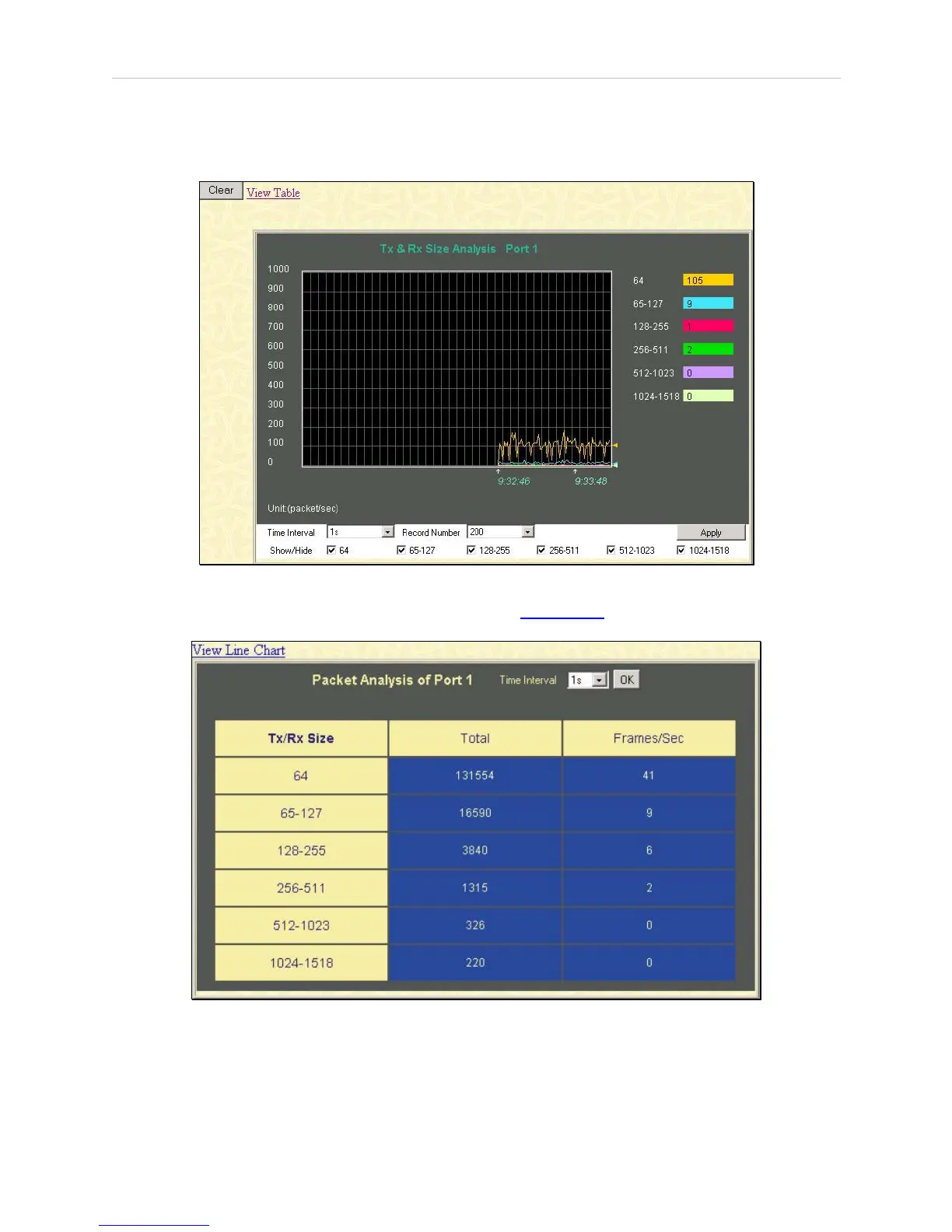

Figure 8- 13. Rx Size Analysis window (line graph)
To view the Packet Size Analysis Table, click the link View Table, which will show the following
table:
Figure 8- 14. Rx Size Analysis window (table)
The following fields can be set or viewed:
