Multicast Group
The IP address of the multicast group.
MAC Address
The MAC address of the multicast group.
Port Map
These are the ports where the IGMP packets were snooped are displayed.
VLAN Status
This allows the VLAN status for each of the Switch's ports to be viewed by VLAN. This window
displays the ports on the Switch that are currently Egress or Tag ports. To view the following table,
open the Monitoring folder and click the VLAN Status Link.

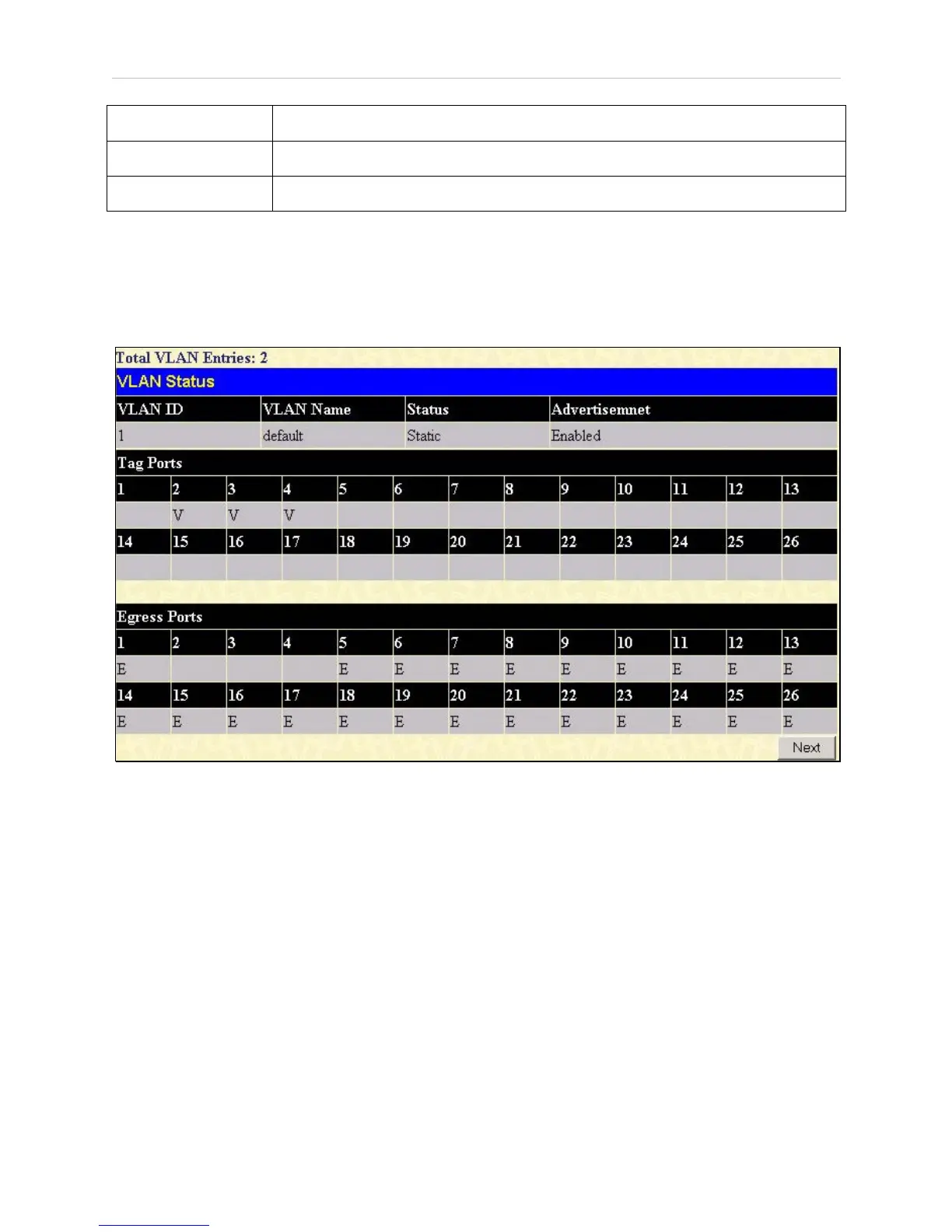

Figure 8- 19. VLAN Status window
Router Port
This displays which of the Switch's ports are currently configured as router ports. A router port
configured by a user (using the console or Web-based management interfaces) is displayed as a static
router port, designated by S. D designates a router port that is dynamically configured by the Switch.
To view the following window, open the Monitoring folder and click the Router Port link.
