DES-3526 / DES-3526DC Fast Ethernet Layer 2 Switch
7
Gigabit Combo Ports
In addition to the 24 10/100 Mbps ports, the Switch features two Gigabit Ethernet Combo ports. These
two ports are 1000BASE-T copper ports (provided) and Mini-GBIC ports (optional). See the diagram
below to view the two Mini-GBIC port modules being plugged into the Switch. Please note that
although these two front panel modules can be used simultaneously, the ports must be different. The
GBIC port will always have the highest priority.

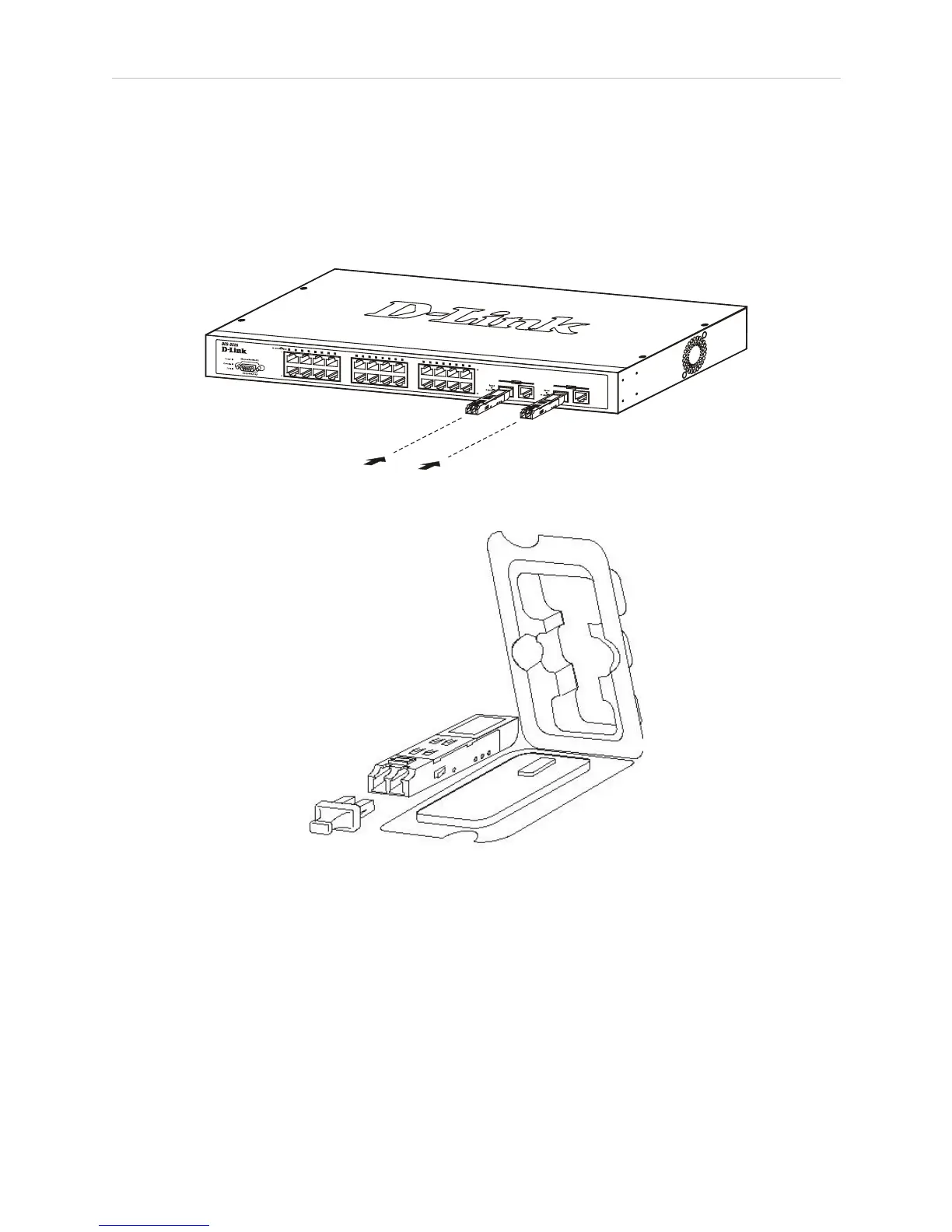

Figure 1- 7. Mini-GBIC modules plug-in to the Switch
Figure 1- 8. Installing the Mini-GBIC Module
