DES-3526 / DES-3526DC Fast Ethernet Layer 2 Switch
114

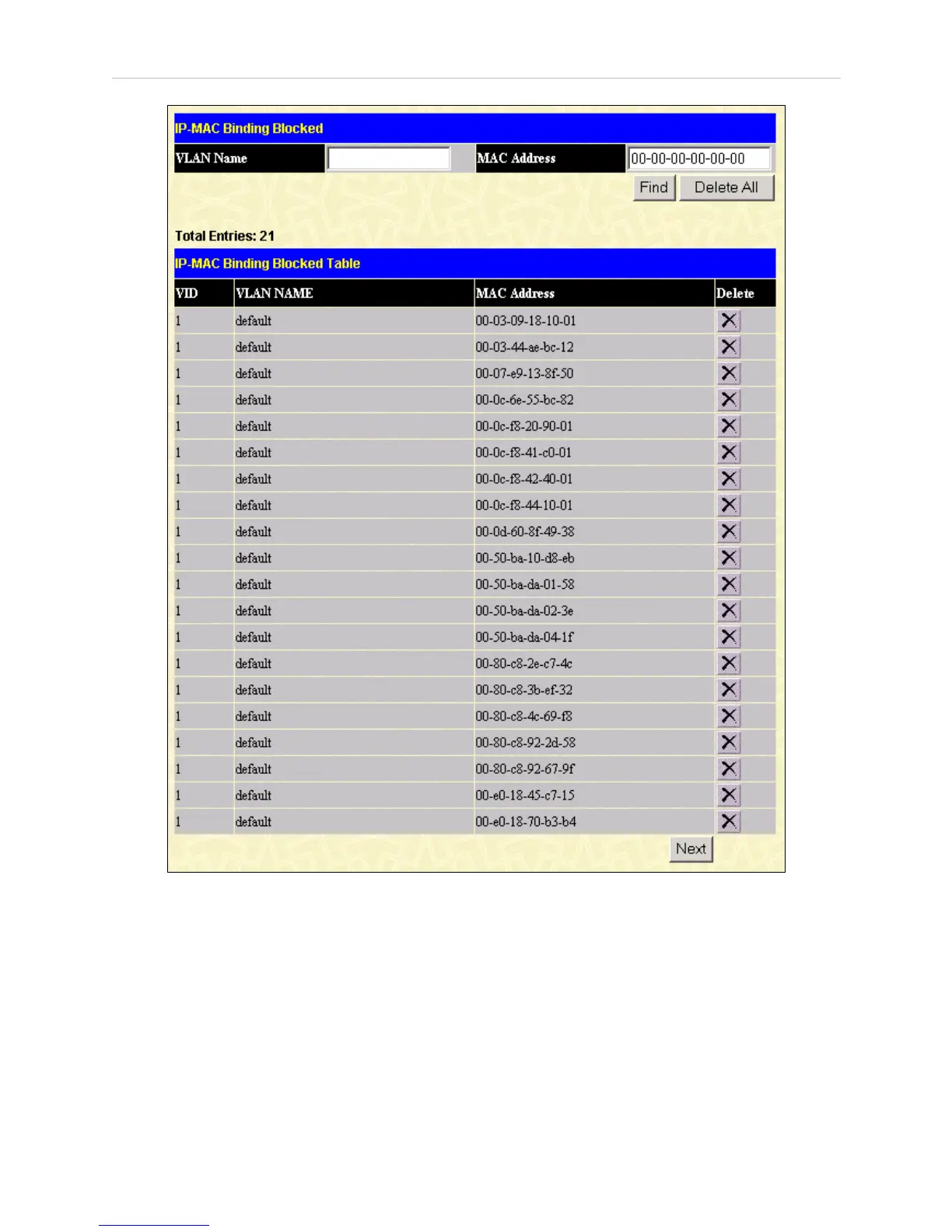

Figure 6- 82. IP-MAC Binding Blocked window
To find an unauthorized device that has been blocked by the IP-MAC binding restrictions, enter the
VLAN name and MAC Address in the appropriate fields and click Find. To delete an entry click the
delete button next to the entry’s MAC address. To delete all the entries in the IP-MAC Binding
Blocked Table click Delete All.
Limited IP Multicast Range Settings
The Limited IP Multicast Range window allows the administrator to permit or deny access a port or
range of ports by specifying a range of multicast addresses. Click Configuration > Limited IP
Multicast Range to open the Limited IP Multicast Range window shown below:
