DES-3526 / DES-3526DC Fast Ethernet Layer 2 Switch
192

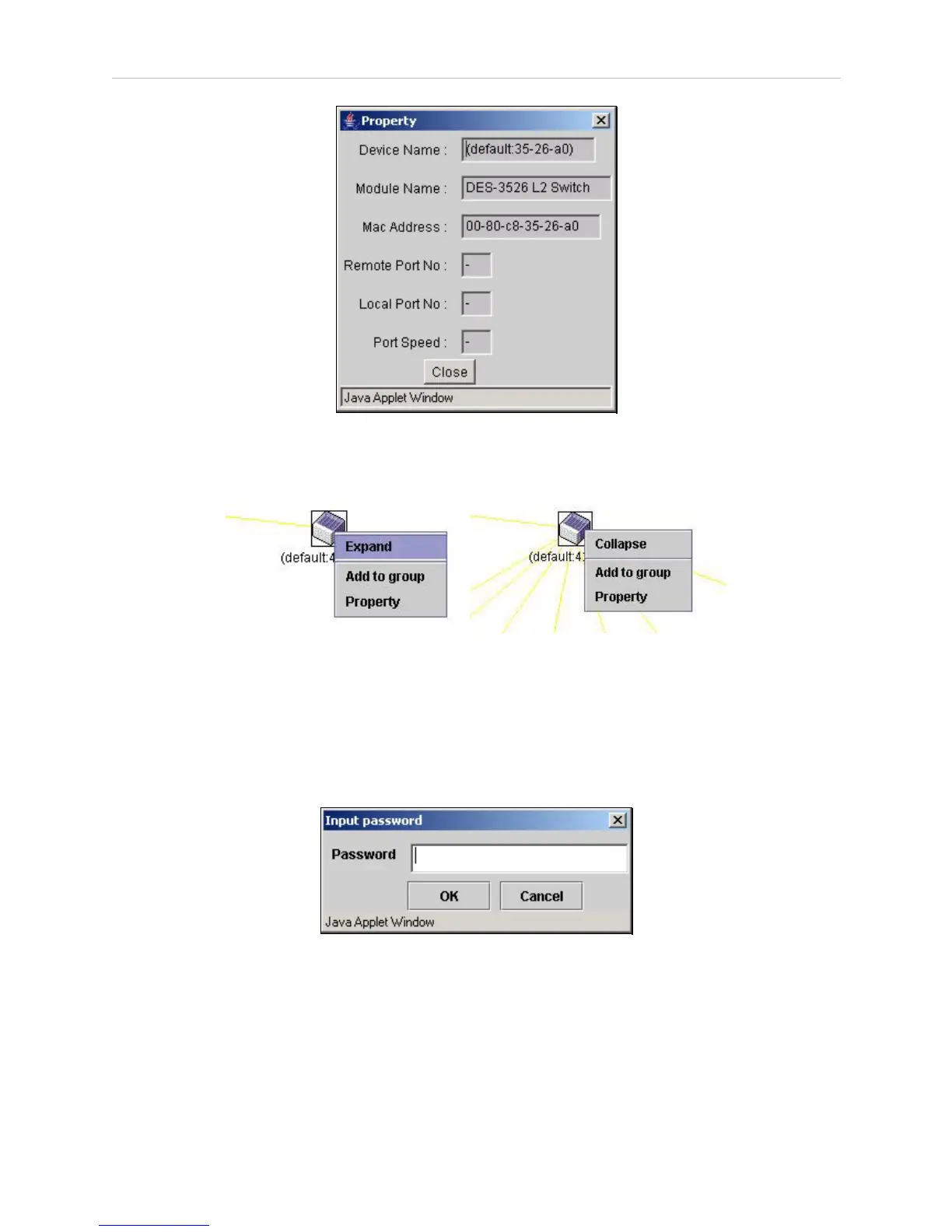

Figure 10- 13. Property window
Candidate Switch Icon
Figure 10- 14. Right-Clicking a Candidate icon
The following options may appear for the user to configure:
• Collapse - to collapse the group that will be represented by a single icon.
• Expand - to expand the SIM group, in detail.
• Add to group - add a candidate to a group. Clicking this option will reveal the following dialog box for the user
to enter a password for authentication from the Candidate Switch before being added to the SIM group. Click
OK to enter the password or Cancel to exit the window.
Figure 10- 15. Input password dialog box
• Property - to pop up a window to display the device information, as shown below.
