DES-3526 / DES-3526DC Fast Ethernet Layer 2 Switch
66

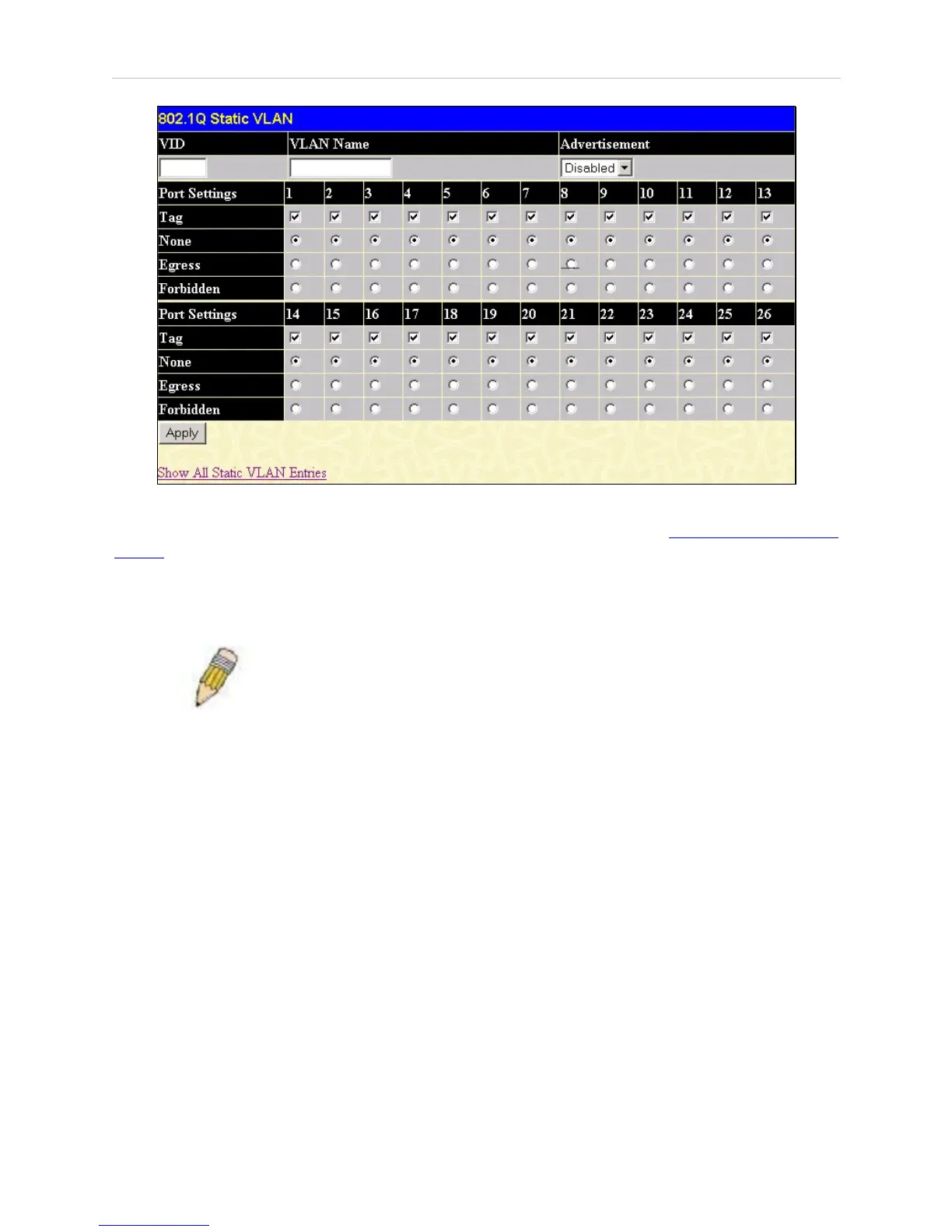

Figure 6- 37. 802.1Q Static VLAN window - Add
To return to the Current 802.1Q Static VLANs Entries window, click the Show All Static VLAN
Entries link. To change an existing 802.1Q VLAN entry, click the Modify button of the corresponding
entry you wish to modify. A new menu will appear to configure the port settings and to assign a
unique name and number to the new VLAN. See the table below for a description of the parameters in
the new menu.
NOTE: The Switch supports up to 255 static VLAN entries.
