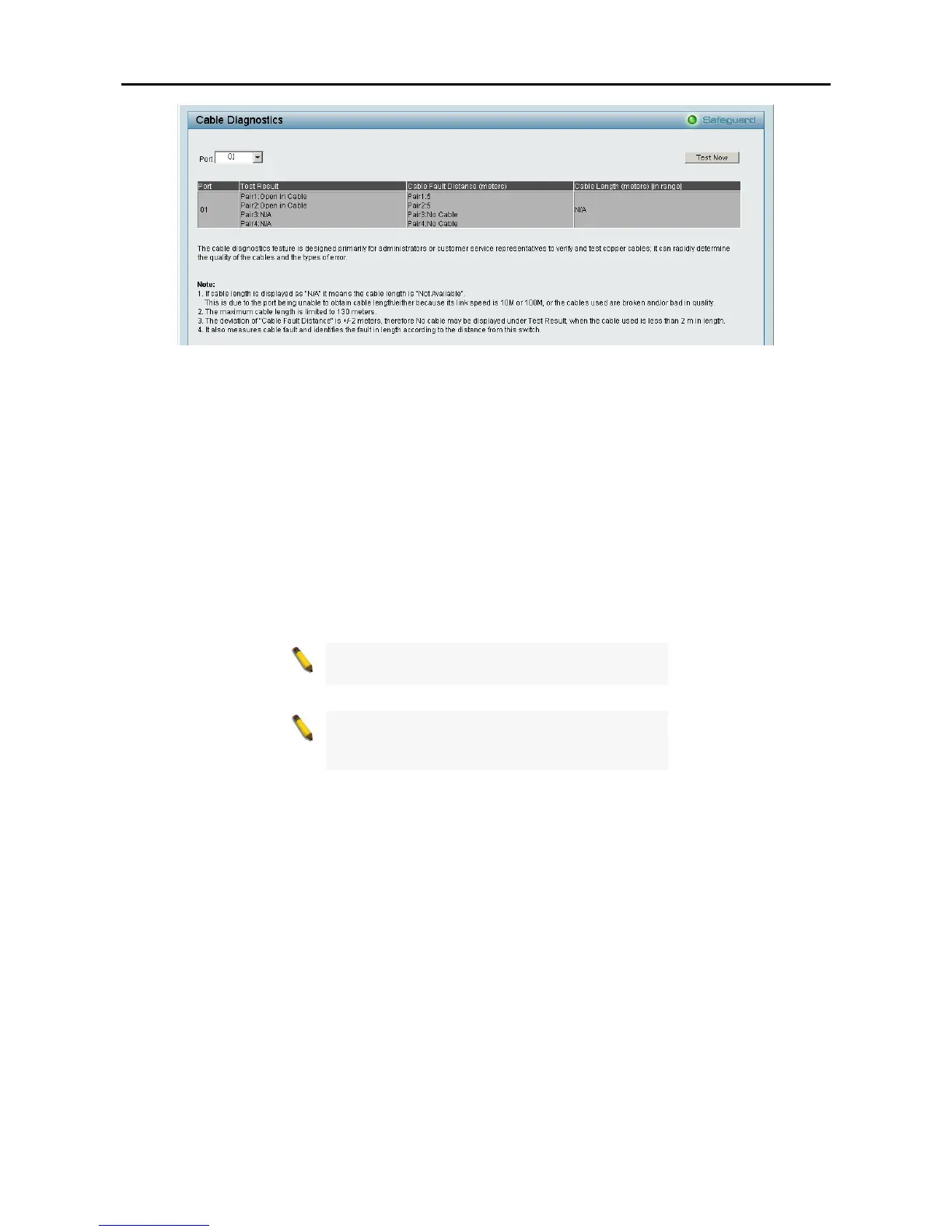

Figure 74 – Monitoring > Cable Diagnostic
Test Result: The description of the cable diagnostic results.
OK means the cable is fine
Short in Cable means the lines of the RJ45 cable maybe in contact somewhere
Open in Cable means the lines of RJ45 cable maybe broken or the other end of the cable is simply
disconnected.
Test Failed means some other errors occured during cable diagnostics. Please select the same port and
test again.
Cable Fault Distance (meters): Indicates the distance of the cable fault from the Switch port, if the cable is
less than 2 meters, it will show “No Cable”.
Cable Length (meter): If the test result shows the cable is OK, cable length indicates the total length of the
cable. The cable lengths are categorized into four types: <50 meters, 50~80 meters, 80~100 meters and
>100 meters.
