D-Link DIR-890L User Manual

15D-Link DIR-890L User Manual
Section 3 - Conguration

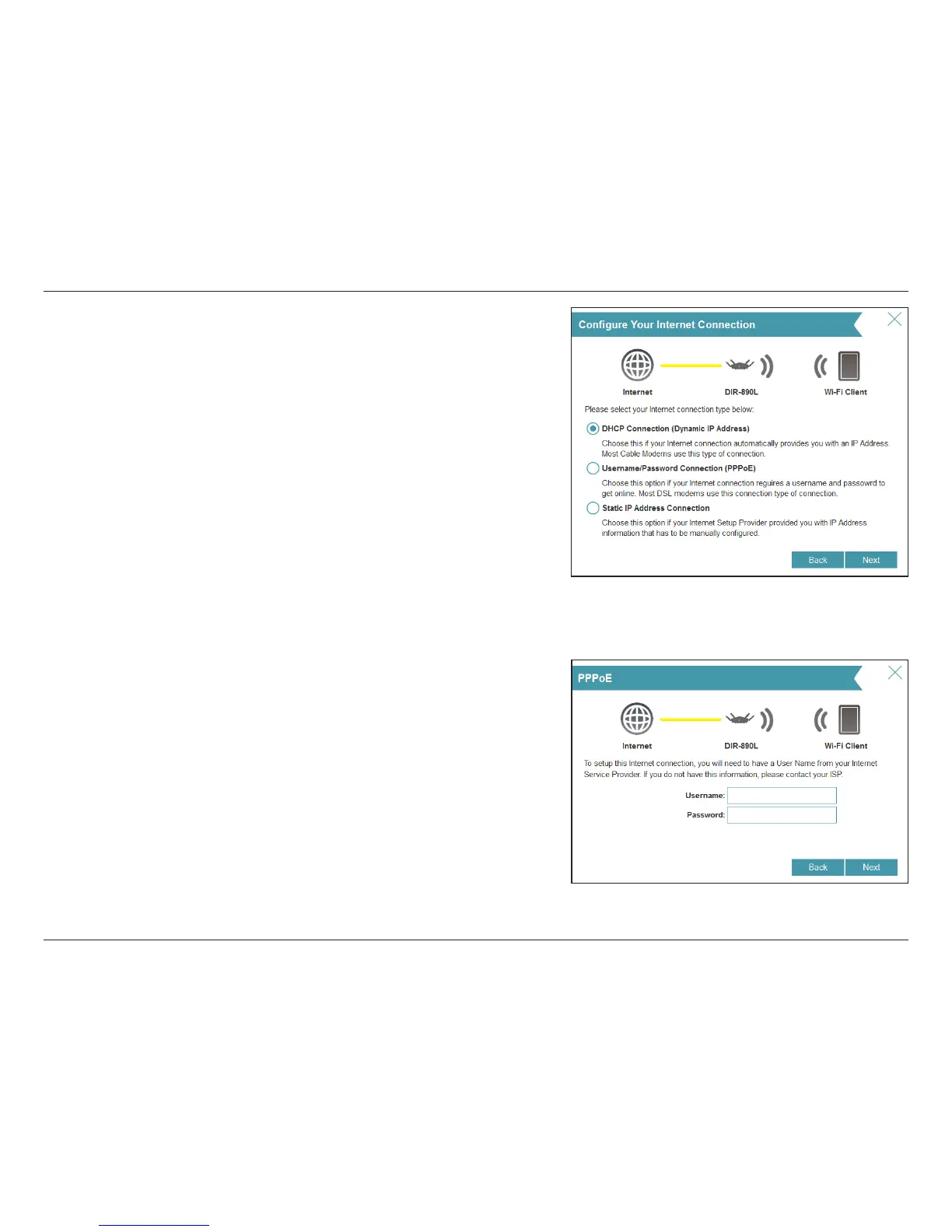

If the router does not detect the type of Internet connection you have, a
list of connection types will be displayed. Select your Internet connection
type (this information can be obtained from your Internet Service Provider).
You can select DHCP Connection (Dynamic IP Address) if your Internet
connection automatically provides you with an IP address.
Click Next to continue.
If the router detected PPPoE or you selected Username/Password
Connection (PPPoE), enter your PPPoE username and password and click
Next to continue.
Note: Make sure you remove your PPPoE software from your computer. The
software is no longer needed and will not work through a router.

D-Link DIR-890L Specifications

General

VPN support	PPTP/L2TP/IPsec
Ethernet LAN	Yes
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
Wi-Fi band	Tri-band (2.4 GHz / 5 GHz / 5 GHz)
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)	3200 Mbit/s
WLAN data transfer rate (first band)	600 Mbit/s
WLAN data transfer rate (second band)	1300 Mbit/s
USB version	2.0/3.2 Gen 1 (3.1 Gen 1)
Input current	5 A
Rack mounting	No
Frequency band	2.4 & 5 GHz
USB ports quantity	2
WLAN data transfer rates supported	600, 1300 Mbit/s
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN (RJ-45) ports	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
DHCP client	-
Antennas quantity	6
Security algorithms	WPA, WPA2, WPS
Product type	Tabletop router
Product color	Red
Certification	IC\\r CE\\r Wi-Fi Certified\\r FCC
Output voltage	12 V
AC input voltage	100 - 240 V
Power source type	DC
AC input frequency	50 - 60 Hz
Storage temperature (T-T)	-20 - 65 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	0 - 90 %

Weight and Dimensions

Depth	387 mm
Width	247.3 mm
Height	119.5 mm
Weight	- g
